Description

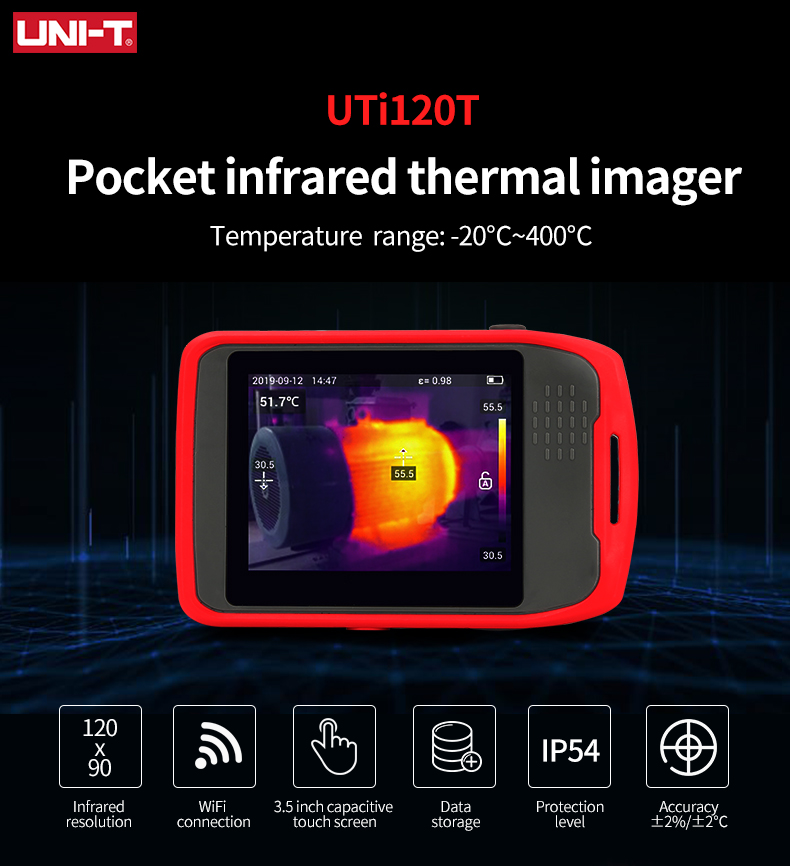

UTi120T Thermal Imager
Advantages of thermal imager detection:
1. Intuitive, efficient and convenient, making users directly "see" the temperature
variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgment
3. Avoiding judgment errors, reducing labor costs, and discovering poor heat dissipation and hidden trouble points
4. PC software for data analysis and report output
variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgment
3. Avoiding judgment errors, reducing labor costs, and discovering poor heat dissipation and hidden trouble points
4. PC software for data analysis and report output
|

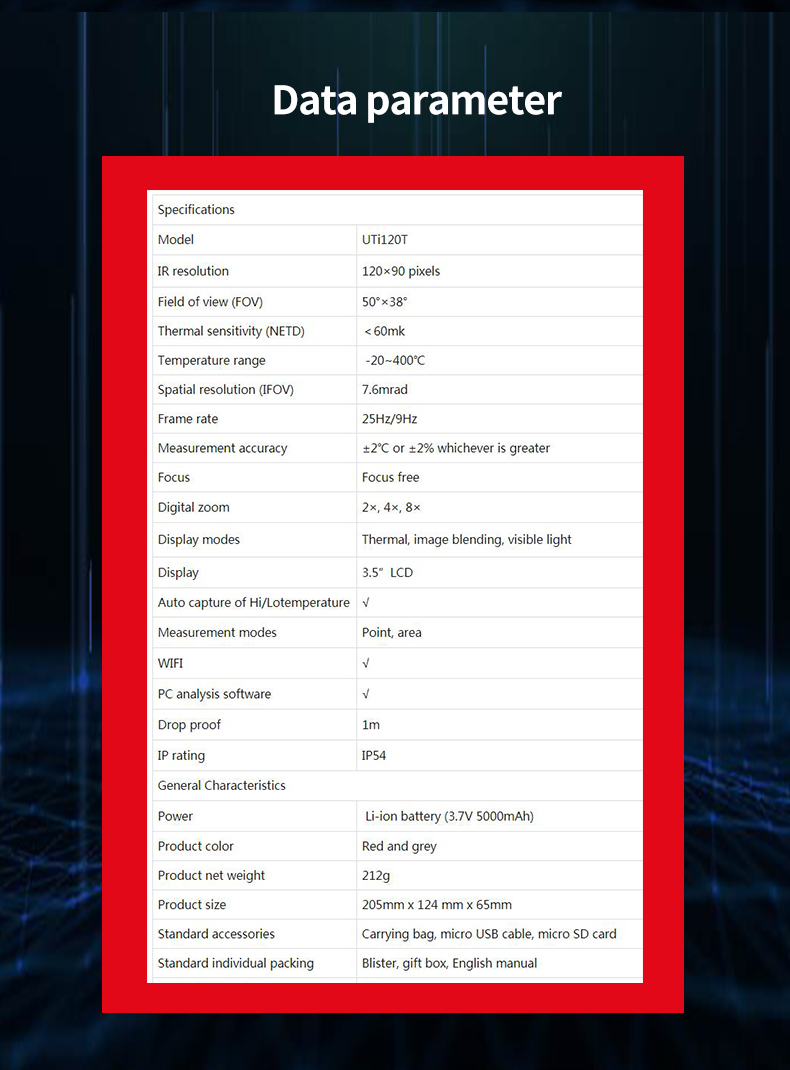

Specifications
|
||||
|
Model
|
UTi80P
|
UTi80
|
UTi120T
|
UTi165A
|
|
IR resolution
|
80×60 pixels
|
80×60 pixels
|
120×90 pixels
|
160×120 pixels
|
|
Field of view (FOV)
|
51° horizontal
|
51° horizontal
|
50°×38°
|
56°×42°
|
|
Thermal sensitivity (NETD)
|
≤150mk (0.15℃)
|
≤150mk
|
＜60mk
|
≤150mk (0.15℃)
|
|
Temperature range
|
-10~400℃
|
-30~400℃
|
-20~400℃
|
-10~400℃
|
|
Spatial resolution (IFOV)
|
11mrad
|
11mrad
|
7.6mrad
|
11mrad
|
|
Frame rate
|
≤9Hz
|
≤9Hz
|
25Hz/9Hz
|
＜9Hz
|
|
Measurement accuracy
|
±2℃ or ±2% whichever is greater
|
|||
|
Focus
|
|
|
Focus free
|
Focus free
|
|
Digital zoom
|
|
|
2×, 4×, 8×
|
|
|
Display modes
|
Thermal
|
Thermal, image blending, visible light
|
Thermal
|
|
|
Display
|
2.4”TFT LCD
|
2.4”TFT LCD
|
3.5”LCD
|
2.8”LCD
|
|

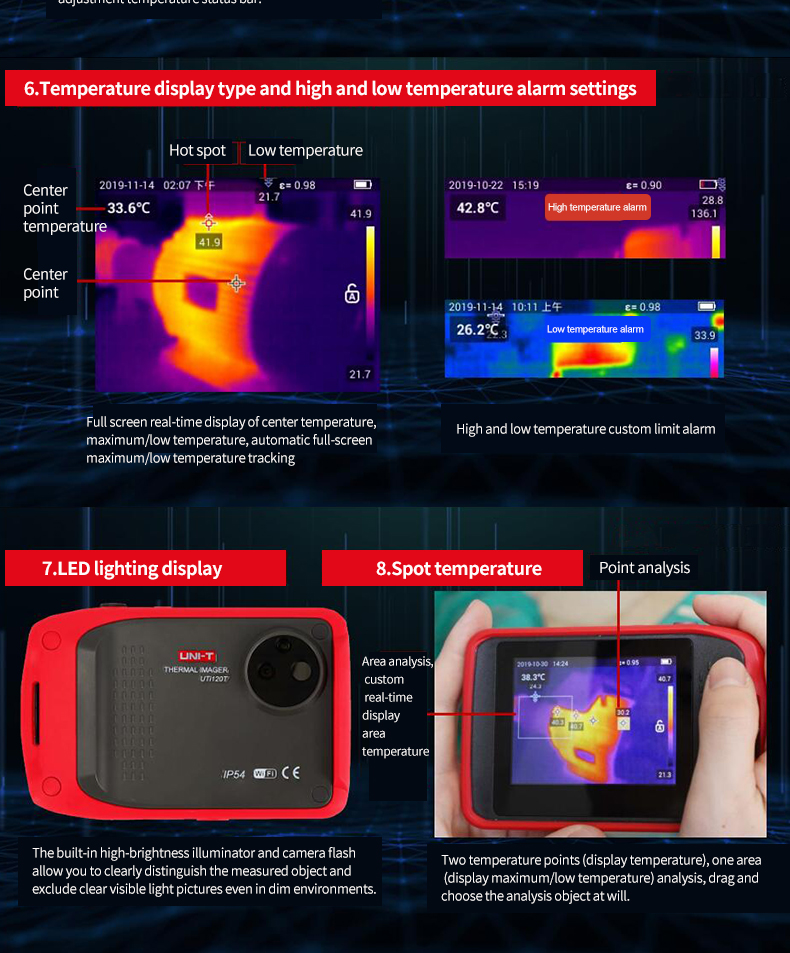

Auto capture of Hi/Lotemperature
|
√
|
√
|
√
|
√
|
|
Measurement modes
|
Point, area
|
Point, area
|
Point, area
|
|
|
WIFI
|
|
|
√
|
|
|

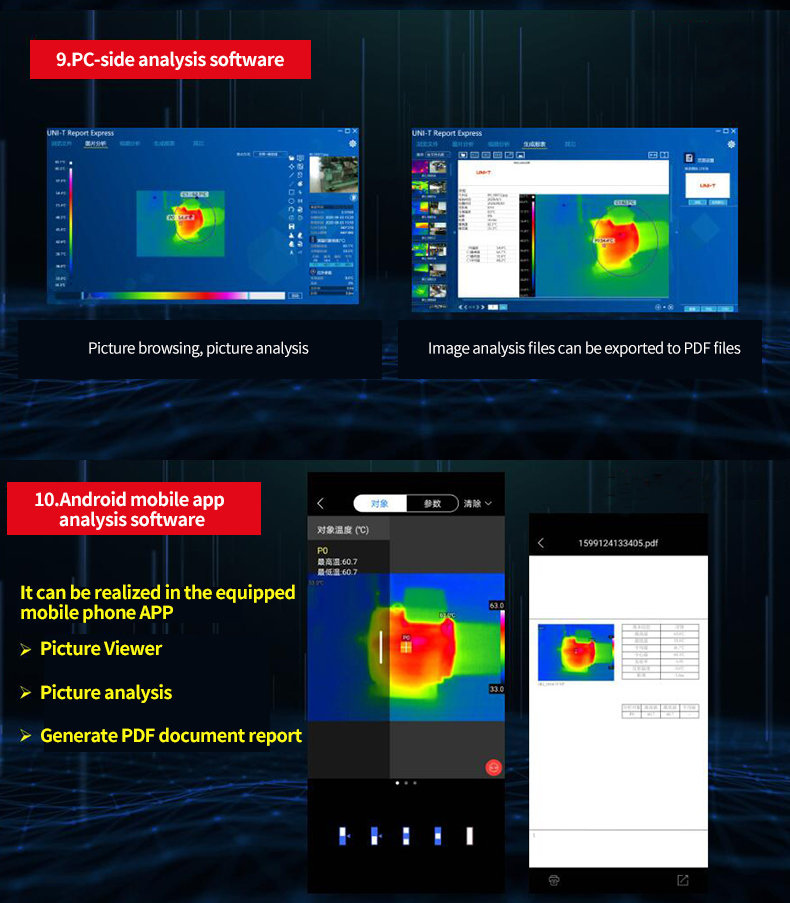

PC analysis software
|
√
|
|
√
|
√
|
|
Drop proof
|
1m
|
1m
|
1m
|
2m
|
|
IP rating
|
|
|
IP54
|
IP65
|
|
General Characteristics
|
||||
|
Power
|
UTi80: Li-ion battery (3.7V 2600mAh); UTi80P: Li-ion battery (3.7V 1300mAh); UTi120T/UTi165A: Li-ion battery (3.7V 5000mAh)
|
|||
|
Product color
|
Red and grey
|
|||
|
Product net weight
|
UTi80: 370g; UTi80P: 125g; UTi120T: 212g; UTi165A: 455g
|
|||
|
Product size
|
UTi80: 205mm x 124 mm x 65mm; UTi80P: 76mm x 76 mm x 22mm;UTi120T: 205mm x 124 mm x 65mm; UTi165A: 236mm x 75.5 mm x 86mm
|
|||
|

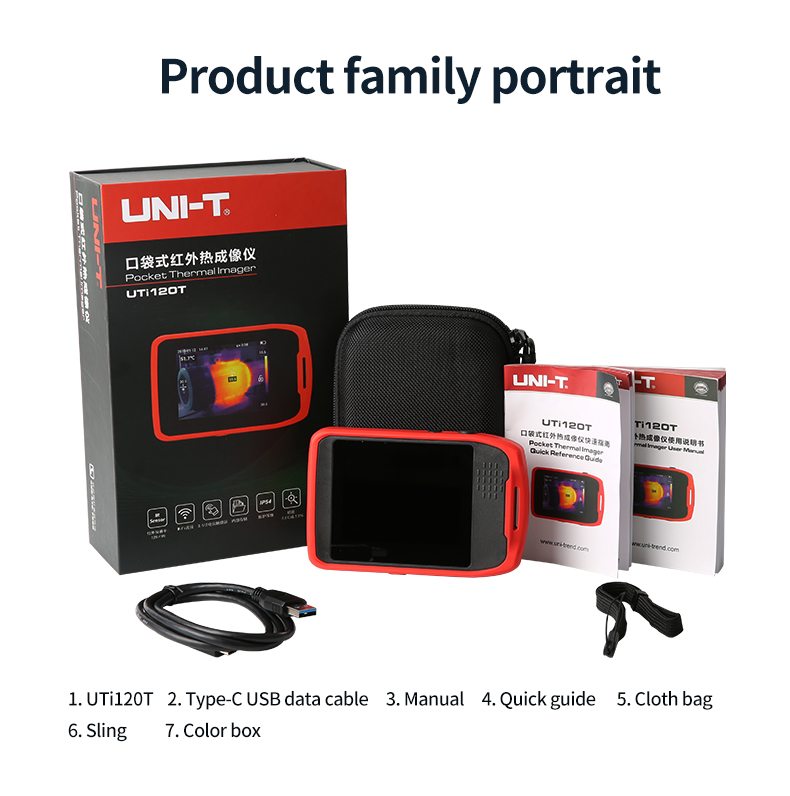

Standard accessories
|
Carrying bag (UTi80/80P/120T) , micro USB cable, micro SD card, Type-C USB cable (UTi165A)
|
|||
|
Standard individual packing
|
Blister, gift box, English manual
|
|||
|
Standard quantity per carton
|
UTi80/UTi80P/UTi120T: 5pcs; UTi165A: 5pcs
|
|||
|
Standard carton measurement
|
UTi80: 575mm x 380 mm x 220mm; UTi80P: 455mm x 145mm x 150mmUTi120T: 387mm x 246mm x 166mm; UTi165A: 650mm x 355 mm x 180mm
|
|||
|
Standard carton gross weight
|
UTi80: 5.3kg; UTi80P: 2.35kg; UTi120T: 2.6kg; UTi165A: About 5kg
|
|||
