UT622A /UT622C/UT622E Handheld LCR Meter

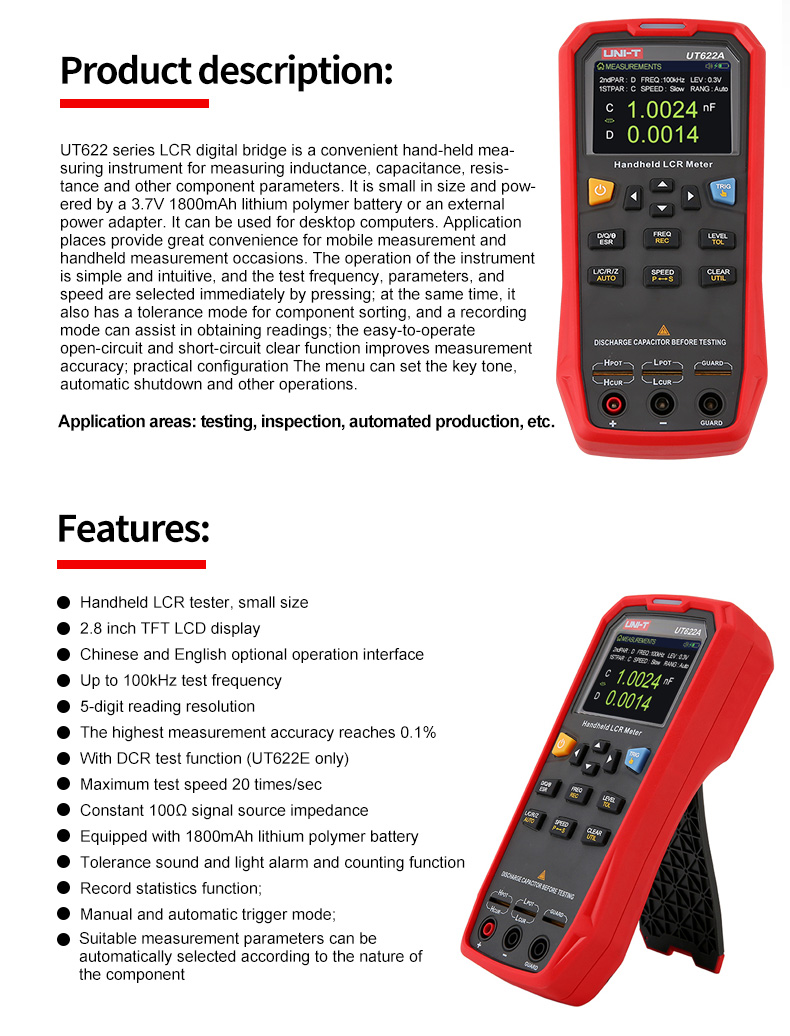

UT622 series handheld LCR meters feature powerful functions, high accuracy, fast speed, and long standby time.With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable battery, and up to 100kHz test frequency, the meters can be used for longstanding accurate and convenient measurement in any occasion. They are suitable for the measurement and screening of inductance, capacitance,and resistance in production lines, maintenance points,etc.
|

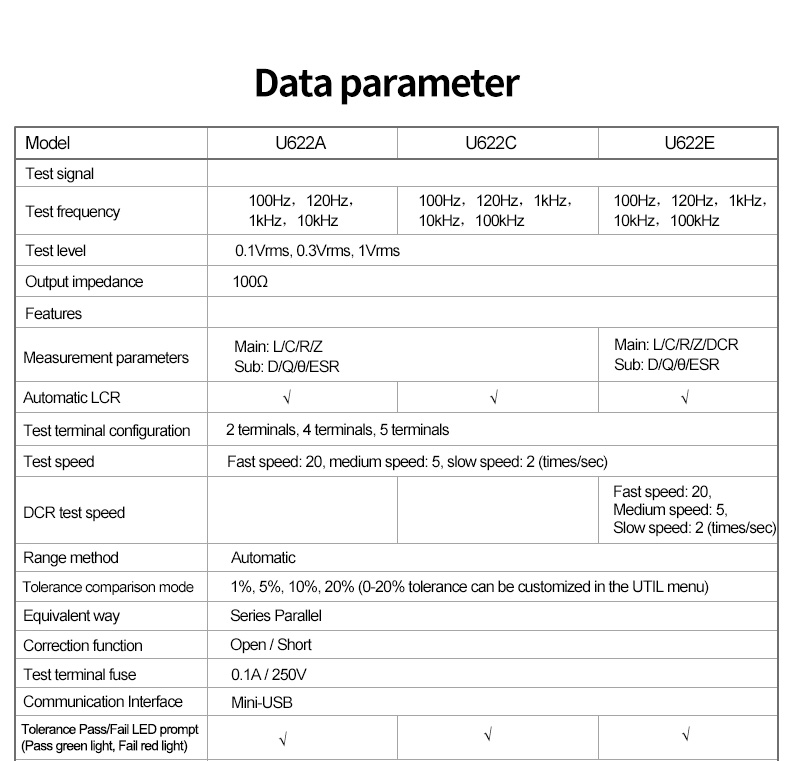

Specifications
|
UT622A
|
UT622C
|
UT622E
|
|
Certificates
|
CE, RoHS
|
||
|

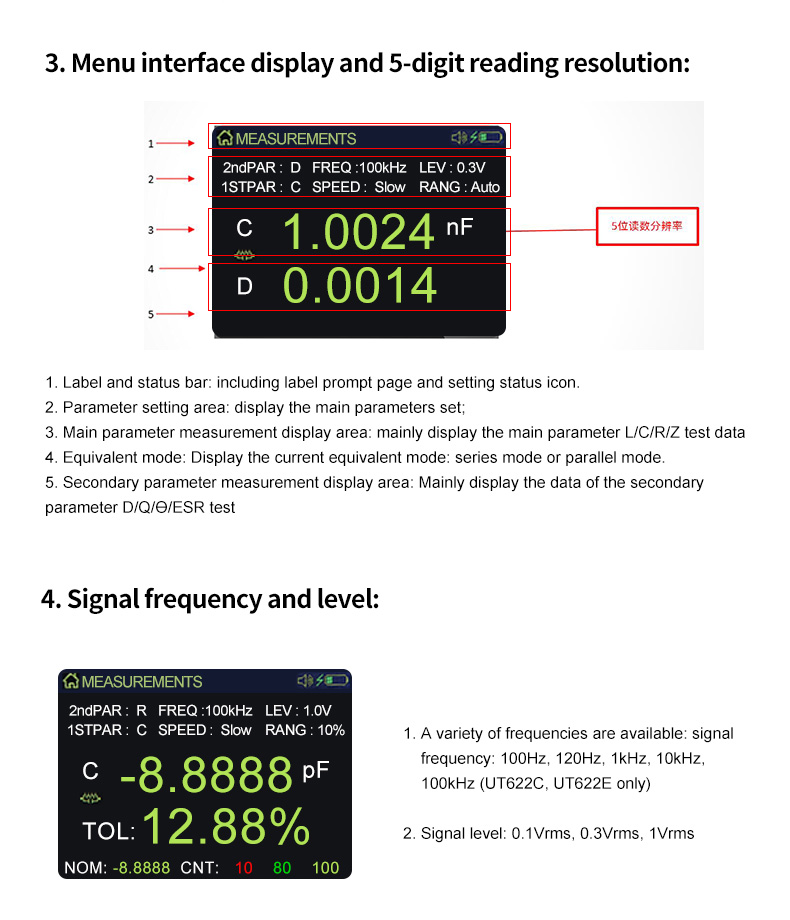

Test frequency
|
100Hz, 120Hz, 1kHz, 10kHz
|
100Hz, 120Hz, 1kHz, 10kHz, 100kHz
|
100Hz, 120Hz, 1kHz, 10kHz, 100kHz
|
|
Test signal level
|
0.1Vrms, 0.3Vrms, 1Vrms
|
||
|
Output impedance
|
100Ω
|
||
|
Measurement parameters
|
Primary: L/C/R/Z
Secondary: D/Q/θ/ESR |
Primary: L/C/R/Z/DCR Secondary: D/Q/θ/ESR
|
|
|
Auto LCR
|
√
|
||
|

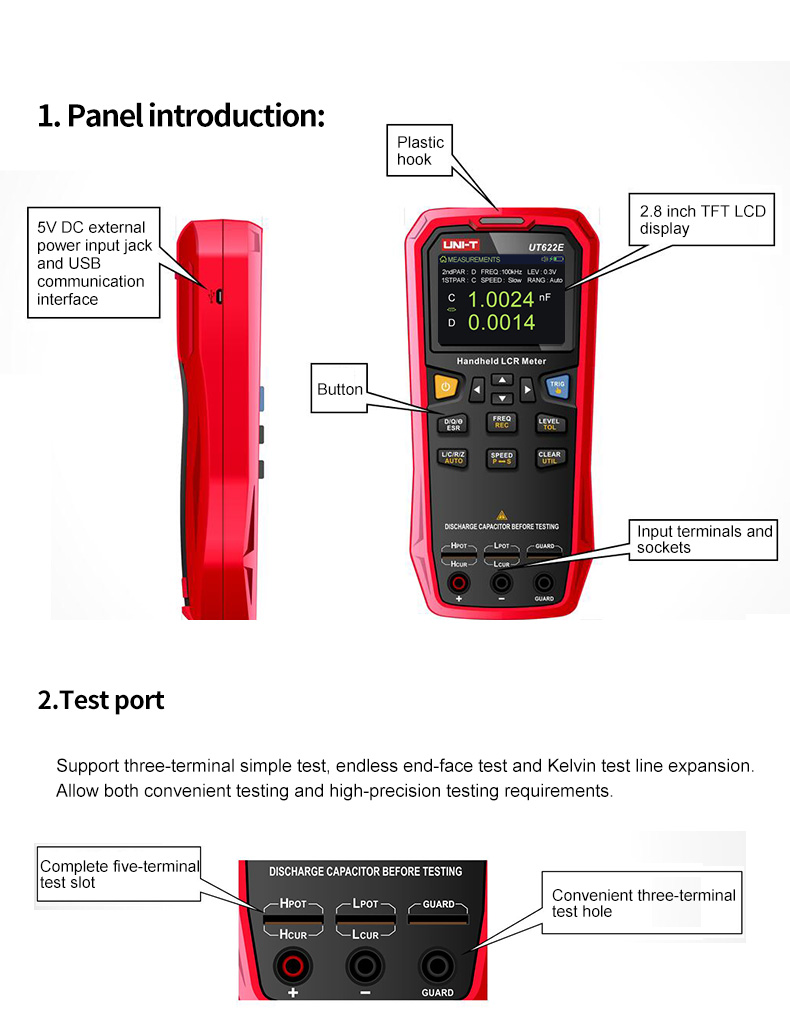

Test terminals
|
Three-terminal test jacks, five-terminal test sockets
|
||
|
Test rate
|

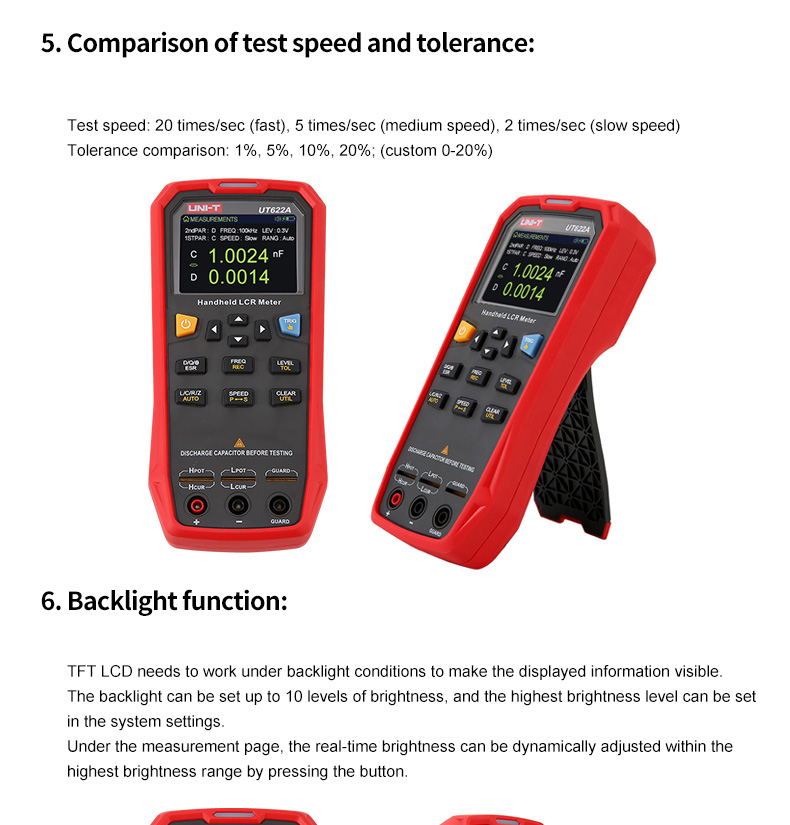

Fast (20 times/s), medium (5 times/s), or slow (2 times/s)
|
||
|
DCR test rate
|
--
|
--
|
Fast (20 times/s), medium (5 times/s), or slow (2 times/s)
|
|
Ranging mode
|
Auto/hold
|
||
|
Tolerance range
|
1%~20%
|
||
|
Testing circuit mode
|
Series/parallel mode
|
||
|
Clearing correction
|
Open/short circuit
|
||
|
Fuse of test ports
|
0.1A/250V
|
||
|
Communication interface
|
Mini-USB
|
||
|
LED alarm for tolerance
(pass: green; fail: red) |
√
|
√
|
√
|
|
Display range
|
|||
|
Maximum reading
|
99999
|
||
|
Minimum resolution
|
0.0001
|
||
|
Maximum accuracy
|
0.001
|
||
|
L
|
0.00μH~99.999H
|
||
|
C
|
0.00pF~99.999mF
|
||
|
Z/R
|
0.0000Ω~9.9999MΩ
|
||
|
ESR
|
0.0000Ω~999.99Ω
|
||
|
D
|
0.0000~9.9999
|
||
|
Q
|
0.0000~99999
|
||
|
θ
|
-179.9°~179.9°
|
||
|
DCR
|
--
|
--
|
0.01mΩ--20.000MΩ
|
|
Temperature coefficient
|
0.1× (specified accuracy) /°C (0°C~18°C or 28°C~40°C)
|
||
|
General Characteristics
|
|||
|

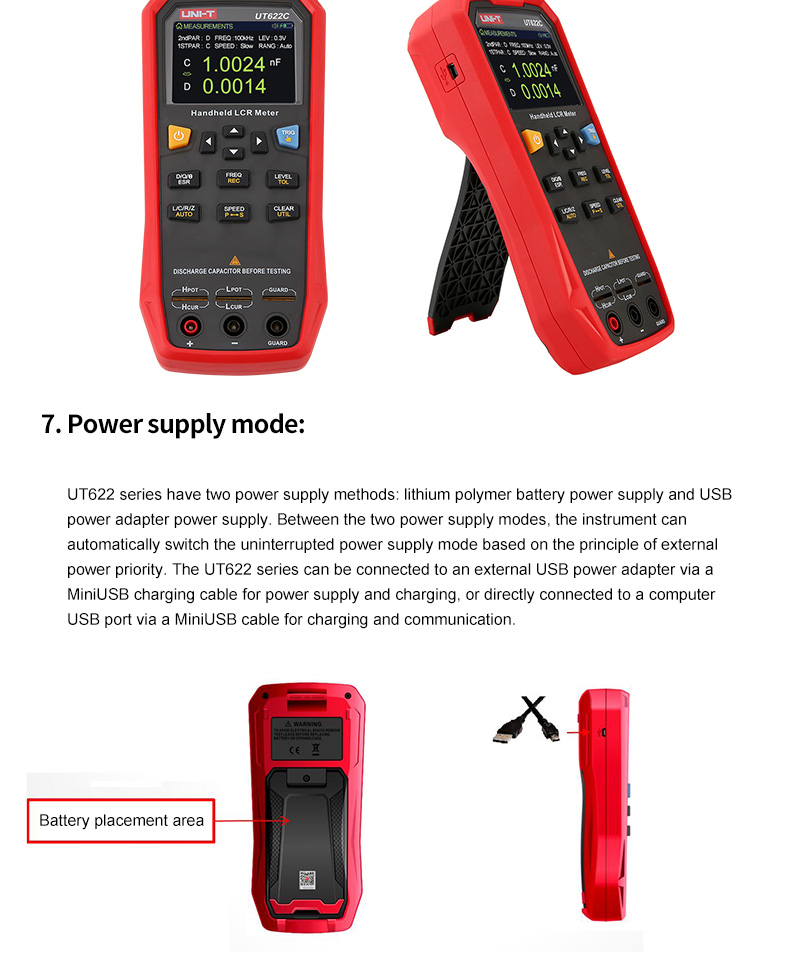

Power
|
3.7V 1800mAh lithium polymer battery; Input: 220V (1±10%), 50Hz (1±5%); Mini-USB output: 5V, 1A
|
||
|
Display
|
2.8' TFT LCD 320X240
|
||
|
Product net weight
|
420g
|
||
|
Product size
|
93mm x 192mm x 44mm
|
||
|
Standard accessories
|
Short circuit board (UTR-001), USB cable, 5V 1A power adapter, Four-terminal Kelvin testleads (UTR-L100k-H) (UT622C/E), Alligator
clip test leads with rubber plugs (UTR-002)(UT622A), English manual |
||
|
Standard individual packing
|
Gift box
|
||
|
Standard quantity per carton
|
10pcs
|
||
|
Standard carton measurement
|
370mm × 305mm × 475mm
|
||
|
Standard carton gross weight
|
13.2kg
|
||
