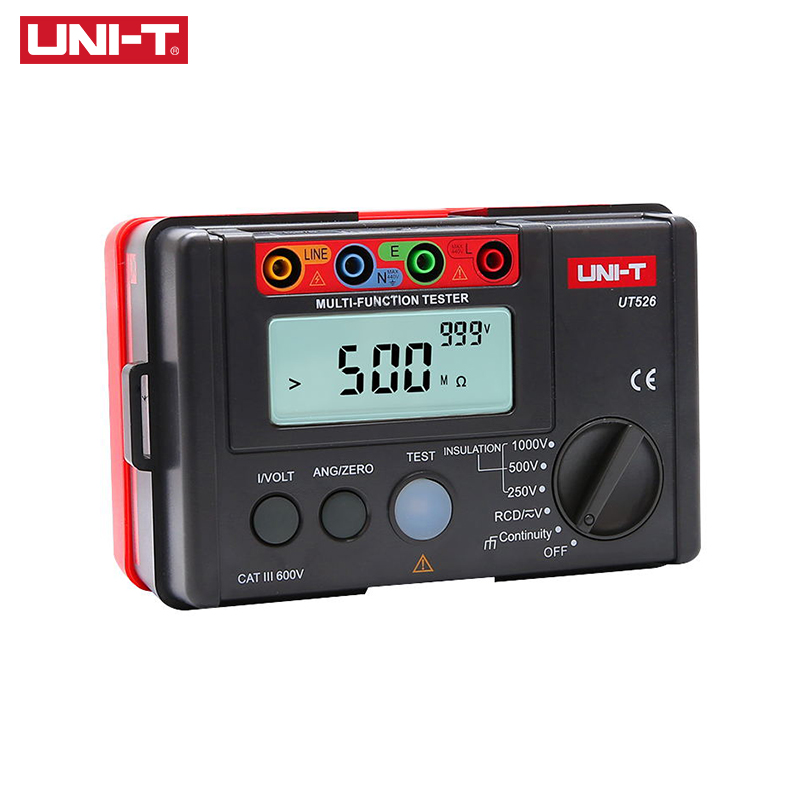

UNI-T UT526 Multifunction Electrical Meter 1000V Display Count 10000 Installation Tester

Save 17%
UNI-TSKU: YQ-UT526
No reviews

Price:
Sale price$199.00 USD Regular price$239.00 USD

Shipping calculated at checkout

Stock:
In stock

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

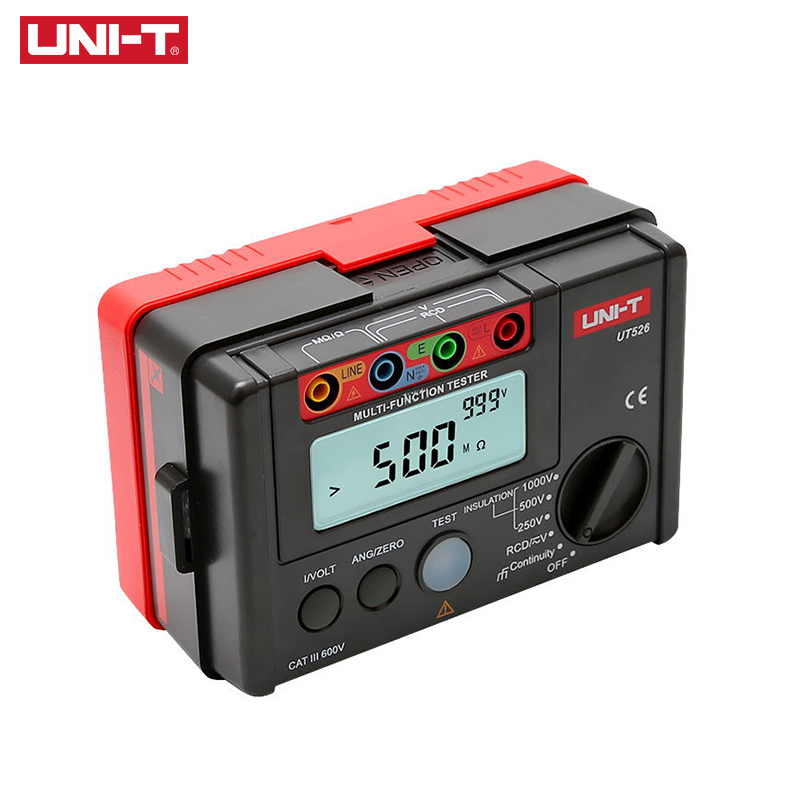

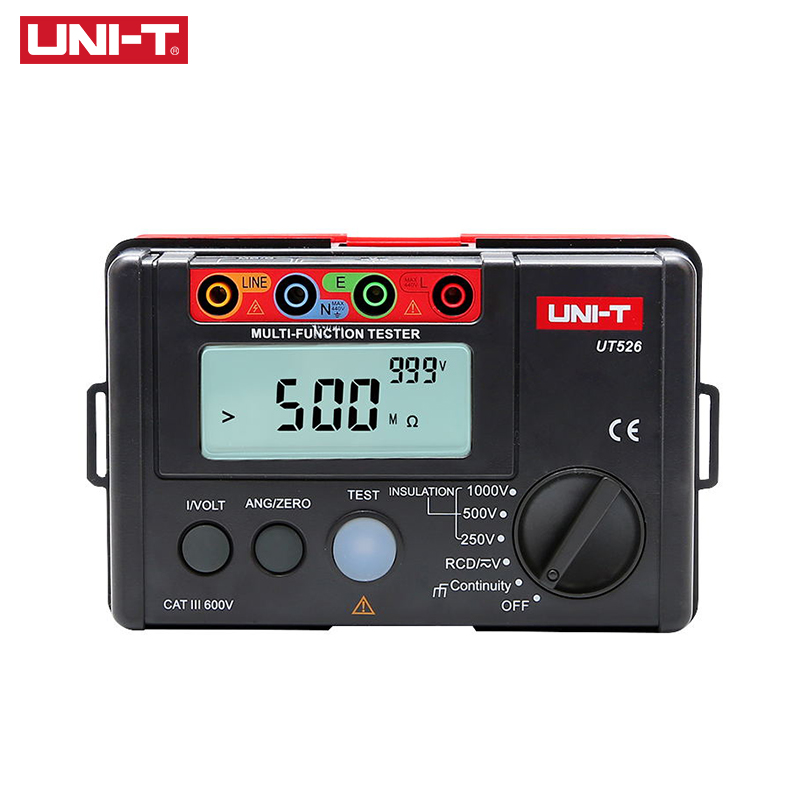

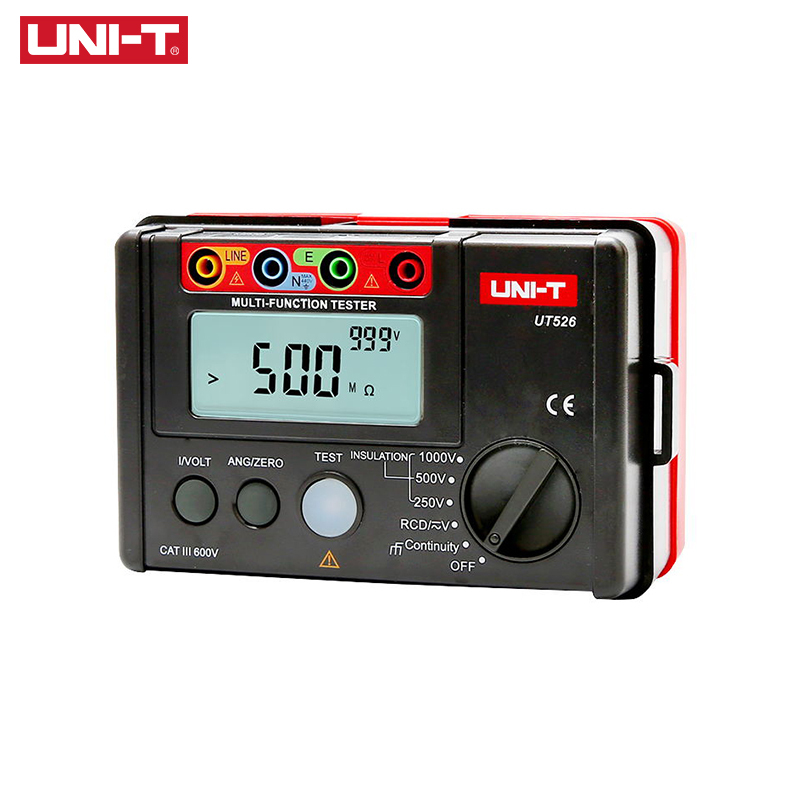

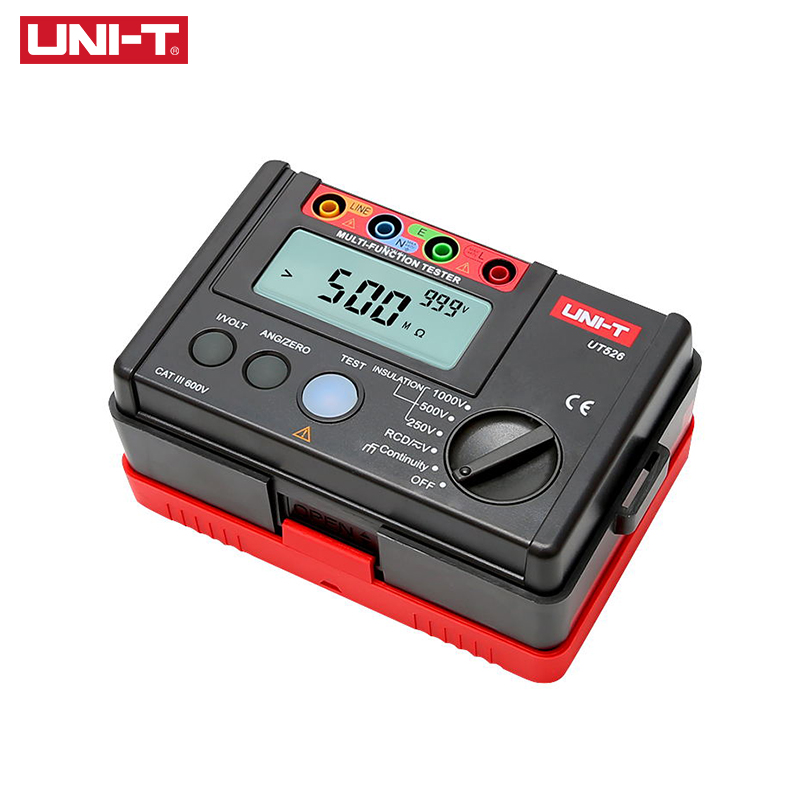

UT526 Multifunction Electrical Meter
UT526 is a multifunctional electrical installation tester. It can be used to test insulation resistance, RCD status, low

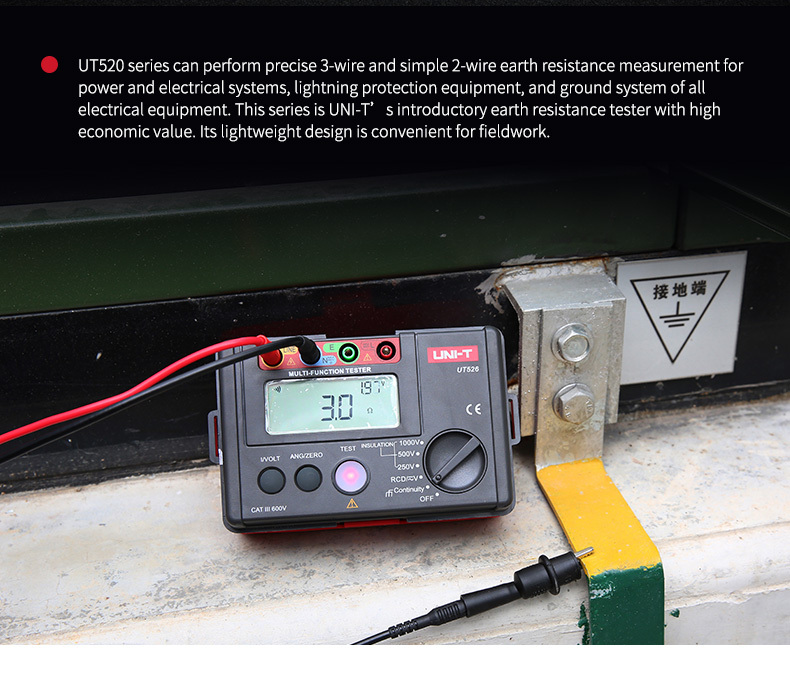

resistance continuity, and voltage measurements. UT526 can be used to test power distribution system, lightning protection system and wiring systems to ensure safe operations.

Applications:
It widely used to measure insulation and continuity of various kinds of electrical equipments, and an ideal tool for maintenance,inspection and tests for RCD in those equipments.

Product Description

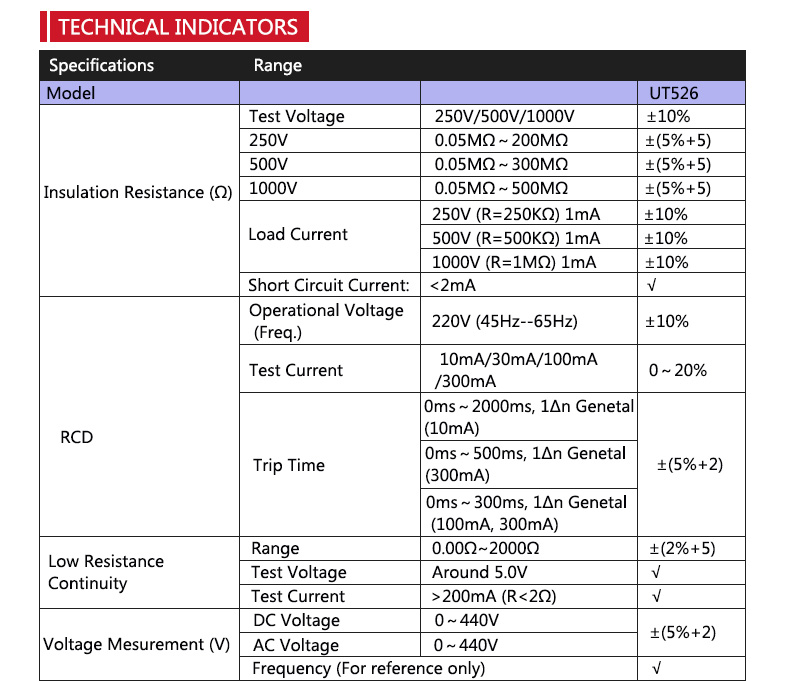

Specifications

Range
UT526
Insulation resistance (Ω)
Test voltages
250V/500V/1000V
±10%
250V
0.05MΩ~200MΩ
±(5%+5)
500V
0.05MΩ~300MΩ
±(5%+5)
1000V
0.05MΩ~500MΩ
±(5%+5)
Load current
250V (R=250kΩ) 1mA
±10%
500V (R=500kΩ) 1mA
±10%
1000V (R=1MΩ) 1mA
±10%
Short circuit current
<2mA
RCD
Operating voltage (Freq.)
220V (45Hz~65Hz)
±10%
Test current
10mA/30mA/100mA/300mA
0~20%
Trip time
0ms~2000ms, 1Δn general (10mA)
±(5%+2)
0ms~500ms, 1Δn general
0ms~300ms, 1Δn general (100mA, 300mA)
Low resistance continuity
Range
0Ω~2000Ω
±(2%+5)
Test voltage
Around 5V
Test current
>200mA (R<2Ω)
Voltage measurement (V)
DC voltage
0~440V
±(5%+2)
AC voltage
0~440V
Frequency (For reference only)

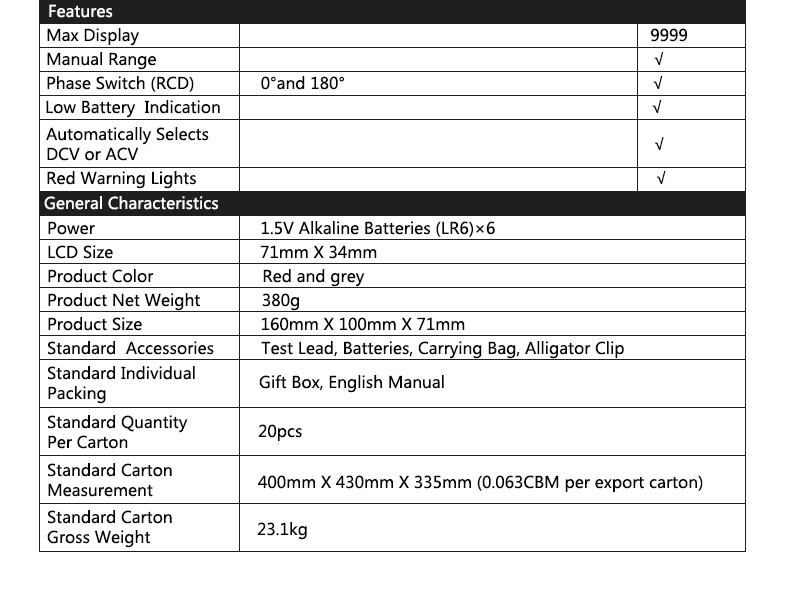

Features
Display count

10000
Manual range

Phase switch (RCD)
0°and 180°
Low battery indication

Auto AC/DC voltage identification

Red warning lights

General Characterisitics
Power
1.5V battery (LR6) x 6
Display
71mm x 34mm
Product color
Red and grey
Product net weight
380g
Product size
160mm x 100mm x 71mm
Standard accessories
Batteries, carrying bag, gallus, test leads, alligator clips, test line
Standard individual packing
Gift box, English manual
Standard quantity per carton
10pcs
Standard carton measurement
445mm x 440mm x 180mm (0.063 CBM per standard carton)
Standard carton gross weight
12.8kg
