Description

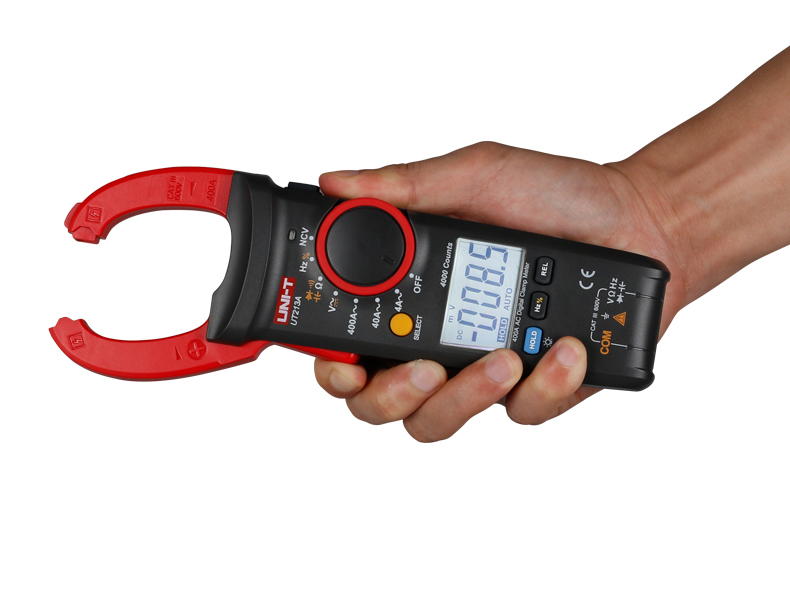

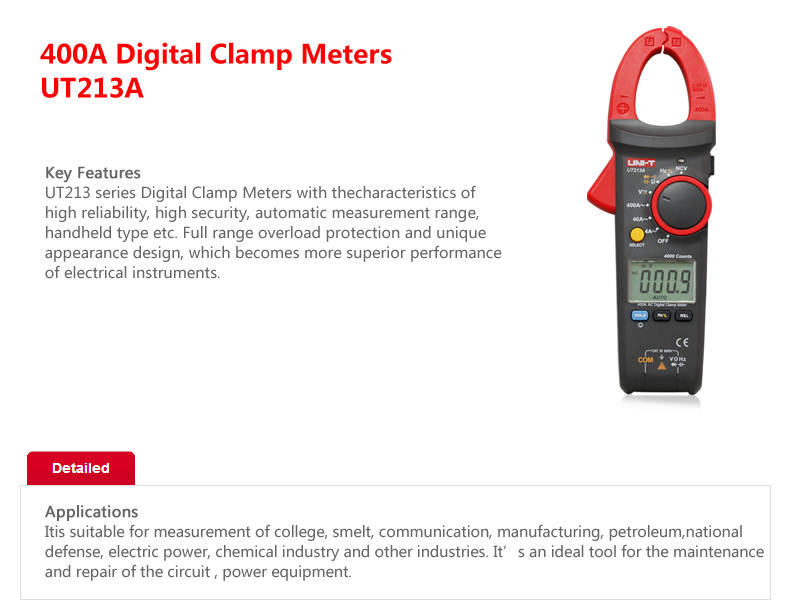

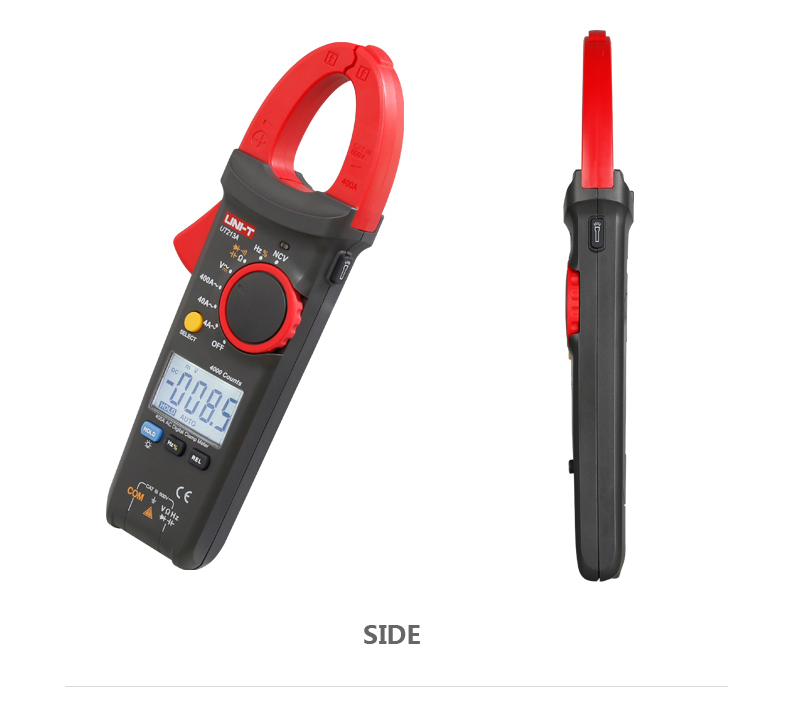

UT213A 400A Digital Clamp Meter
UT213 series is 400A digital clamp meter with CAT III 600V safety standards. These meters are designed for electricians and HVAC/R technicians. The built-in flashlight also makes these meters useful tools when working in dark environments.
|

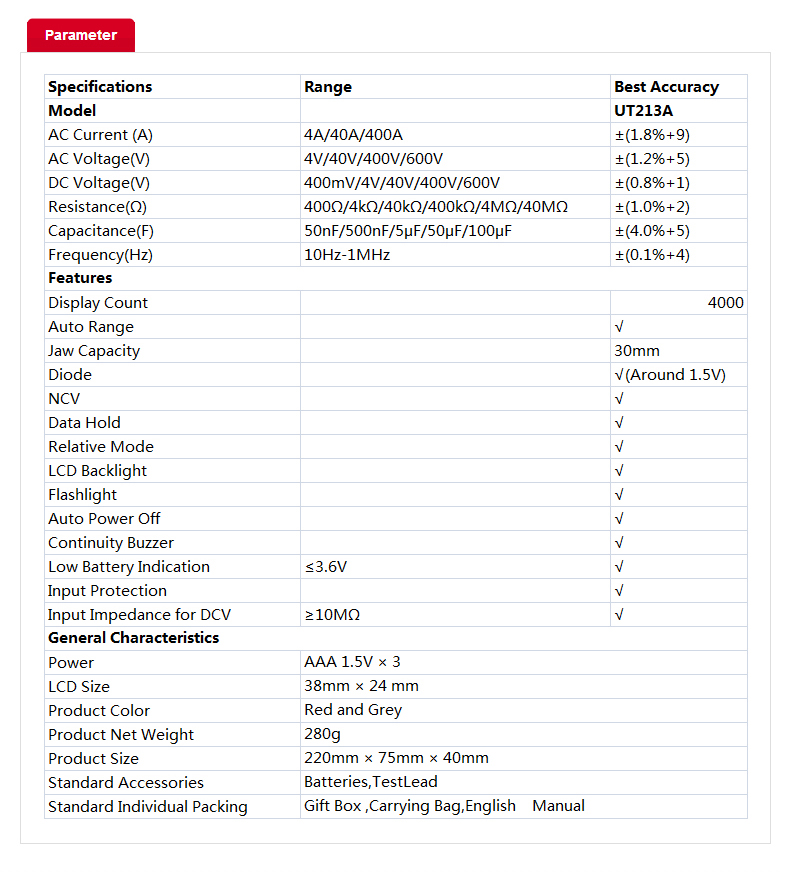

Specifications
|
Range
|
UT213A
|
|
AC current (A)
|
400A
|
±(1.8%+9)
|
|
AC voltage (V)
|
600V
|
±(1.2%+5)
|
|
DC voltage (V)
|
600V
|
±(0.8%+1)
|
|
Resistance (Ω)
|
40MΩ
|
±(1%+2)
|
|
Capacitance (F)
|
100μF
|
±(4%+5)
|
|
Frequency
|
10Hz~1MHz
|
±(0.1%+4)
|
|
Features
|
||
|
Display count
|
|
4000
|
|
Auto range
|
|
√
|
|
Jaw opening
|
|
30mm
|
|
Diode
|
|
Around 1.5V
|
|
NCV
|
|
√
|
|
Data hold
|
|
√
|
|
Relative mode
|
|
√
|
|
LCD backlight
|
|
√
|
|
Flashlight
|
|
√
|
|
Auto power off
|
|
√
|
|
Continuity buzzer
|
|
√
|
|
Low battery indication
|
|
√
|
|
Input protection
|
|
√
|
|
Input impedance for DCV
|
|
√
|
|
General Characteristics
|
||
|
Power
|
1.5V battery (R03) x 3
|
|
|
Display
|
38mm x 24mm
|
|
|
Product net weight
|
Red and grey
|
|
|
Product color
|
280g
|
|
|
Product size
|
220mm x 75mm x 40mm
|
|
|

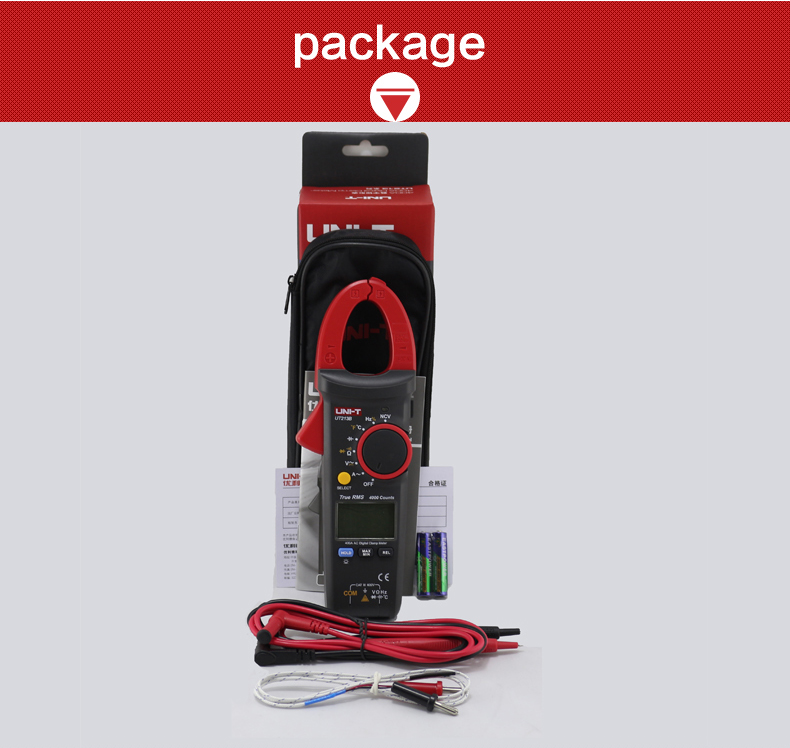

Standard accessories
|
Batteries
|
|
|
Standard individual packing
|
Gift box, carrying bag, English manual
|
|
|
Standard quantity per carton
|
40pcs
|
|
|
Standard carton measurement
|
485mm x 345mm x 385mm
|
|
|
Standard carton gross weight
|
18.2kg
|
|
