UNI-T UT181A True RMS Datalogging Multimeter Real time and date Data logging 20000

Save 8%
UNI-TSKU: YQ-UT181A
No reviews

Price:
Sale price$369.00 USD Regular price$399.00 USD

Shipping calculated at checkout

Stock:
In stock

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description



UT181A True RMS Datalogging Multimeter

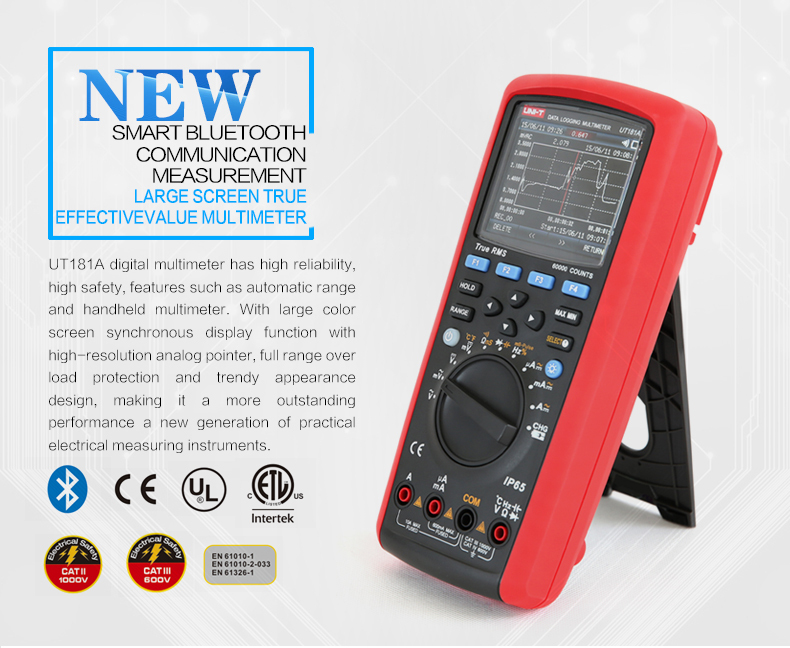

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.
Key Features

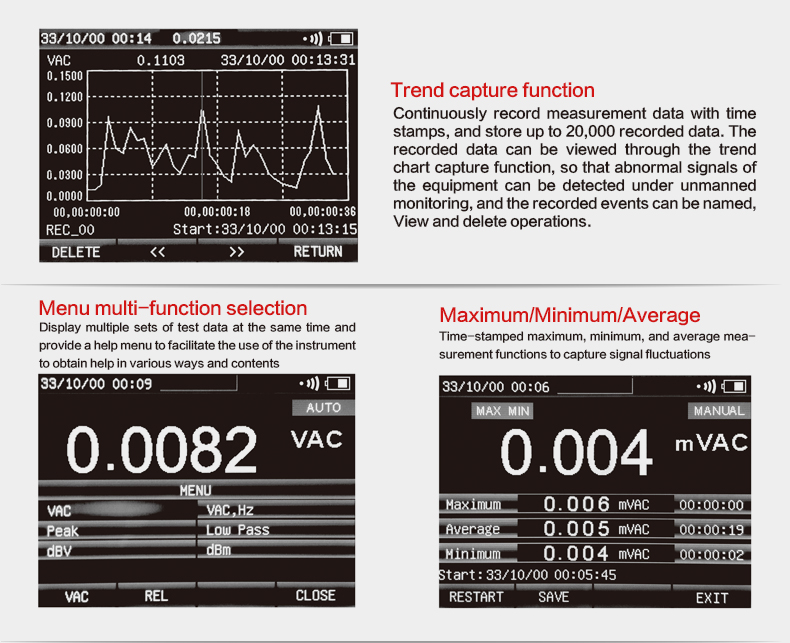

1. Trend capture
2. Data logging: 20000
3. Data comparison

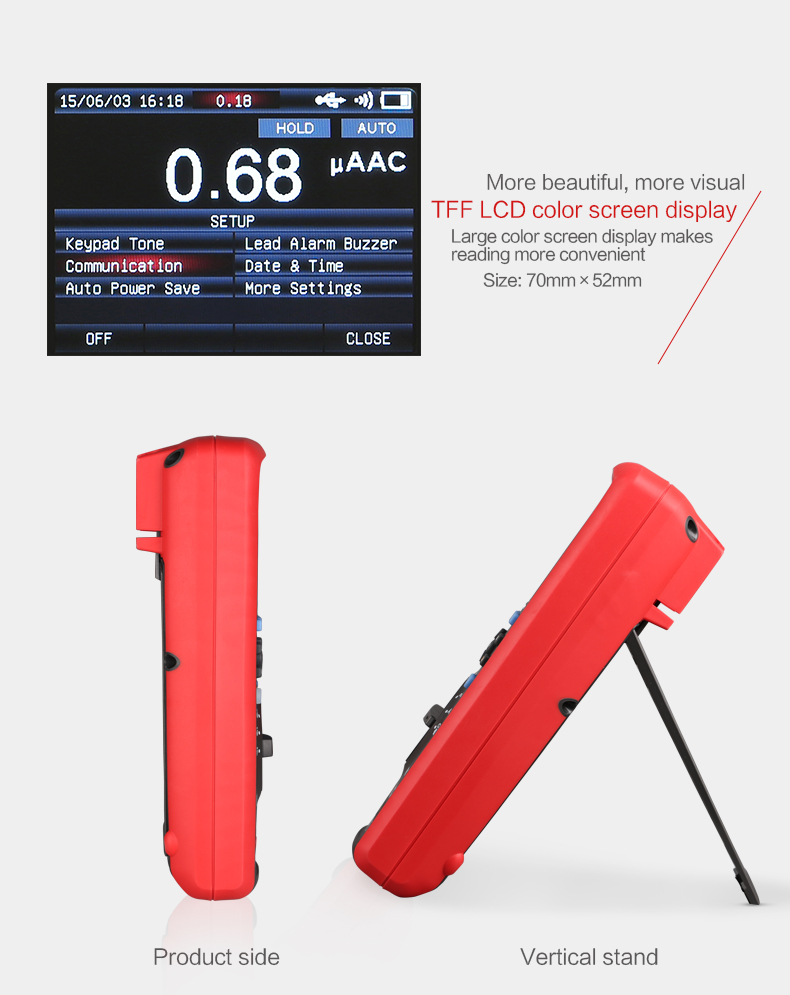

4. 3.5-inch 64k color TFT LCD
5. Dual temperature measurement
6. Low pass filter
7. 2200mAh Li-ion battery
8. Real time and date
9. Peak hold

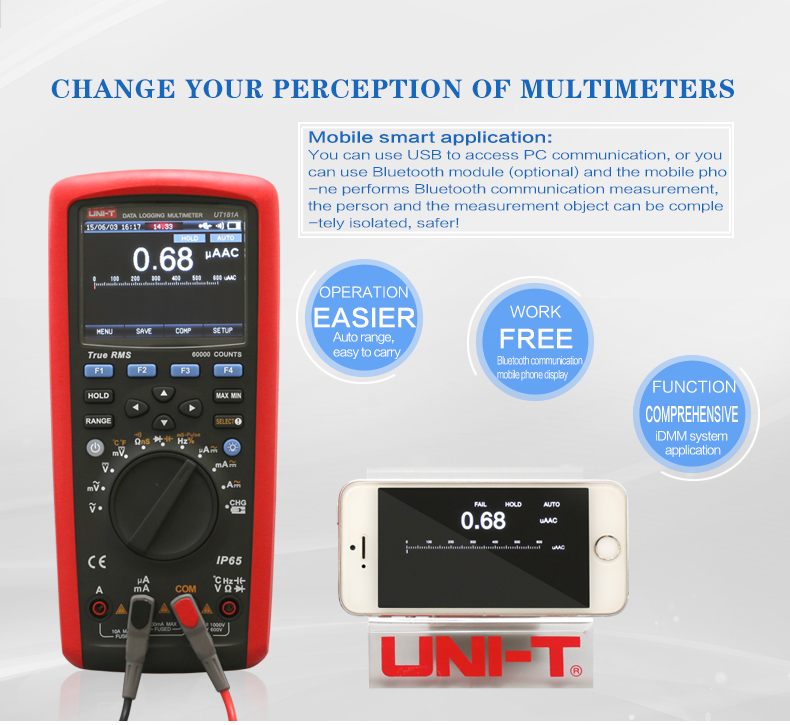

10. Bluetooth/APP
11.USB interface cable /PC software CD

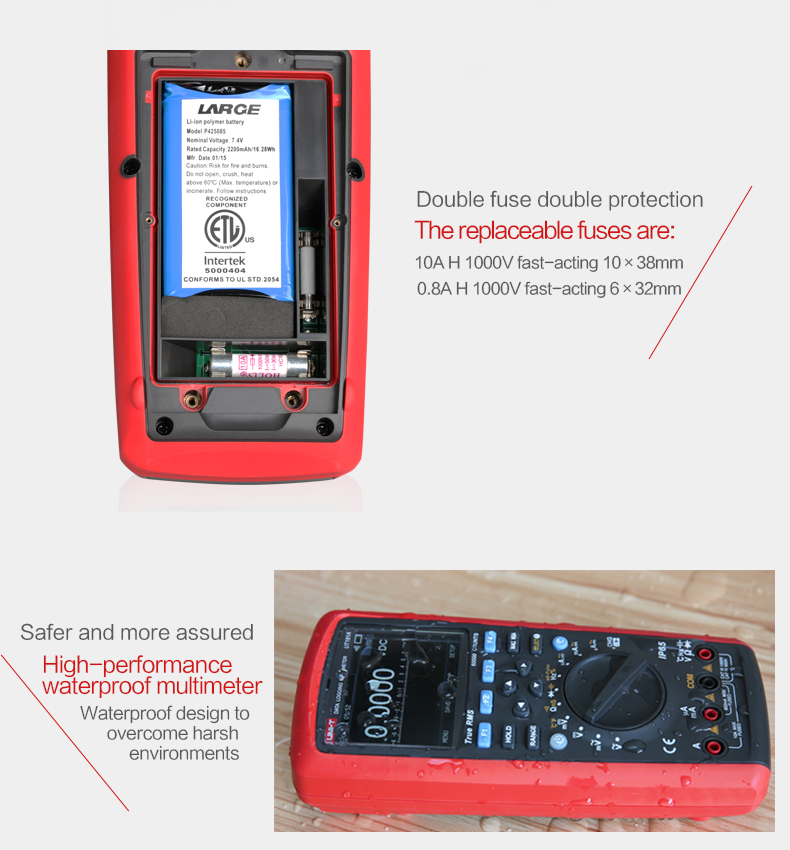

12. IP65



please note:NO PC software CD now ,we can send the software to you directly.
Specifications
Range
UT181A
DC voltage (V)
1000V
±(0.025%+5)
AC voltage (V)
1000V
±(0.3%+30)
DC current (A)
10A
±(0.08%+10)
AC current (A)
10A
±(0.6%+20)
Resistance (Ω)
60MΩ
±(0.05%+2)
Admittance (nS)
60nS
±(2%+10)
Capacitance (F)
60mF
±(2%+5)
Frequency (Hz)
10Hz~60MHz
±(0.01%+5)
Temperature (°C)
-40°C~1000°C
±(1%+30)
Temperature (°F)
-40°F~1832°F
±(1.5%+50)
Features
Display count

60000
Auto/Manual range

Bandwidth (Hz)
100kHz
AC+DC/Continuity buzzer

Low pass filter
1kHz
dBV/dBm

Diode
Around 3V
Duty cycle
10%~90%
Dual temperature measurement
T1, T2, T1-T2, T2-T1
Data hold/Peak hold

Relative mode

Data logging
20000
Trend capture

MAX/MIN/AVG

Data time display/Data comparison

Backlight adjustment

Analog bar graph/USB interface

Mis-plug alarm

Battery indication/Auto power off

Rechargeable battery

Input protection

Input impedance for DCV
≥10MΩ

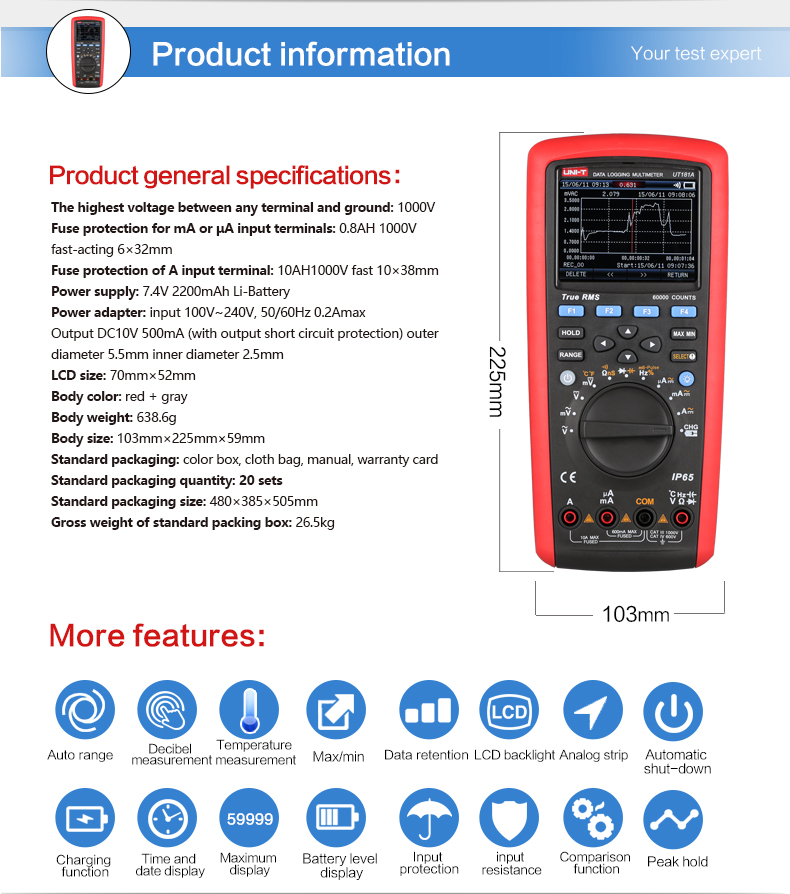

General Characteristics
Power
Li-ion battery: 7.4V 2200mAh
Display
3.5-inch 64K color TFT LCD (320 x 240)
Product color
Red and grey
Product net weight
638.6g
Product size
225mm x 103mm x 59mm

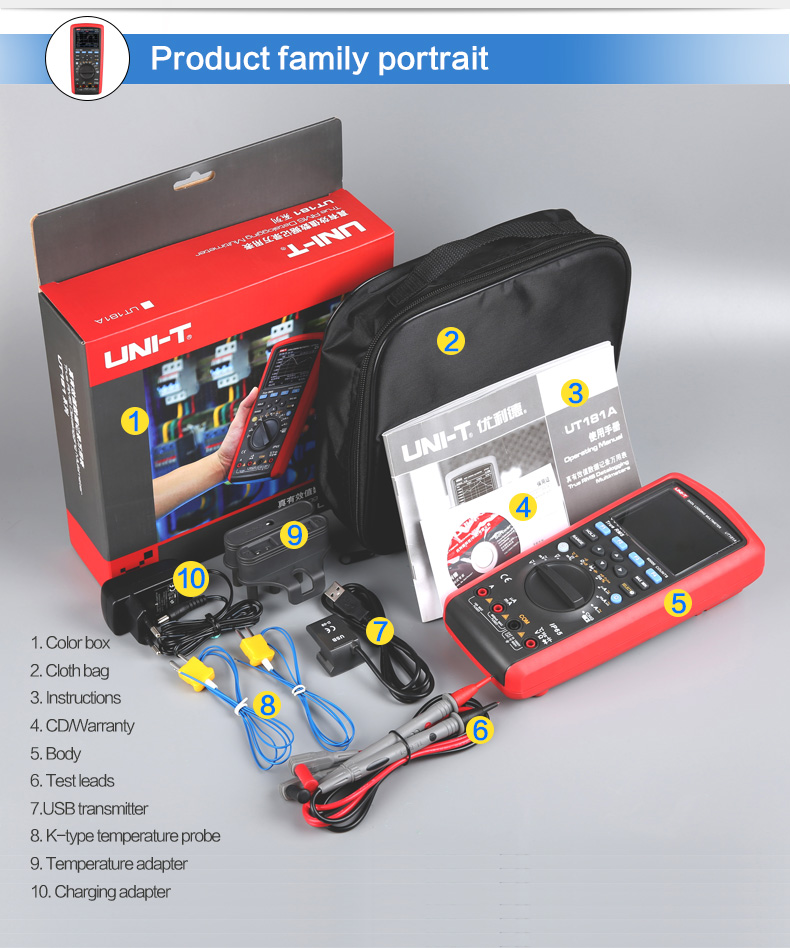

Standard accessories
Battery, test leads, temperature adaptor socket,
point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable
Standard individual packing
Gift box, carrying bag, English manual
Standard quantity per carton
20pcs
Standard carton measurement
480mm x 385 mm x 505mm
Standard carton gross weight
25.3kg
Optional accessory
Bluetooth adaptor (UT-D07)
