Description

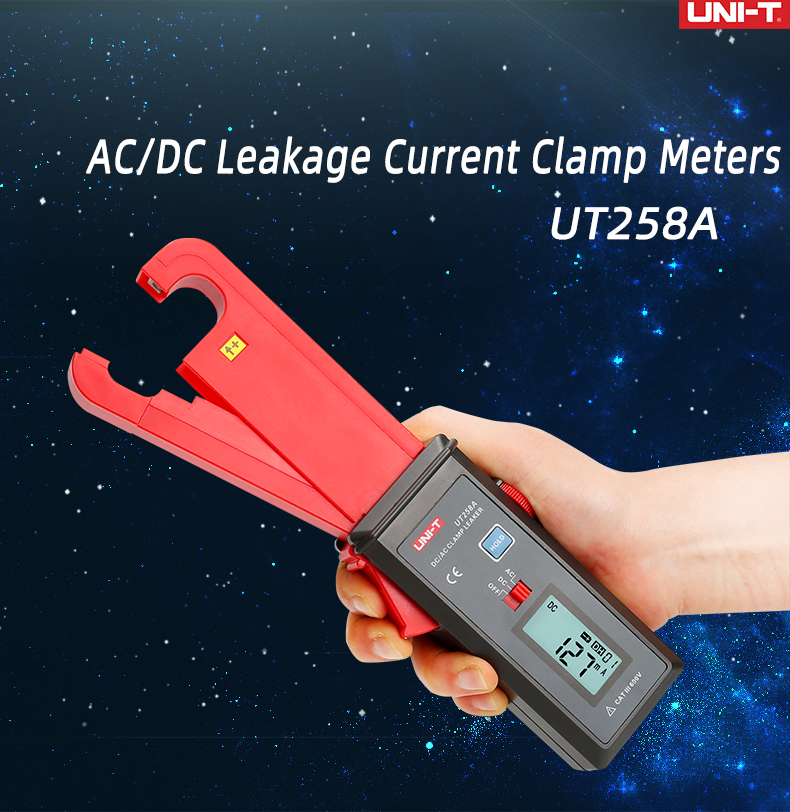

UT258A AC/DC Leakage Clamp Meter

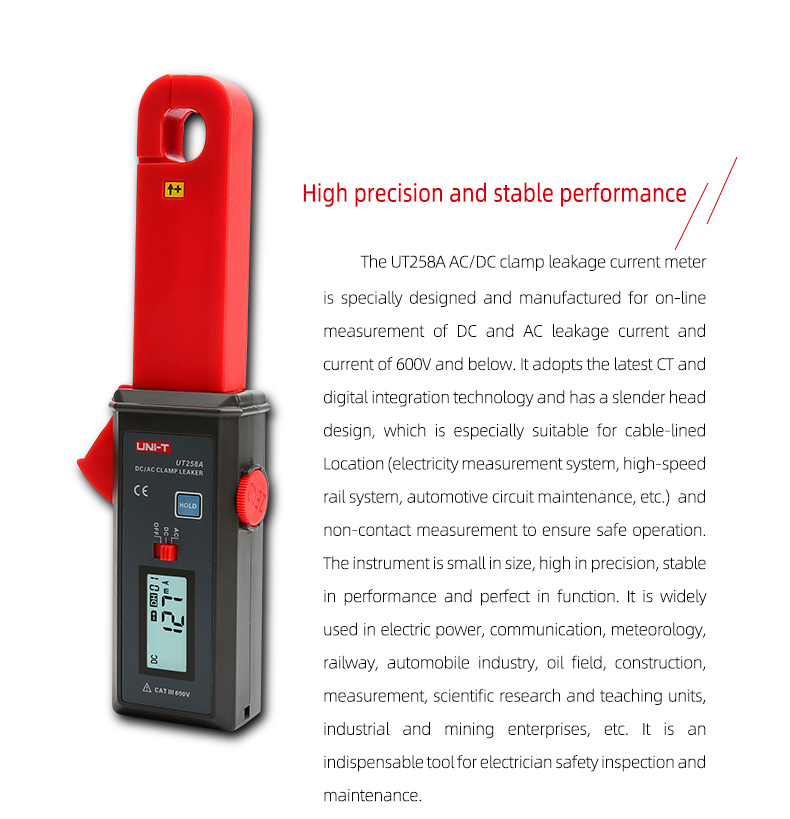

UNI-T’s UT258A is a 10000-count auto range clamp meter. It measures 0mA~60A AC/DC leakage current with zero mode, φ7mm jaw and RS-232 interface.

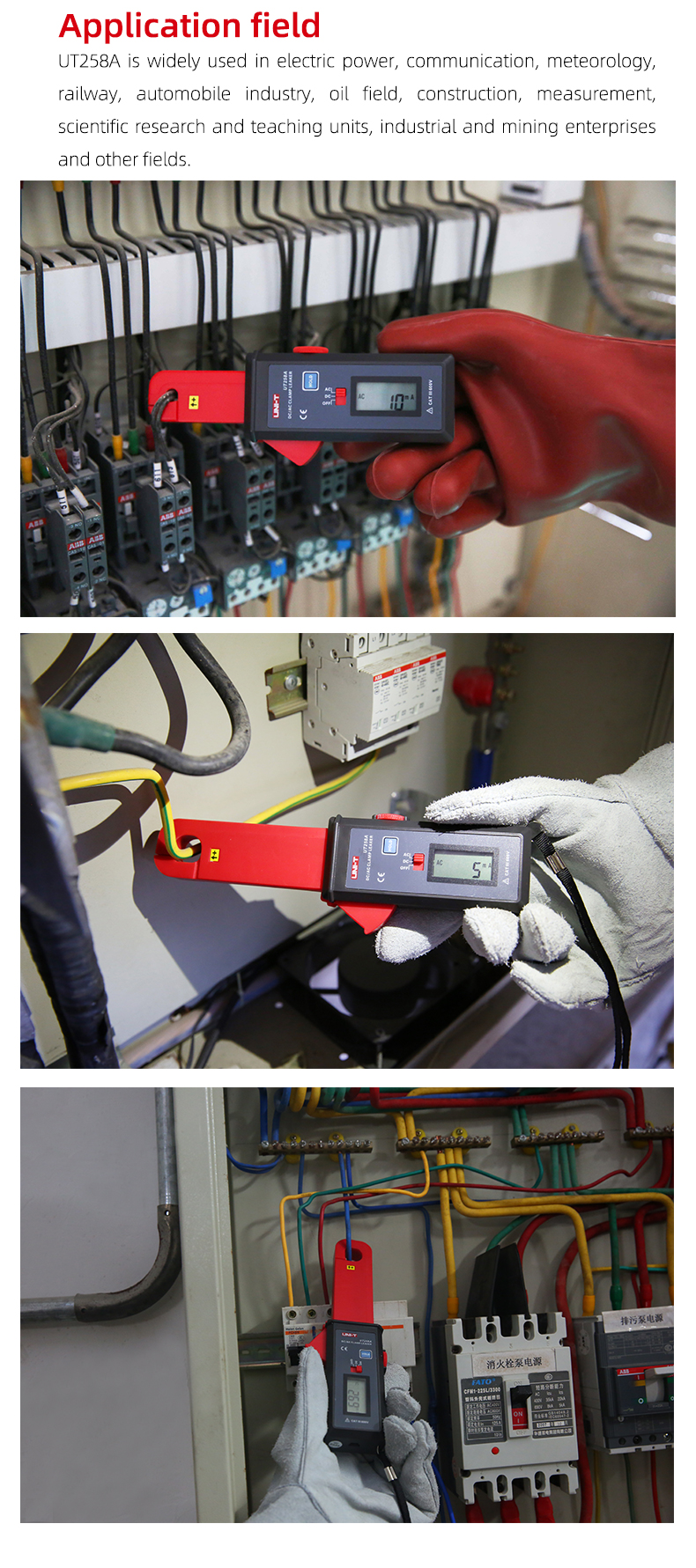

Applications:
It could be widely applied in electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.
Applications:
It could be widely applied in electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.
|

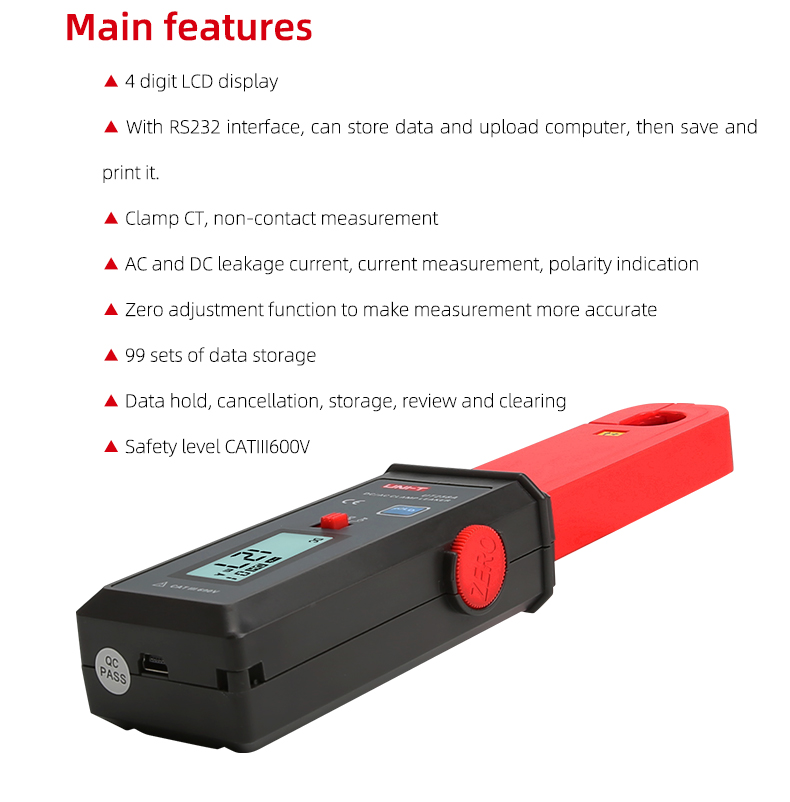

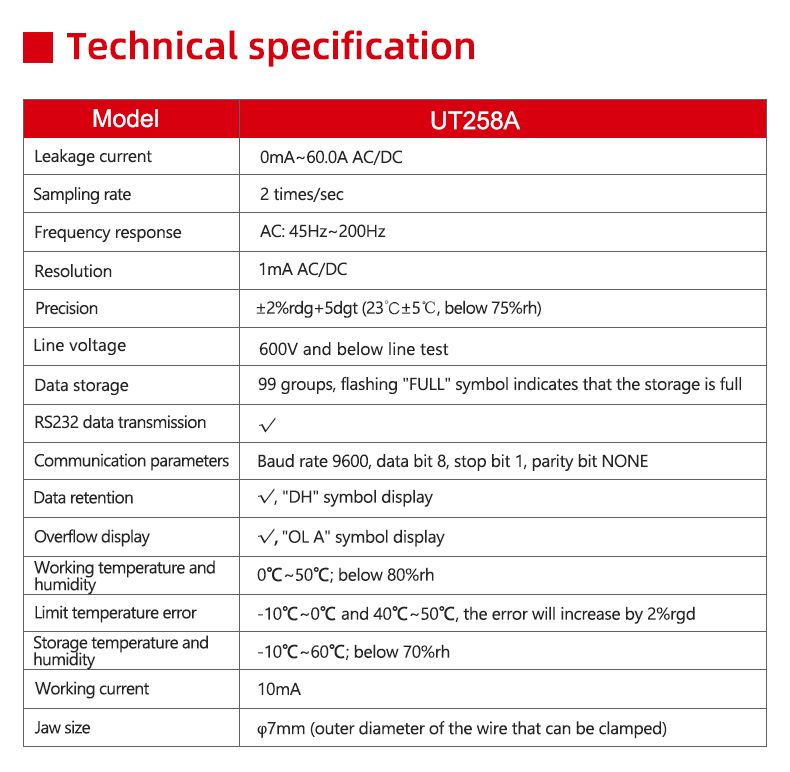

General Functions
|
Range
|
Accuracy
|
|
Type
|
|
UT258A
|
|
Current (A)
|
0mA～60.0A AC/DC
|
±(2%+5)
|
|
Resolution
|
1mA AC/DC
|
|
|
Frequency Response
|
AC: 45HZ～200HZ
|
|
|
Special Functions
|
||
|
Display Mode
|
4-bit LCD display
|
√
|
|

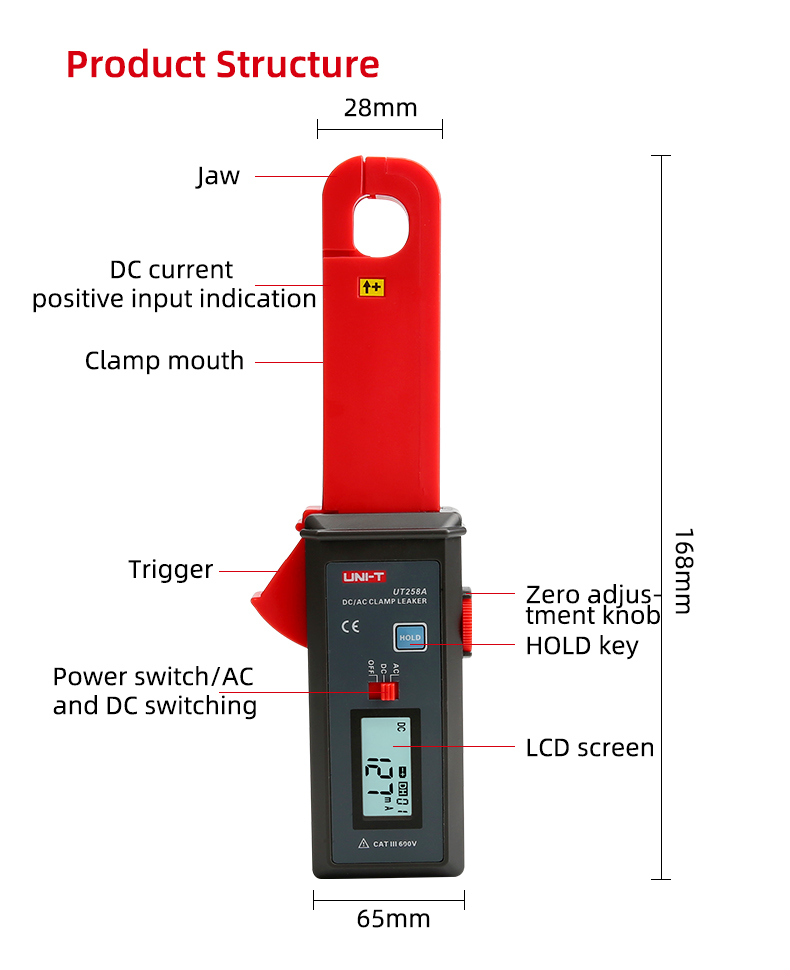

Jaw Size
|
φ7mm (max wires O.D.)
|
√
|
|
Auto Range
|
|
√
|
|
RS-232 Data Transmission
|
|
√
|
|
Data Storage
|
|
99 groups
|
|
Zero Adjustment
|
Press ZERO to return to zero, remove residual magnetism induction, and then clamp the wires to be tested.
|
√
|
|
Data Hold
|
|
√
|
|
Line Voltage
|
not beyond 600V
|
√
|
|
Auto Power Off
|
5 min
|
√
|
|
Low Battery Indication
|
Indicates low battery when the voltage is 7.2
|
√
|
|
Sampling Rate
|
About 2 sec per time
|
√
|
|
Working Current
|
10mA
|
√
|
|
General Characteristics
|
||
|
Power Supply
|
Zinc-manganese battery 6F22 9V
|
|
|
Product Color
|
Red and grey
|
|
|
Product Weight
|
180g (with batteries)
|
|
|
Product Size
|
168mm×65mm×34mm
|
|
|

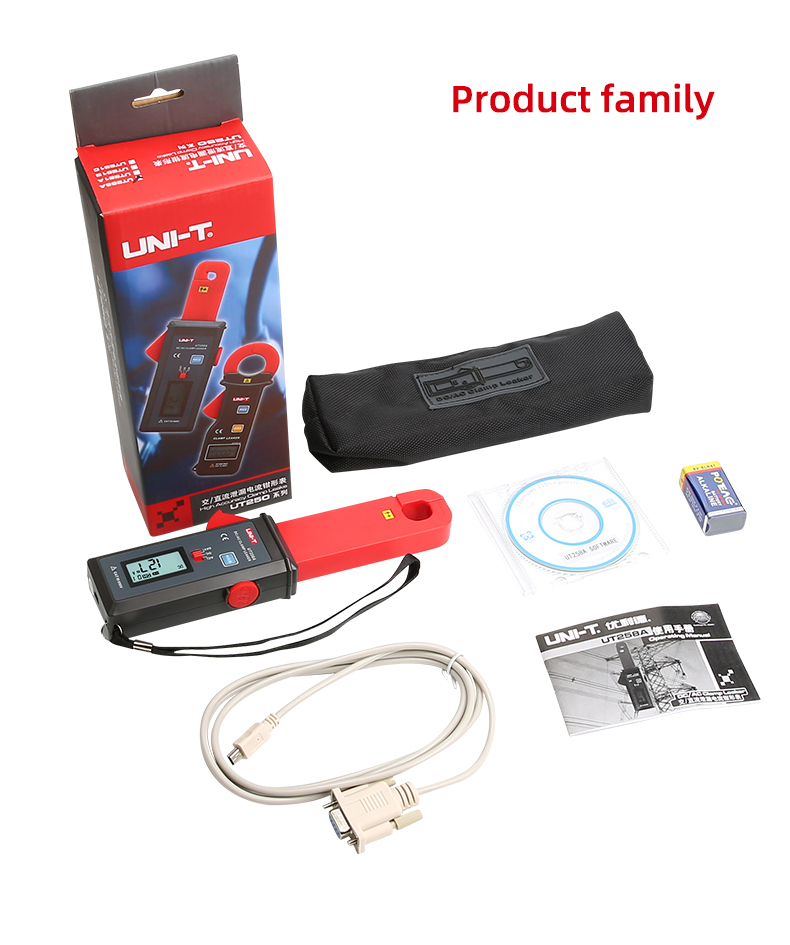

Standard Accessories
|
Batteries, monitoring software, RS232 cable
|
|
|
Standard Package
|
Gift box, user manual, toolbox
|
|
|
Standard Package Quantity
|
40pcs
|
|
|
Standard Package Size
|
540X365X290mm
|
|
|
Standard Package Gross Weight
|
20kg
|
|
