Description

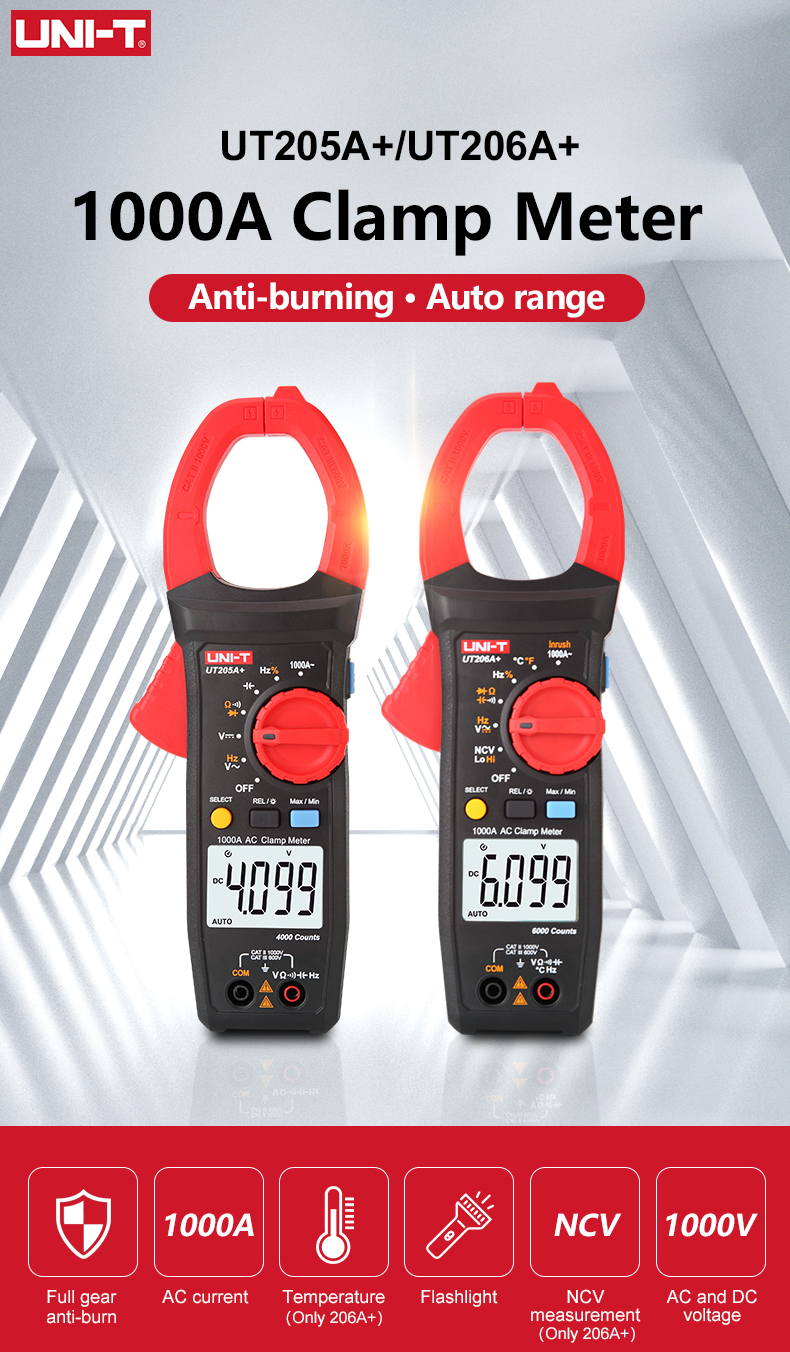

UNI-T Digital Clamp Meter UT205A+ UT206A+ 1000V AC DC Voltage Tester Digital Ammeter Resistance Temperature Testing
Features
1. 1000A AC current measurement

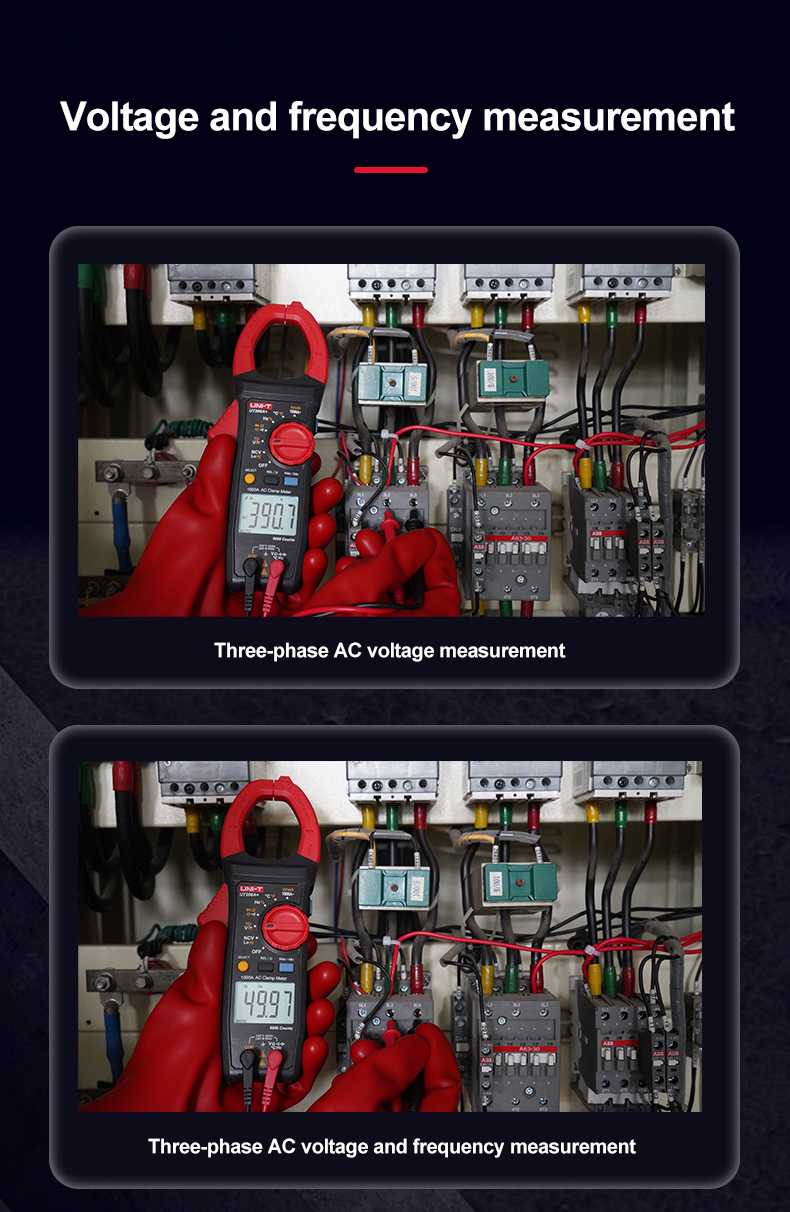

2. 1000V AC/DC voltage measurement

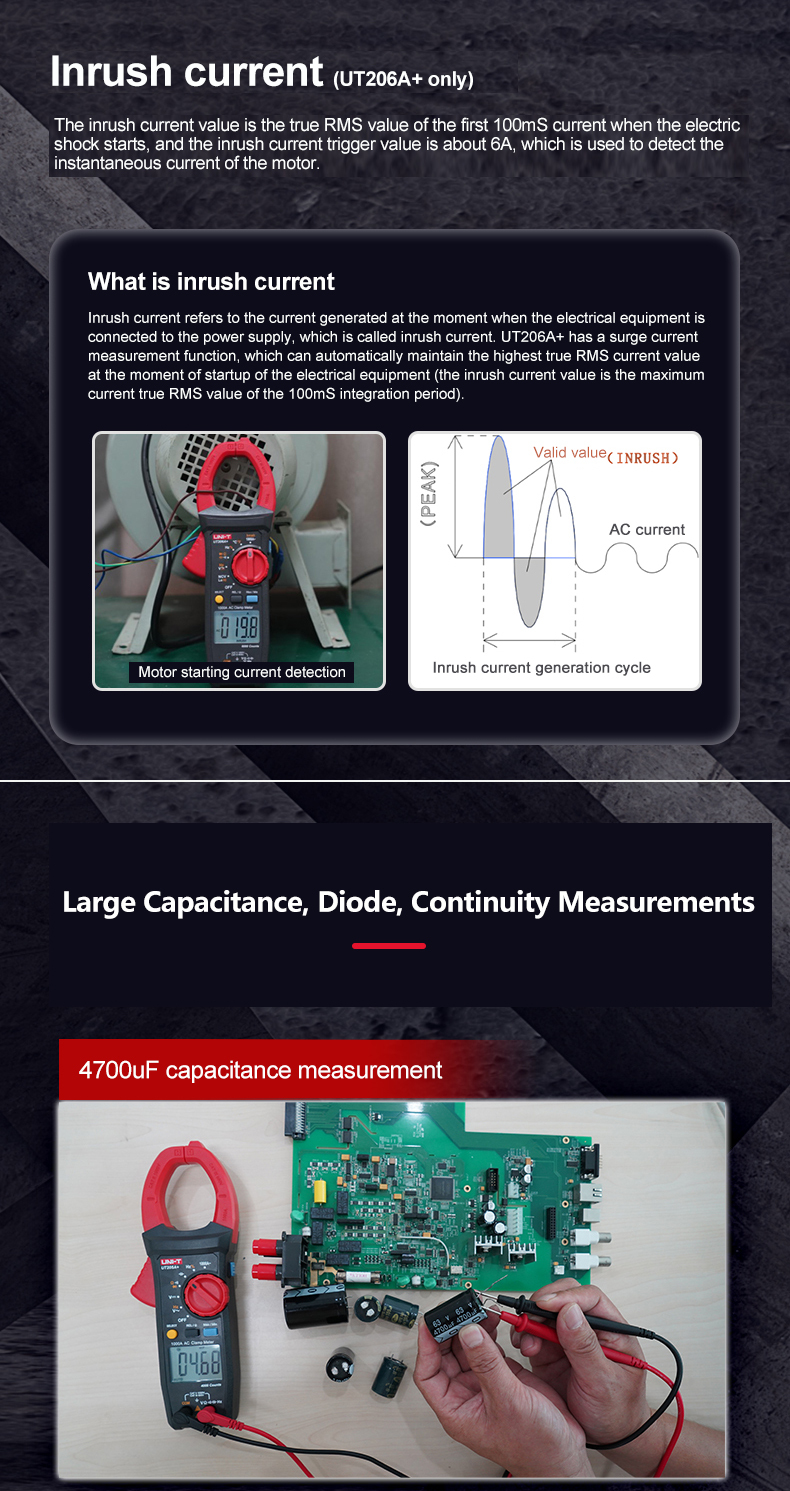

3. 600A inrush current measurement (UT206A+)

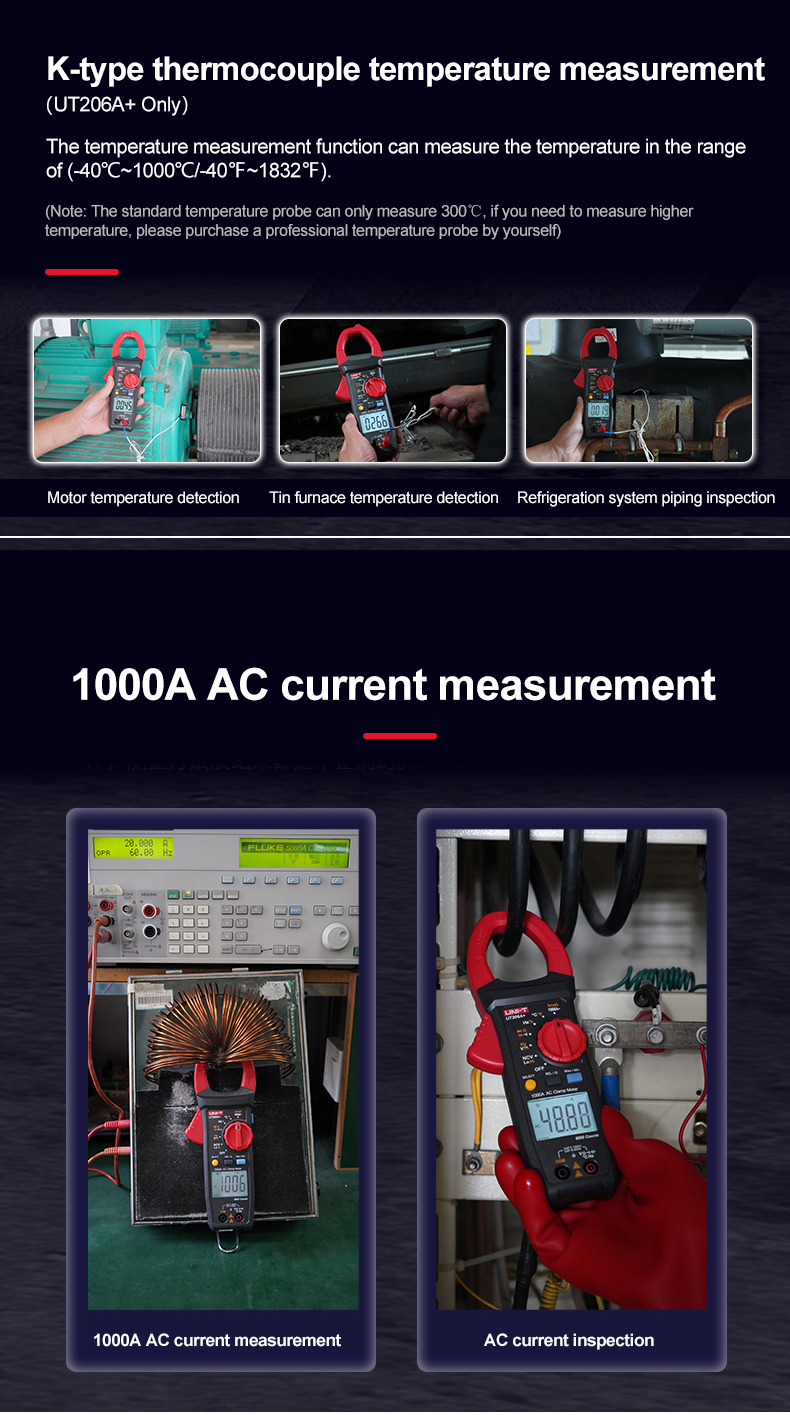

4. Temperature (UT206A+)

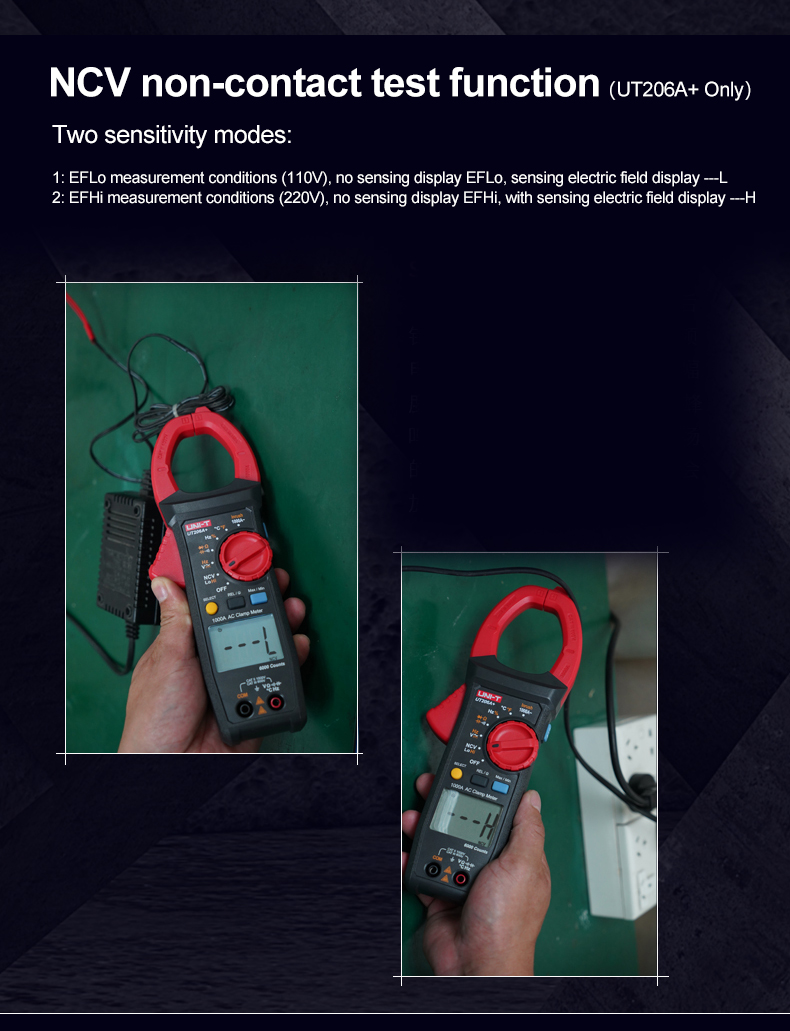

5. NCV (UT206A+)
6. ACV frequency 10Hz～10kHz

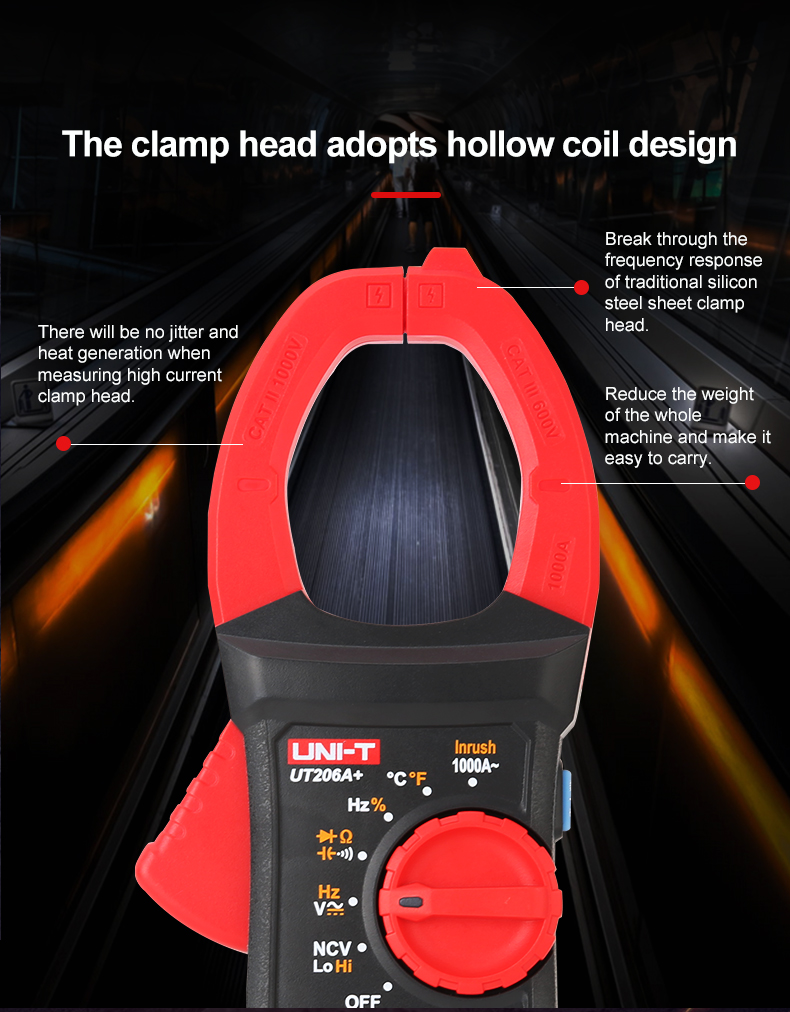

7. Jaw opening: 45mm
8. Resistance / capacitance / frequency measurement
9. Auto range / backlight / low battery indication

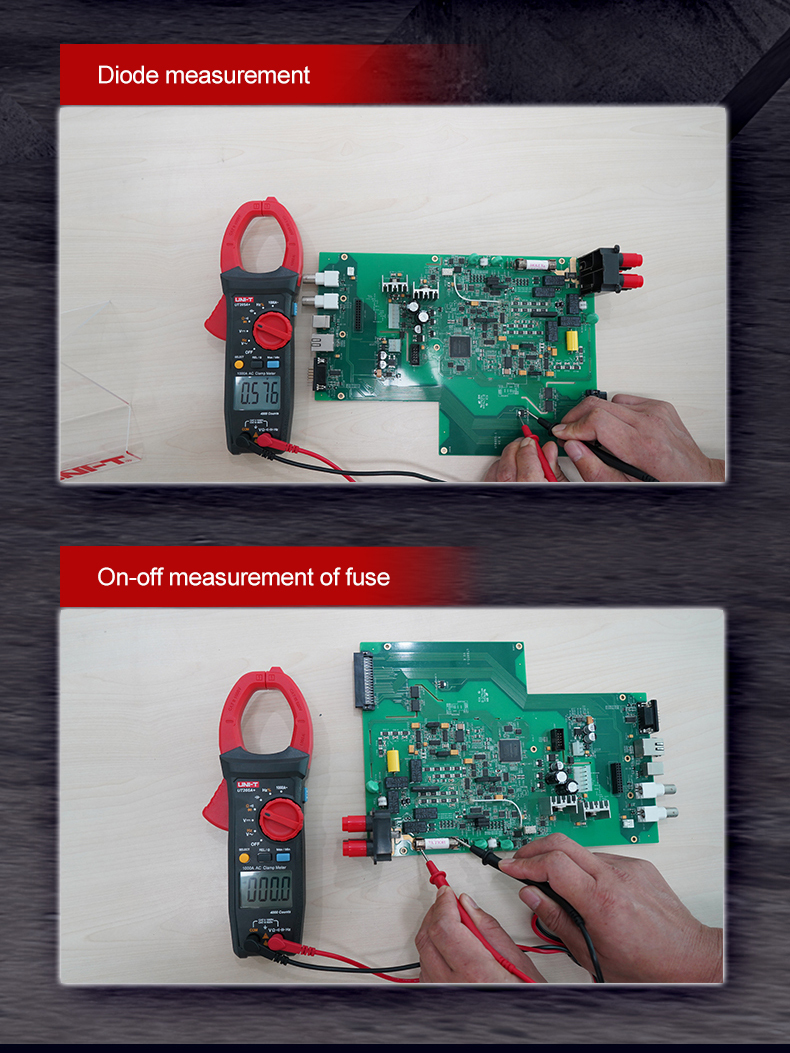

10. Continuity / diode / duty cycle
11. MAX/MIN

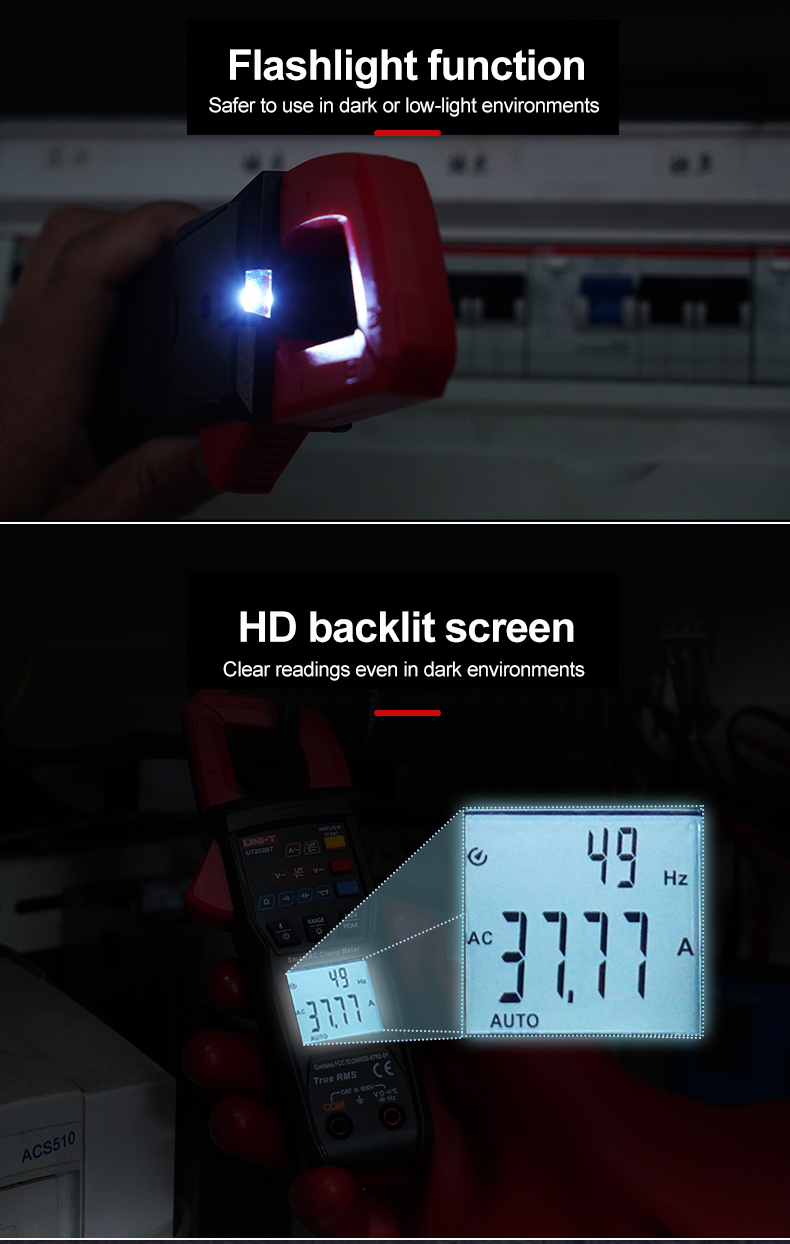

12. Data hold / flashlight / relative mode
13. Auto power off
14. CAT II 1000V/CAT III 600V
2. 1000V AC/DC voltage measurement
3. 600A inrush current measurement (UT206A+)
4. Temperature (UT206A+)
5. NCV (UT206A+)
6. ACV frequency 10Hz～10kHz
7. Jaw opening: 45mm
8. Resistance / capacitance / frequency measurement
9. Auto range / backlight / low battery indication
10. Continuity / diode / duty cycle
11. MAX/MIN
12. Data hold / flashlight / relative mode
13. Auto power off
14. CAT II 1000V/CAT III 600V
|

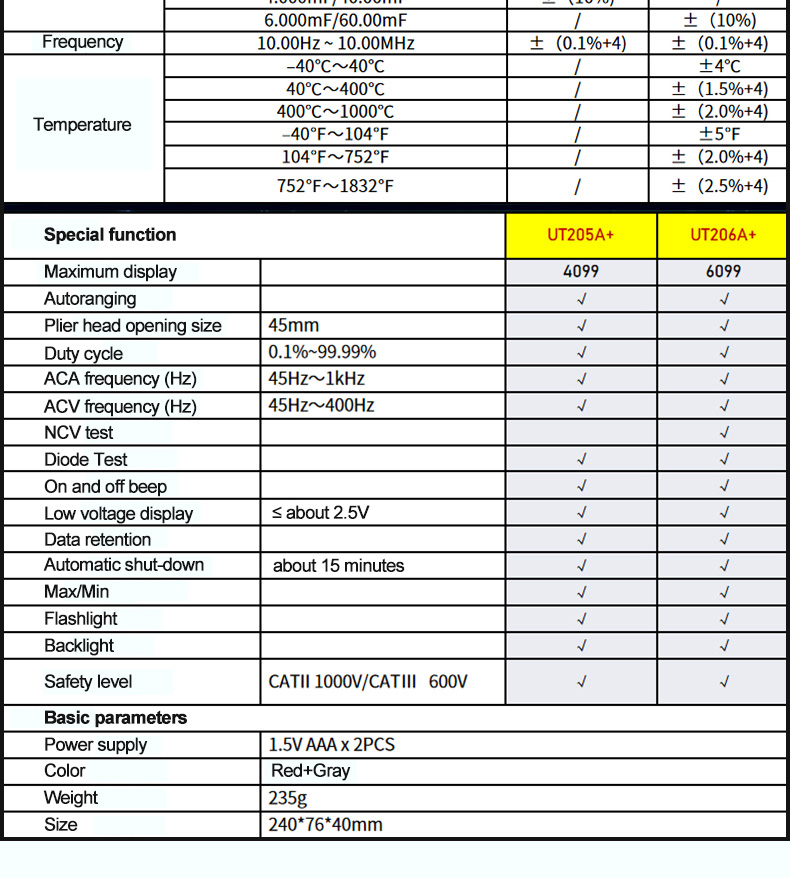

Specifications
|
Range
|
UT205A+
|
UT206A+
|
|
AC current (A)
|
1000A
|
±(1.5%+5)
|
±(1.5%+5)
|
|
Inrush current (A)
|
600A
|
|
±(5%+10)
|
|
AC voltage (V)
|
1000V
|
±(1.0%＋2)
|
±(1.0%＋2)
|
|
ACV frequency (Hz)
|
10Hz～10kHz
|
±(1.0%＋5)
|
±(1.0%＋5)
|
|
DC voltage (V)
|
1000V
|
±(0.7%＋3)
|
±(0.7%＋3)
|
|
Resistance (Ω)
|
40MΩ
|
±(0.8%+2)
|
|
|
60MΩ
|
|
±(0.8%+2)
|
|
|
Capacitance (F)
|
40mF
|
±(4%+5)
|
|
|
60mF
|
|
±(4%+5)
|
|
|
Frequency (Hz)
|
10.00Hz～10.00MHz
|
±(0.1%+4)
|
±(0.1%+4)
|
|
Temperature (℃/℉)
|
–40℃～1000℃/–40℉～1832℉
|
|
±4℃/±5℉
|
|
Features
|
|||
|
Display count
|
|
4099
|
6099
|
|
Jaw opening
|
|
45mm
|
45mm
|
|
Auto range
|
|
√
|
√
|
|
Duty cycle
|
|
√
|
√
|
|
NCV
|
|
|
√
|
|
Diode test
|
|
√
|
√
|
|
Continuity
|
|
√
|
√
|
|
Low battery indication
|
＜2.5V approximately
|
√
|
√
|
|
Data hold
|
|
√
|
√
|
|
Auto power off
|
Approximately 15 minutes
|
√
|
√
|
|
Max/Min
|
|
√
|
√
|
|
Flashlight
|
|
√
|
√
|
|
Backlight
|
|
√
|
√
|
|
Safety rating
|
CAT II 1000V/CAT III 600V
|
√
|
√
|
|
General Characteristics
|
|||
|
Power
|
AAA 1.5V x 2
|
||
|
Standard accessories
|

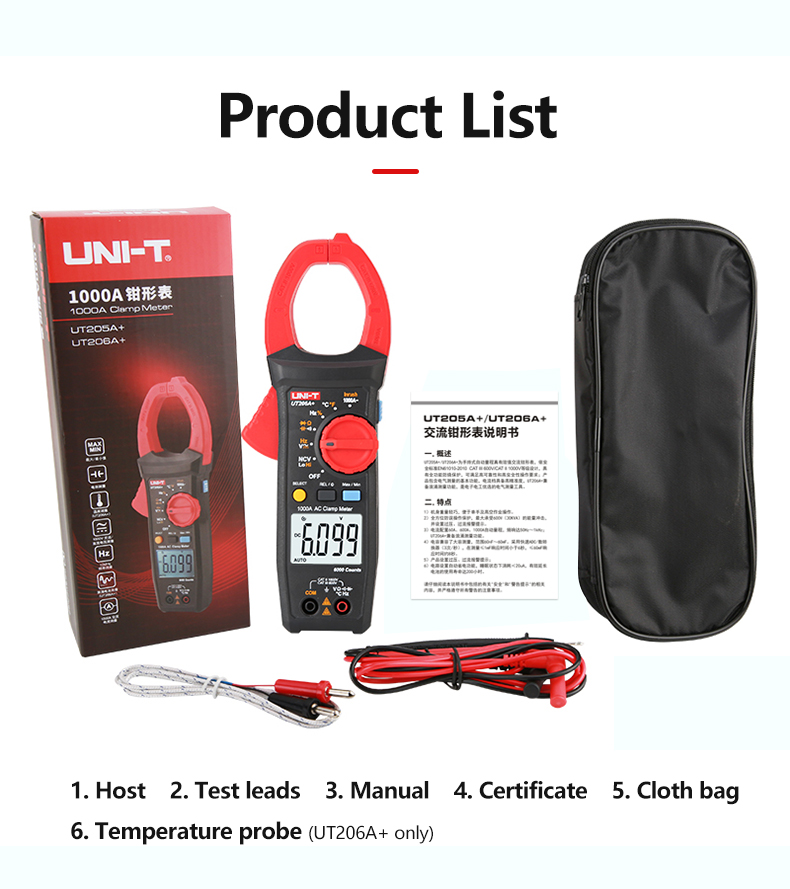

Test leads, batteries, temperature probe(UT206A+), English manual
|
||
|
Product color
|
Red+Gray
|
||
|
Product net weight
|
235g (Including batteries)
|
||
|
Product size
|
242x76.5x52mm
|
||
|
Standard individual packing
|
Gift box，carrying bag
|
||
|
Standard quantity per carton
|
20 pcs
|
||
|
Standard carton measurement
|
420*290*280mm
|
||
