Description
Guide TU Series Thermal Imaging Riflescope
Guide TU thermal imaging riflescope retains the appearance of a traditional daylight scope and perfectly integrates the latest premium thermal imaging technology. The design of this scope accommodates the long-term operating habits of hunters. TU series adopts 400x300 high-sensitivity thermal detector with three different lens options of 25mm,35mm,50mm, and its 10 sets of zero calibration configuration make it convenient to switch between different instruments.
Features:
* HD OLED display, with 1x~4x smooth zoom, provides a comfortable visual experience
* 10 sets of zero calibration configurations can be saved, no need to recalibrate for different instruments
* The reticle density can be zoomed in synchronously with the image to ensure the aiming accuracy 10 kinds of reticles, 6 kinds of reticle colors, 10 grades of reticle brightness, for your selection Support photo and video, record wonderful moments at any time,easy to share
* Remote control by WIFI or Bluetooth, for diversified usage
* Rugged and durable, IP67 rating, working temperature -30°C~50°C, no fear of severe weather
* 10hrs super long duration time, changing battery without turn off, ensuring full day operations
* 10 sets of zero calibration configurations can be saved, no need to recalibrate for different instruments
* The reticle density can be zoomed in synchronously with the image to ensure the aiming accuracy 10 kinds of reticles, 6 kinds of reticle colors, 10 grades of reticle brightness, for your selection Support photo and video, record wonderful moments at any time,easy to share
* Remote control by WIFI or Bluetooth, for diversified usage
* Rugged and durable, IP67 rating, working temperature -30°C~50°C, no fear of severe weather
* 10hrs super long duration time, changing battery without turn off, ensuring full day operations
Full-color OLED display
1024 x 768 Full-color OLED, High contrast , image details boost, Improving viewing comfort
Smooth Zoom For Flexible Searching
quickly while hunting
Designed for Professional Hunters,
No Need Conversion
No Need Conversion
Reticle density can be zoomed in synchronously with the image, and the reticle line width can be maintained at any magnification,without conversion, avoiding errors, and helping hunters improve shooting accuracy
Multiple Color Palettes to Highlight the Target
Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations
Multiple scene modes,
Highlight Target Clearly
Highlight Target Clearly
“Enhance/Highlight” can effectively reduce image impurities to highlight the target.
Photo and Video
Recording
Recording
Can share to your social media by APP
10 hours Super
Long Battery Life
Long Battery Life
Support 10 hours super long operation time. TU Series have dual battery system which consist of internal battery and external
battery. External battery can be replaced without power-off , ensuring all-day operations
IP67 Protection Rating,
Rugged and Durable
Rugged and Durable
all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed

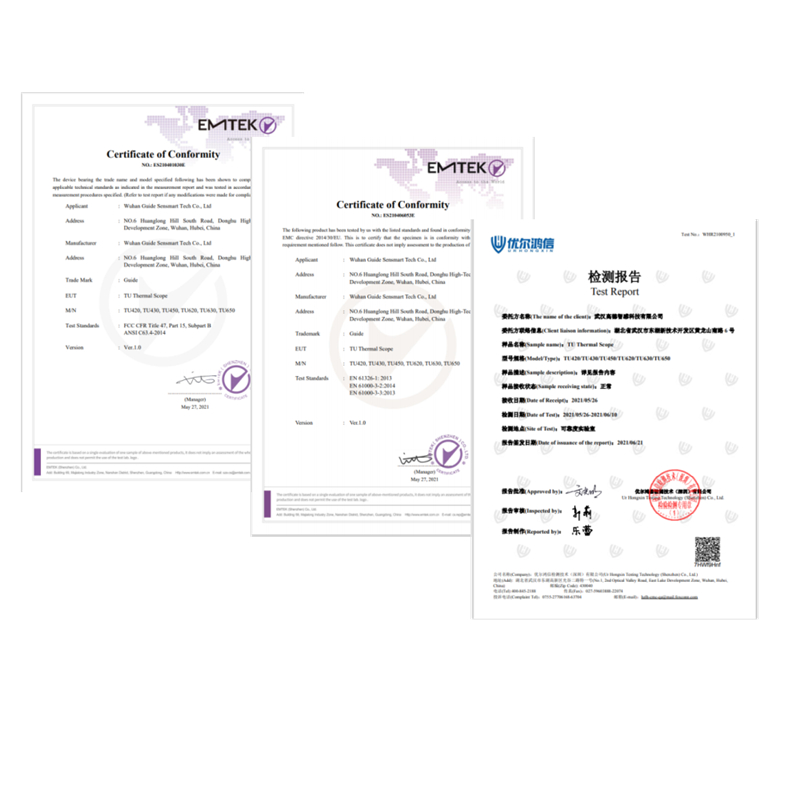

Certifications
Product Paramenters
|
Model
|
TU420
|
TU430
|
TU450
|
|
Detector
|
|||
|
Detector Type
|
400×300@17μm, VOx
|
||
|
Spectral
|
8μm～14μm
|
||
|
NETD
|
≤50mk
|
||
|
Lens
|
|||
|
Focal Length
|
25mm
|
35mm
|
50mm
|
|
Focusing
|
Manual
|
||
|
FOV
|
15.49°×11.65°
|
11.1°×8.33°
|
7.78°×5.84°
|
|
Display
|
|||
|
Display Screen
|
Full-color 0.39'OLED screen，1024×768
|
||
|
Eyepiece
|
Pupil distance of eyepiece 48mm，Eyepiece magnification 14×
|
||
|
Magnification
|
1.6×~6.4×
|
2.3×~9.2×
|
3.2×~12.8×
|
|
Imaging
|
|||
|
Frame Rate
|
50Hz
|
||
|
Digital Zoom
|
1×~4× smooth zoom
|
||
|
Scene Modes
|
Enhance, highlight, natural
|
||
|
Color Palettes
|
White hot, black hot,customized red hot, green hot, iron red, blue heat
|
||
|
Picture-in-picture
|
on/off, the position is adjustable
|
||
|
Functions
|
|||
|
Wi-Fi/APP
|
Support Wi-Fi to share pictures and videos, connect to APP (IOS & Android) to control the device remotely
|
||
|
Compensation Modes
|
Scene compensation, shutter compensation, automatic compensation
|
||
|
Zero Calibration
|
50m/100m/200m/300m/500m
|
||
|
Gun Type Selection
|
10 sets of zero calibration configurations can be saved, no need to recalibrate for different instruments
|
||
|
Reticle
|
10 reticle styles, 6 colors, 10 levels of brightness
|
||
|
Others
|
Photo taking, video recording, hotspot tracking, Stadiametric rangefinder
|
||
|
Power Supply
|
|||
|
Battery Type
|
1× internal Battery + 1× external battery, rechargeable, change external battery without power cut off
|
||
|
Battery Operating Time
|
Battery continuous working time ≥ 10hrs
|
||
|
Interface
|
|||
|
USB
|
Type-C, It can supply external power and charge, and can read the data of memory card
|
||
|
Video Interface
|
Micro HDMI
|
||
|
Environmental Characteristics
|
|||
|
Operating Temperature
|
-30 ℃ ~ 50 ℃ (External power supply is required below -20℃)
|
||
|
Storage Temperature
|
-45℃~70℃
|
||
|
Humidity
|
Working and storage 10%～95%, non condensing
|
||
|
Shock
|
500G/1ms
|
||
|
Vibration
|
10Hz～150Hz～10Hz 0.15mm IEC60068-2-6
|
||
|
IP level
|
IP67
|
||
|
Certificate
|
RoHS, CE, FCC, EAC, UN38.3 (Battery certificate)
|
||
|
Physical Characteristics
|
|||
|
Internal Storage
|
16G
|
||
|
Weight（excl battery）
|
930g
|
940g
|
950g
|
|
Dimensions (excl eye mask)
|
367×107×69mm
|
367×107×69mm
|
377×107×69mm
|
|
Package Contents
|
|||
|
Standard
|
Thermal Imaging Riflescope, Lens Cover, Adapter, Battery, Charger, TYPE-C Data Cable, Micro HDMI Video Cable, Eye Mask, Picatinny
Tube Clip×2, Pouch, Shoulder strap, Quick Start Guide |
||
|
Optional
|
Battery, Remote Control
|
||
|
Detection Range
|
|||
|
Human：1.8m×0.5m
|
700m
|
1000m
|
1400m
|
|
Vehicle：2.3m×2.3m
|
1700m
|
2400m
|
3000m
|
|
Recognition Range
|
|||
|
Human：1.8m×0.5m
|
350m
|
500m
|
700m
|
|
Vehicle：2.3m×2.3m
|
700m
|
1000m
|
1400m
|
