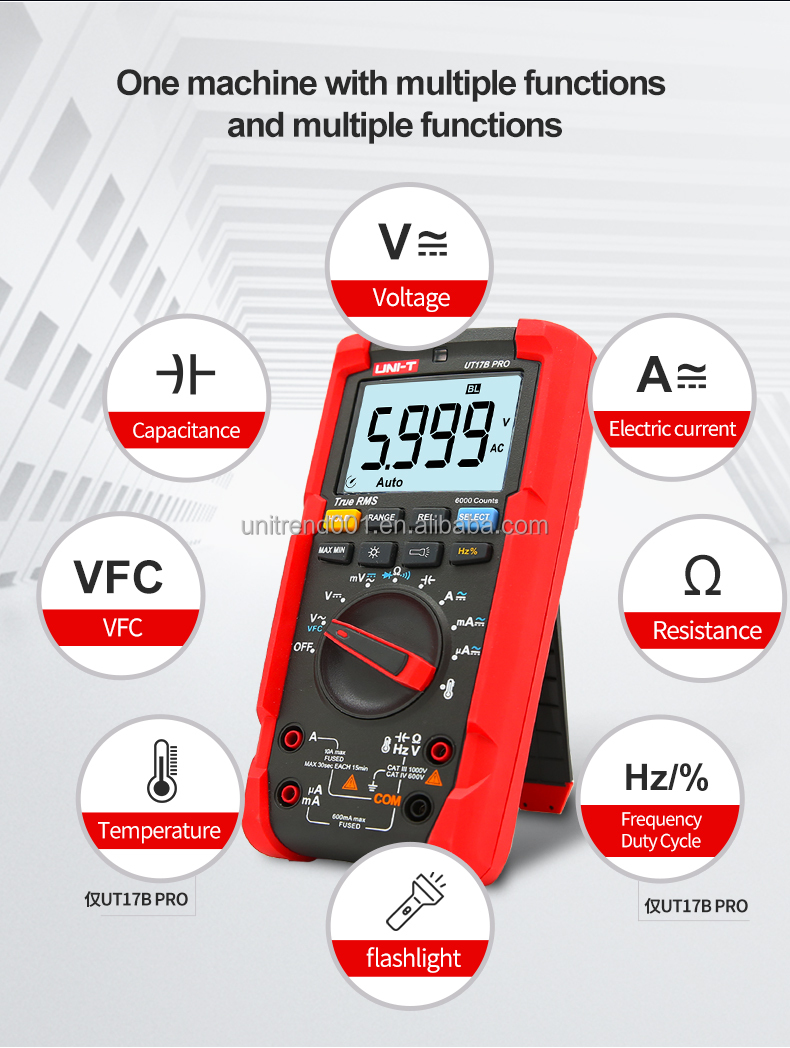

Description

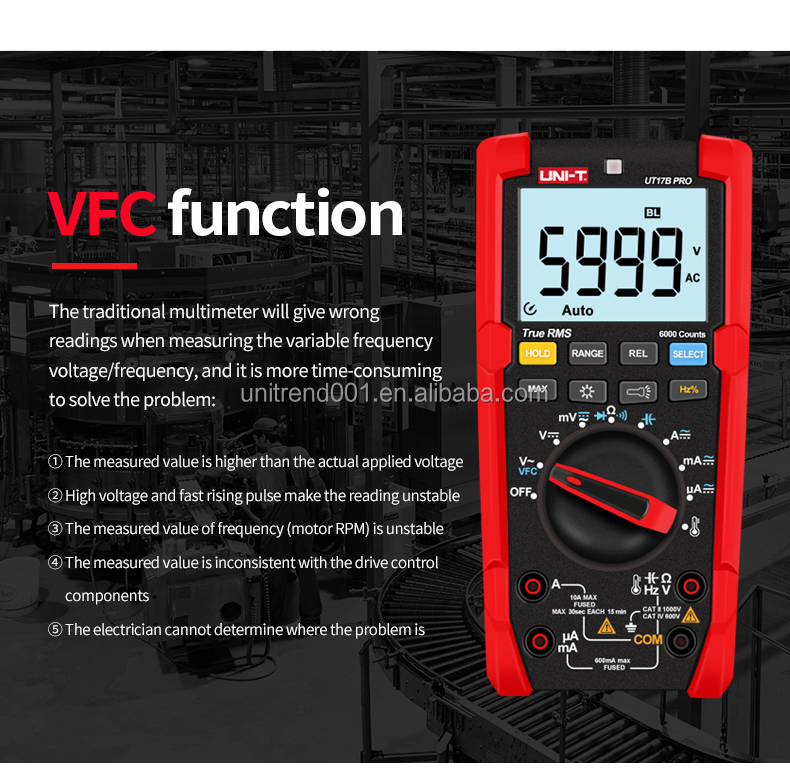

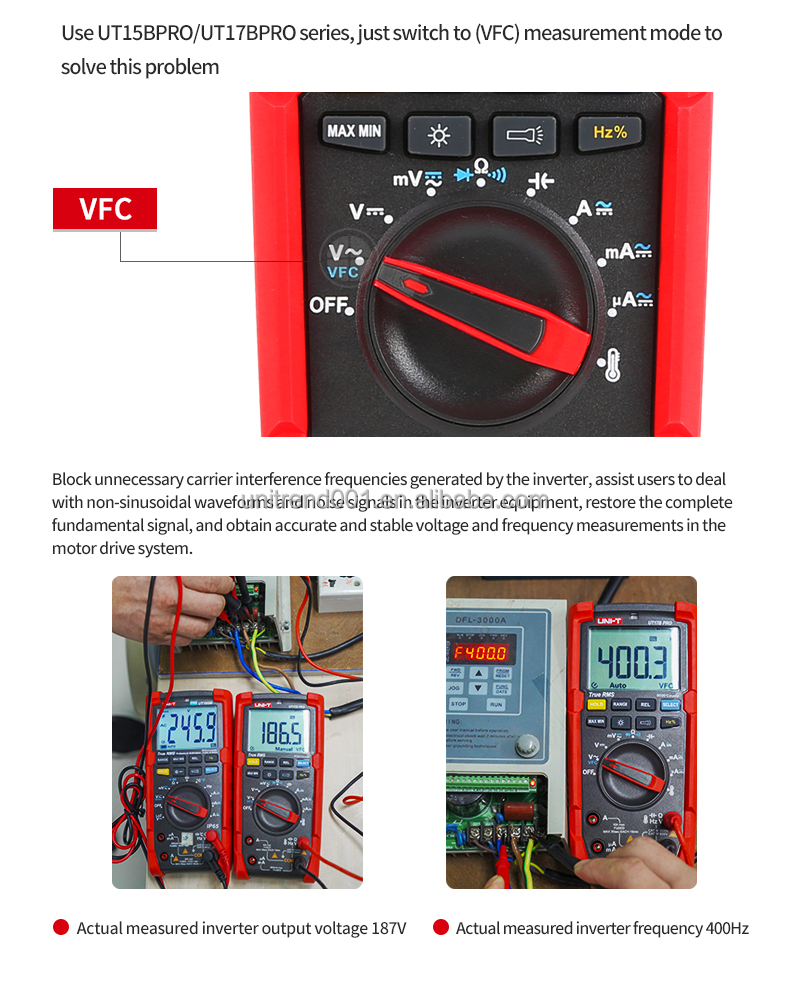

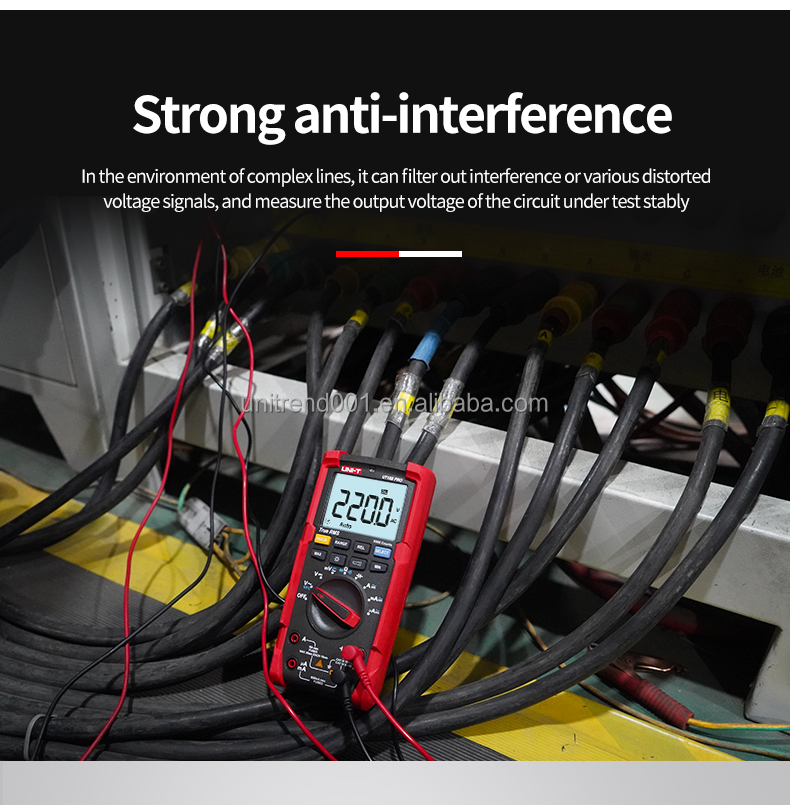

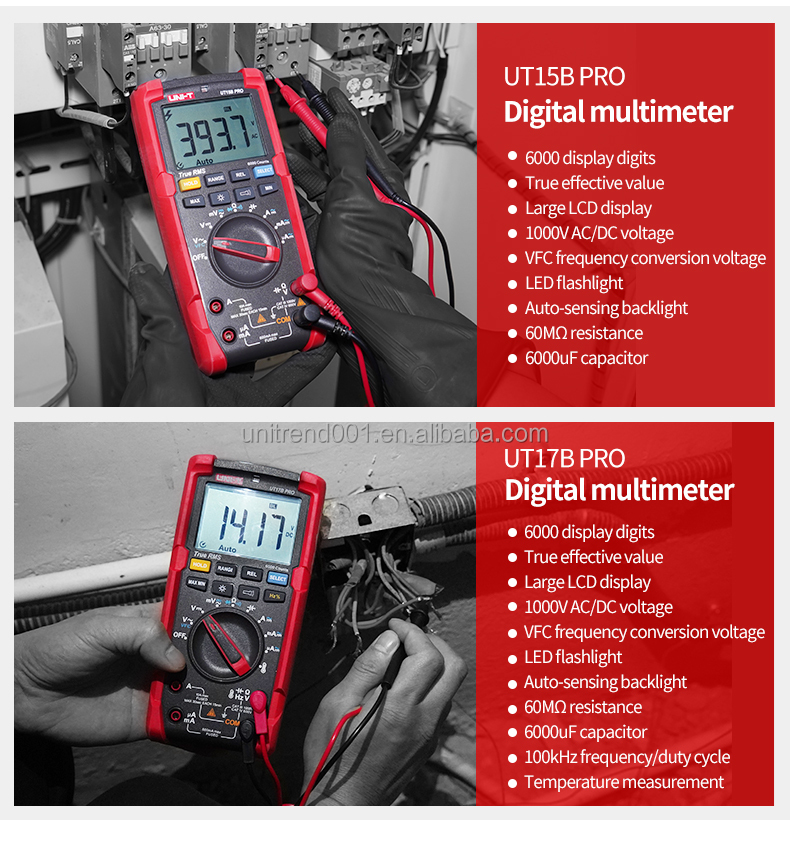

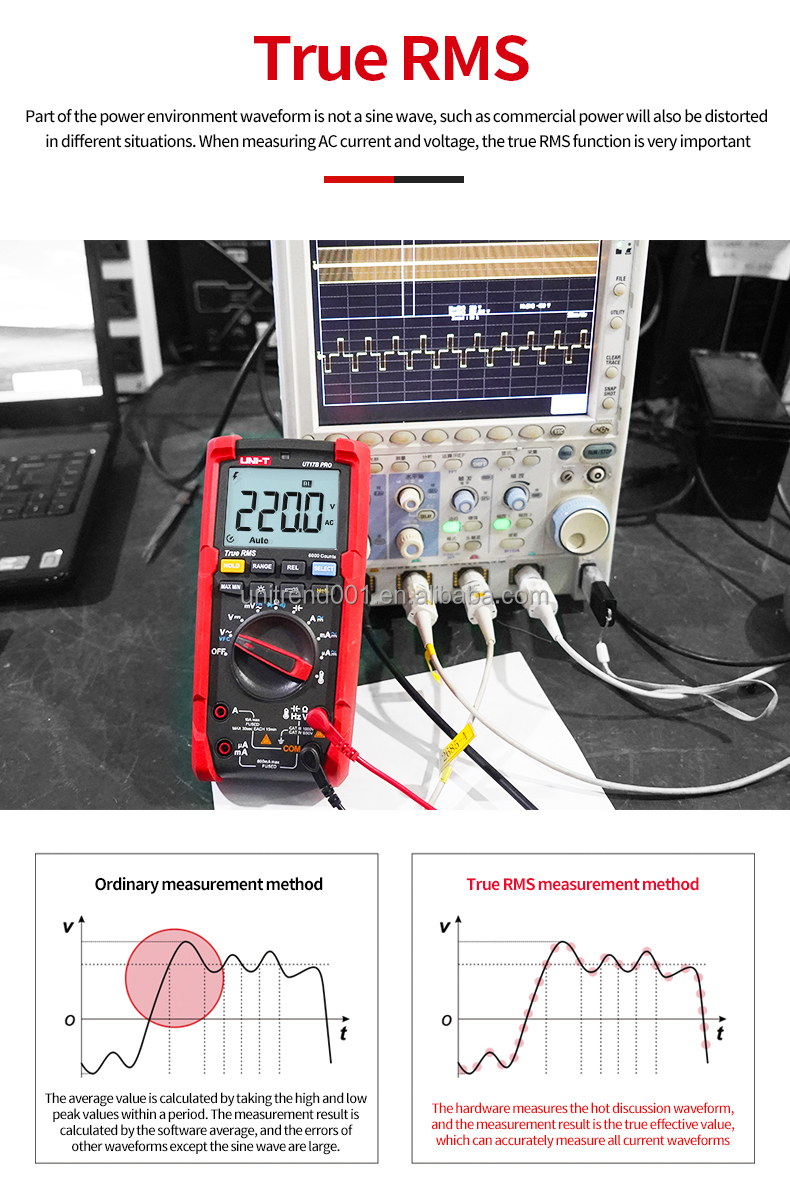

UT15B PRO/UT17B PRO are highly reliable, safe and durable true RMS multimeters with CAT III 1000V/CAT IV 600V ratings. Equipped with built-in VFC, it can filter interference, resulting in a more accurate voltage reading.
These meters come with gold plated test leads for quick and accurate measurement. UT15B PRO/UT17B PRO also provide full range 1000V protection, as well as 8kV
transient voltage protection, which can withstand sudden high voltage shocks.
transient voltage protection, which can withstand sudden high voltage shocks.

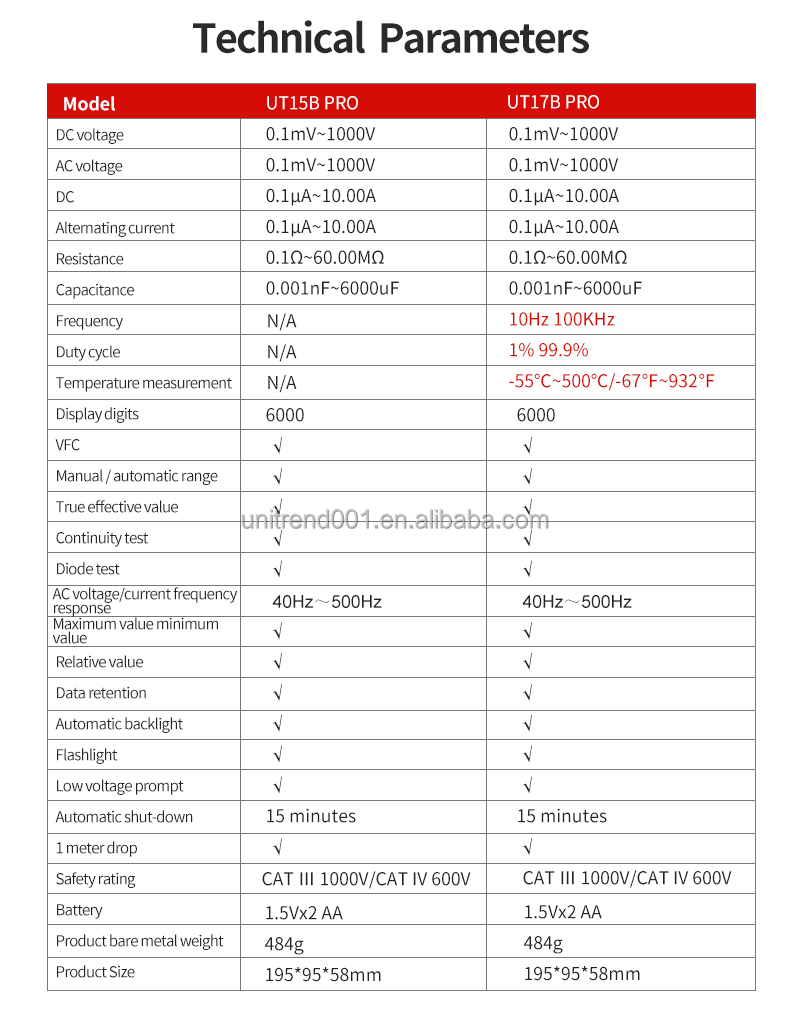

| Specifications | Range | UT15B PRO | UT17B PRO |
| Certifications | CE/RoHS/cETLus | ||
| Safety ratings | CAT III 1000V/CAT IV 600V | ||
| DC voltage (V) | 1000V | ±(0.5%+3) | ±(0.5%+3) |
| AC voltage (V) | 1000V | ±(1%+3) | ±(1%+3) |
| AC current (A) | 10A | ±(1%+3) | ±(1%+3) |
| DC current (A) | 10A | ±(0.8%+3) | ±(0.8%+3) |
| Resistance (Ω) | 60MΩ | ±(0.5%+2) | ±(0.5%+2) |
| Capacitance (F) | 6000μF | ±(2%+5) | ±(2%+5) |
| Frequency (Hz) | 10Hz~100kHz | ±(0.1%+3) | |
| Duty cycle | 1%~99% | ±(1%+4) | |

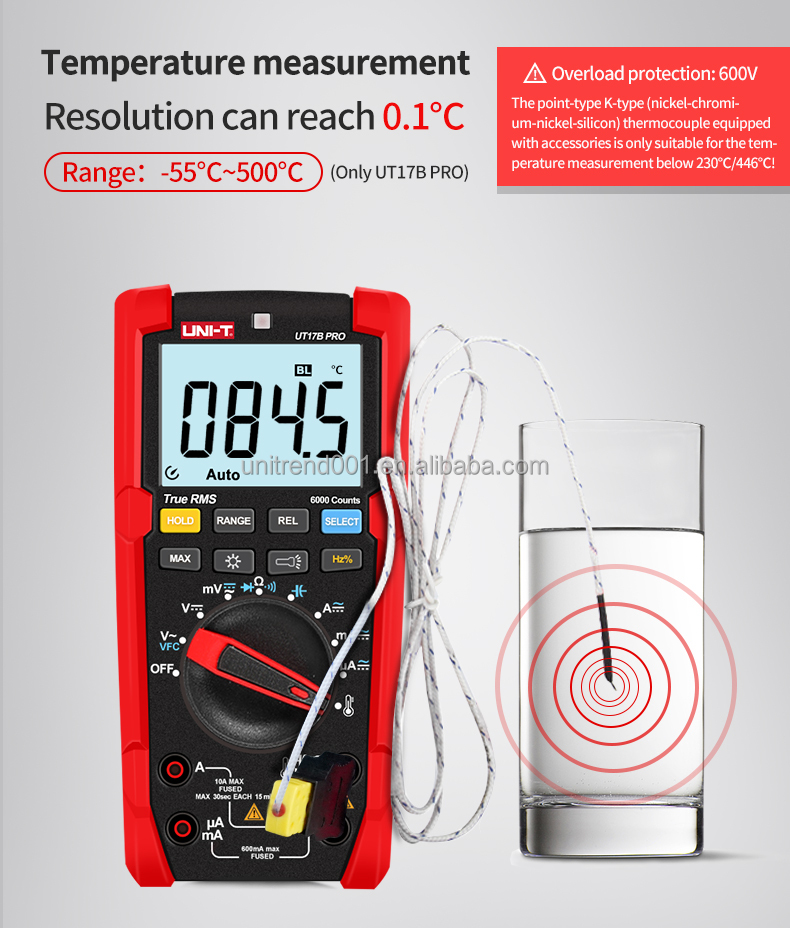

| Temperature (°C/℉) | -55℃~500℃/-67℉~932℉ | ±(2%+1) | |
| Display count | 6000 | 6000 | |
| AC frequency response | 40~500Hz | 40~500Hz | |
| General Characteristics | |||
| Power | 1.5V battery (LR6) x 2 | ||
| Product net weight | UT15B PRO: 484g；UT17B PRO: 484g | ||

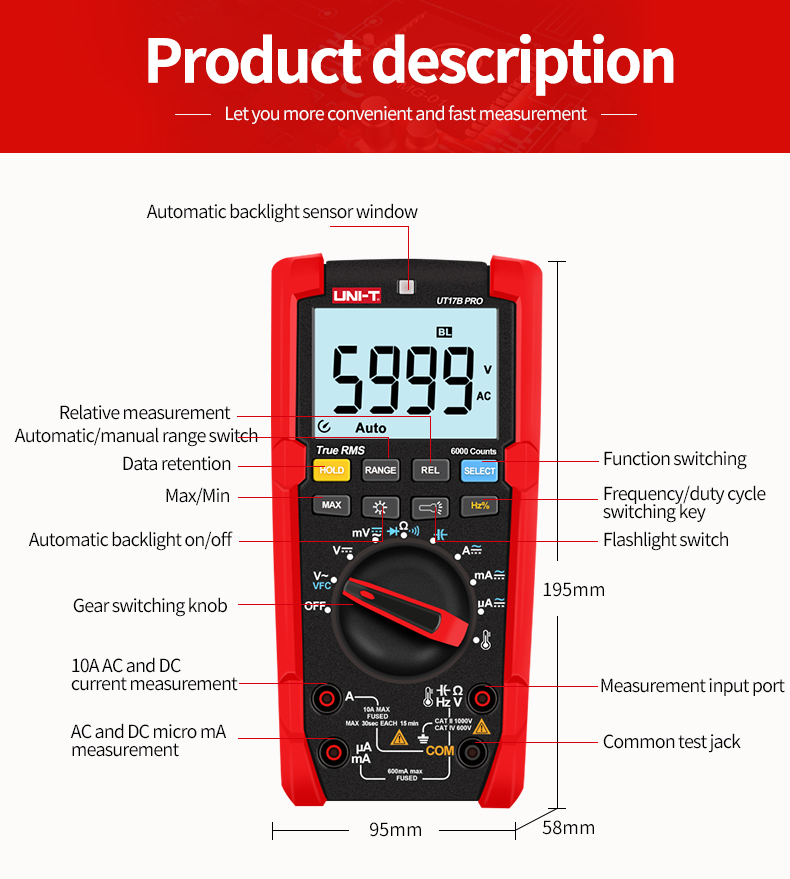

| Product size | 195mm x 95mm x 58mm | ||

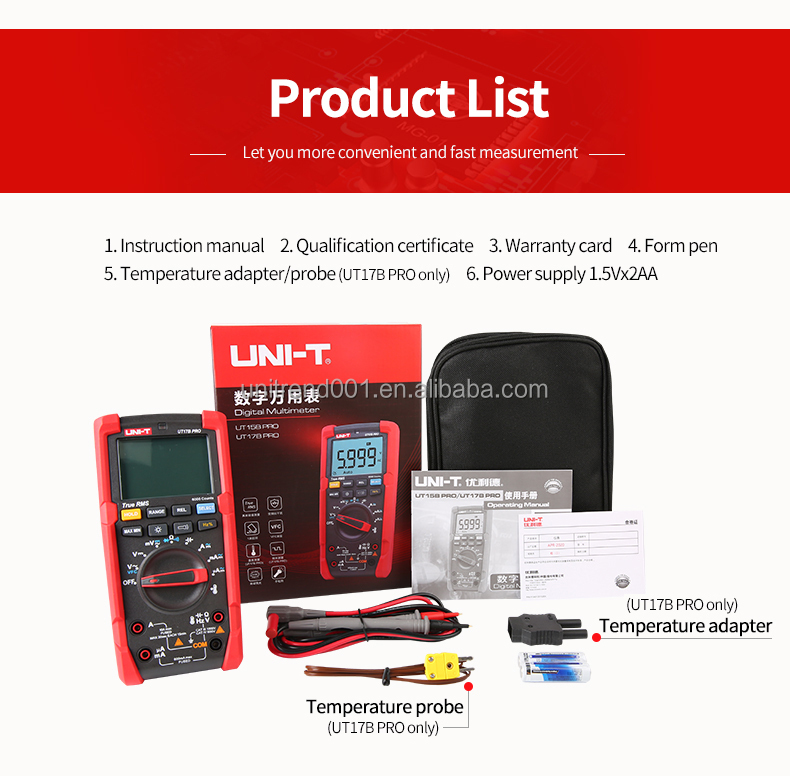

| Standard accessories | English manual, test lead, temperature probe (UT17B PRO) | ||
| Standard individual packing | Gift box, cloth bag | ||
| Standard quantity per carton | 10pcs | ||
| Standard carton measurement | 505mm x 355mm x 205mm | ||
| Standard carton gross weight | UT15B PRO: 8.8kg; UT17B PRO: 9.1kg | ||
