Description

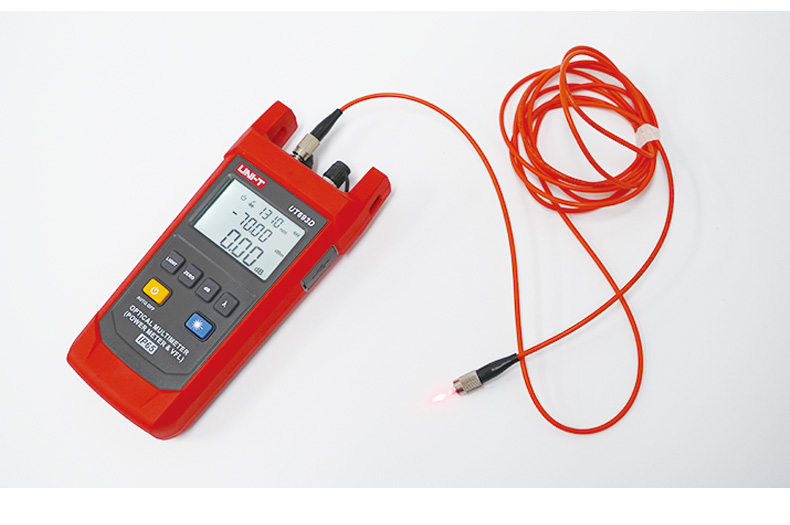

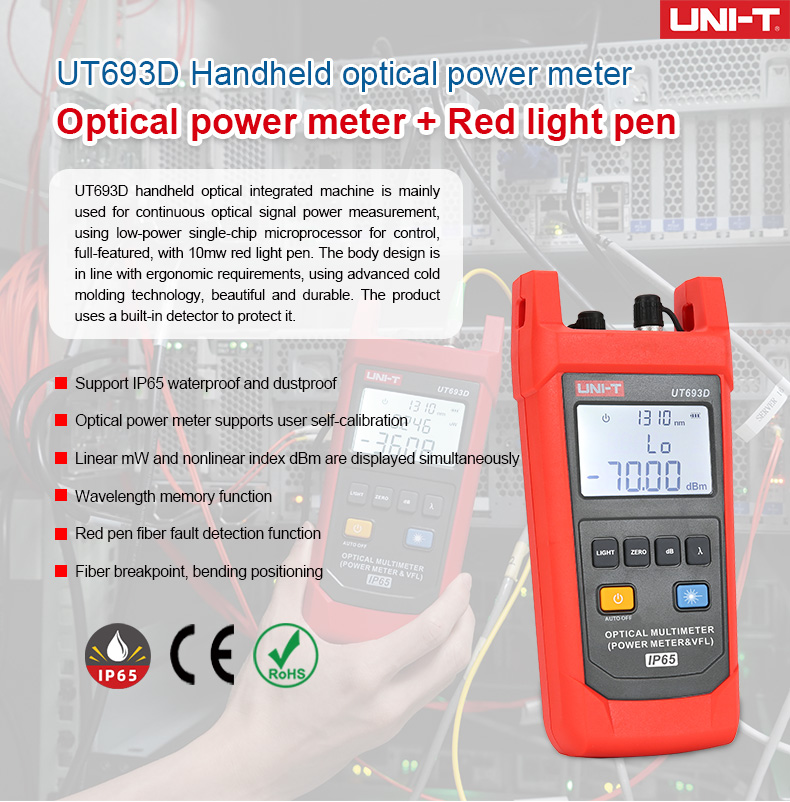

UT693D Optical Multimeter (Power Meter & VFL)
UT693D Optical Multimeter (Power Meter & VFL)

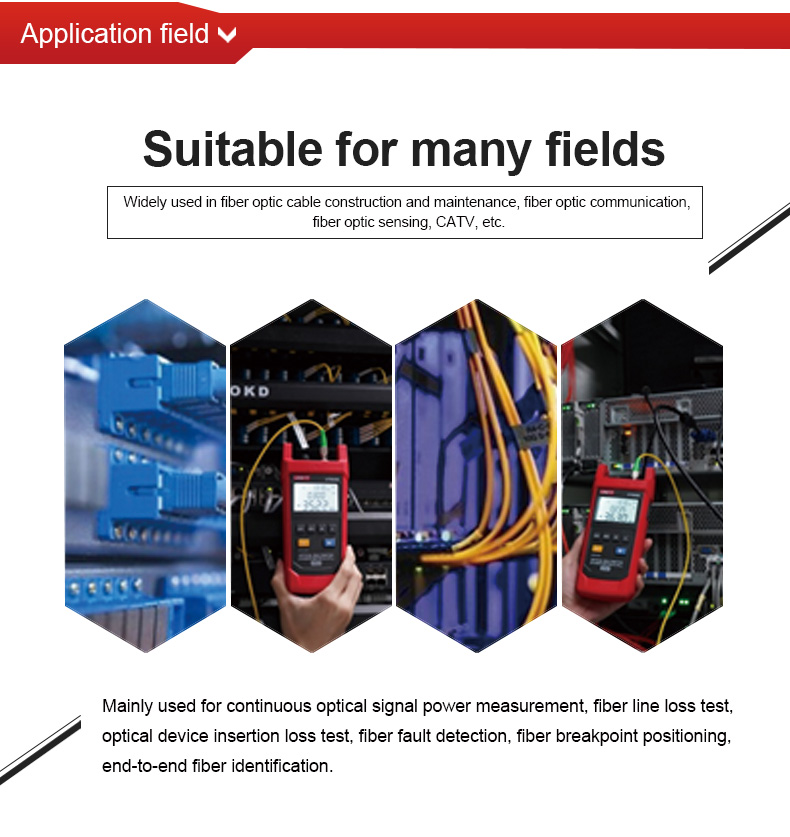

● Cable construction and maintenance
● Cable construction and maintenance
● Optical fiber communication
● Evaluation of optical equipment
● Production, installation, operation and maintenance of fiber optic transmission systems
● Optical engineering, production plant or facility maintenance
● Evaluation of optical equipment
● Production, installation, operation and maintenance of fiber optic transmission systems
● Optical engineering, production plant or facility maintenance
|

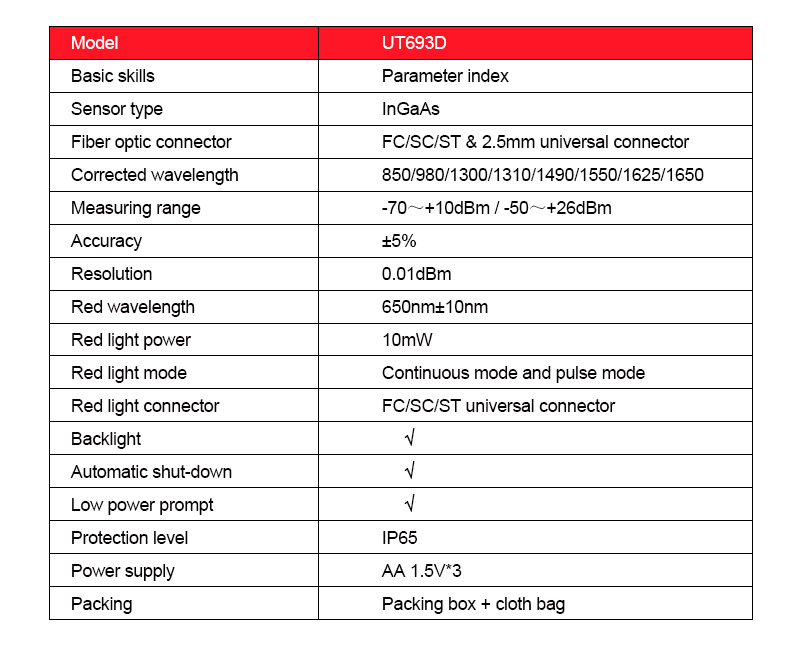

Specifications
|
Description
|
UT692D
|
UT692G
|
UT693D
|
|
|
Optical power meter
|
Wavelength range
|
800nm~1700nm
|
√
|
√
|
√
|
|
Calibrated wavelength
|

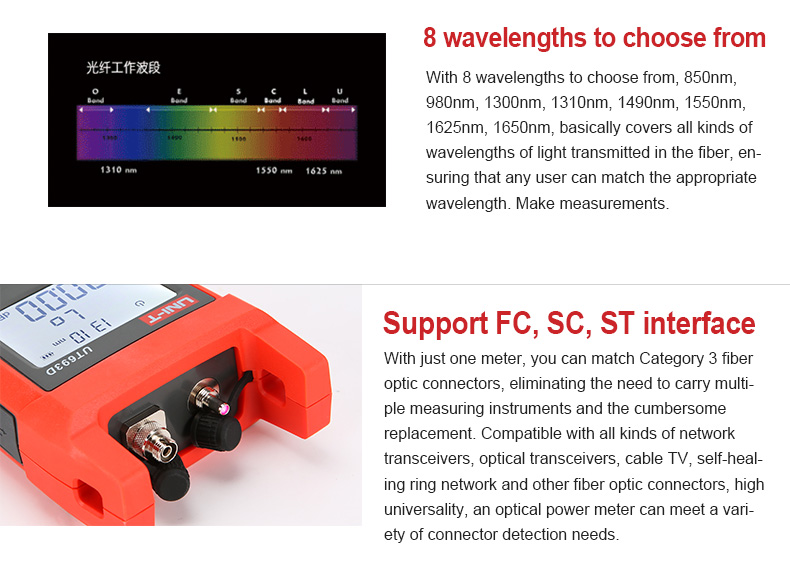

850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
|
||||
|
Measurement range
|
UT692D/UT693D: -70~10dBm, UT692G: -50~26dBm
|
||||
|
Uncertainty
|
±5%
|
||||
|
Display resolution
|

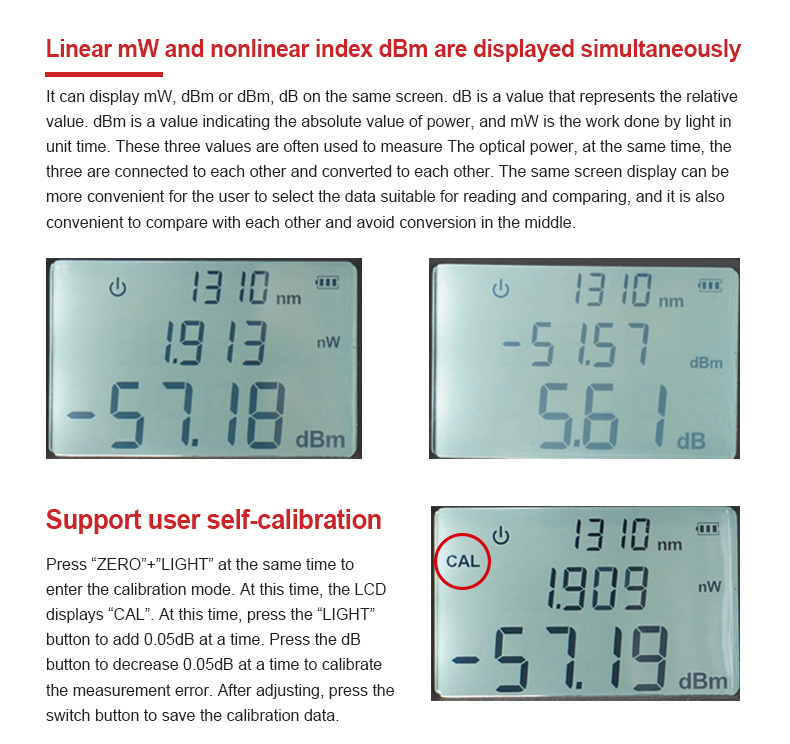

Linear: 0.1%, logarithmic: 0.01dBm
|
||||
|
Connector
|
FC/SC/ST
|
||||
|
Detector type
|
InGaAs
|
||||
|

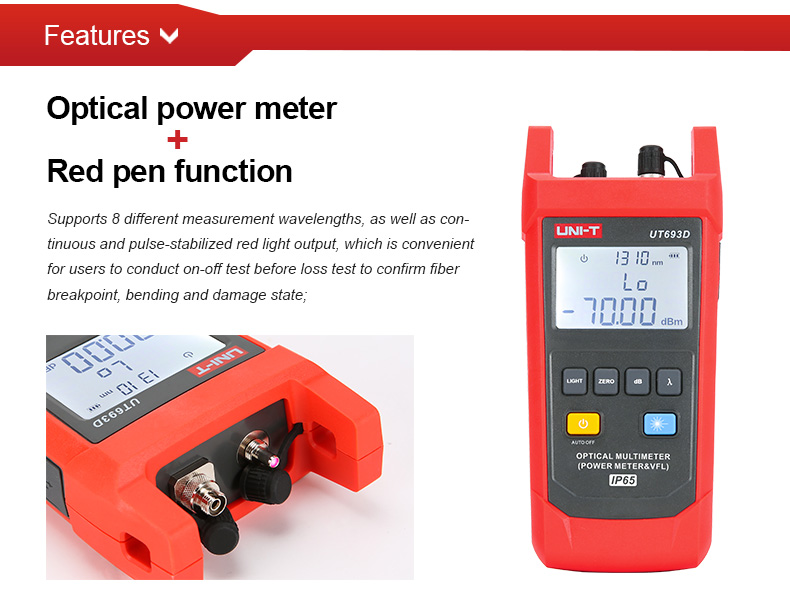

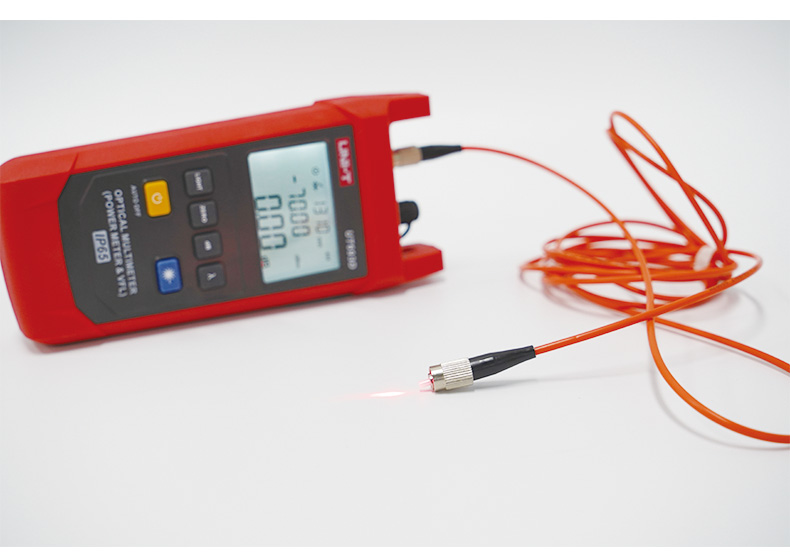

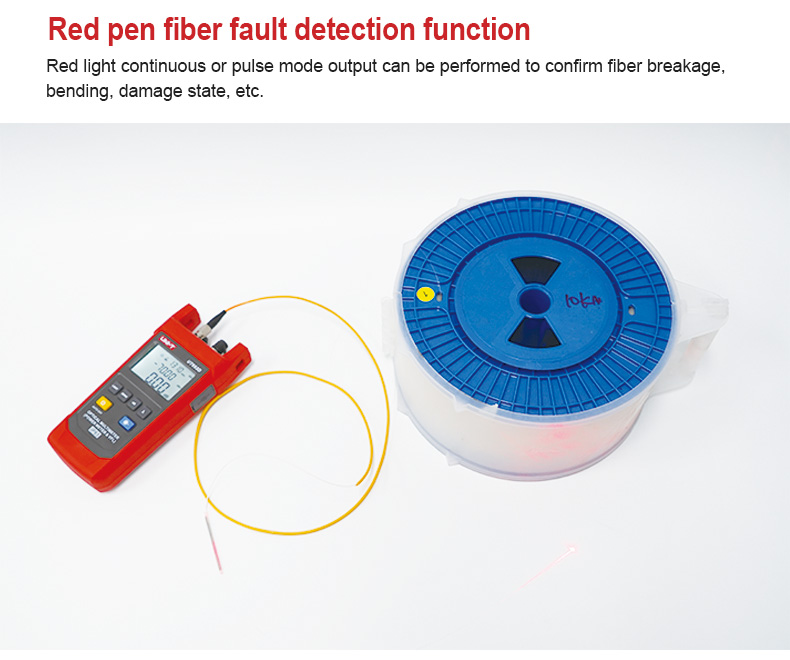

Visual faultlocator
|
Wavelength
|
650nm±10nm
|
|
|
√
|
|
Power
|
10mW (measurable optical fiber length: approximately 8~10km)
|
||||
|
Mode
|
Continuous/Pulse
|
||||
|
Connector
|
FC/SC/ST
|
||||
|
Flashlight
|
|
√
|
√
|
|
|
|
Features
|
|||||
|
Low battery indication
|
|
√
|
√
|
√
|
|
|
Auto power off
|
|
√
|
√
|
√
|
|
|
IP rating
|
|
IP65
|
IP65
|
IP65
|
|
|
Drop test
|
|
2m
|
2m
|
2m
|
|
|
General Characterisitics
|
|||||
|
Power
|
1.5V battery (LR6) x 3
|
||||
|
Display
|
63mm x 40mm
|
||||
|
Product color
|
Red and grey
|
||||
|
Product net weight
|
300g
|
||||
|
Product size
|
189mm x 87mm x 45mm
|
||||
|

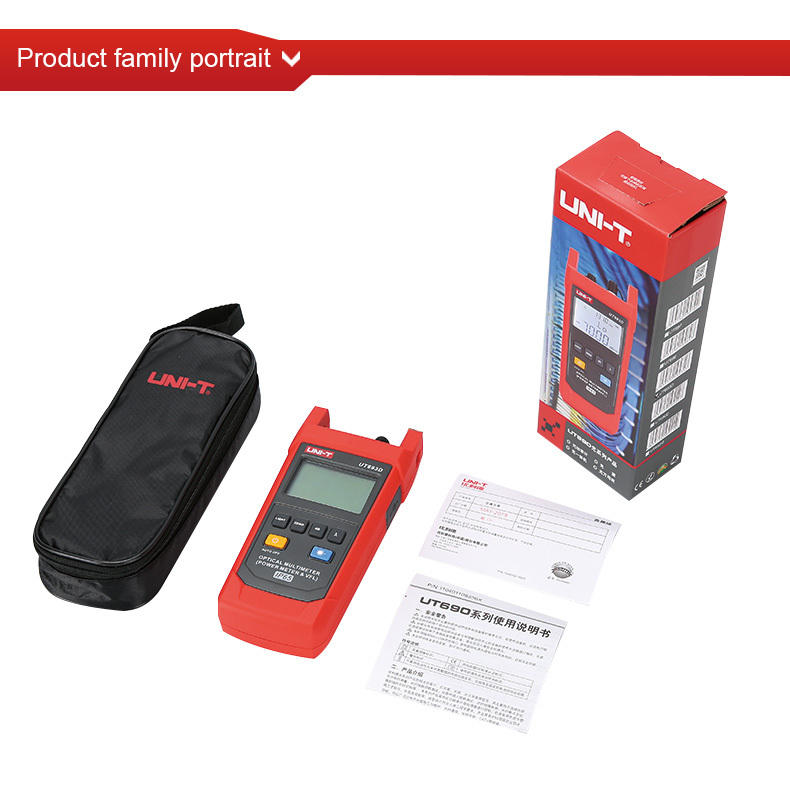

Standard accessories
|
Batteries, carrying bag
|
||||
|
Standard individual packing
|
Gift box, English manual
|
||||
|
Standard quantity per carton
|
10pcs
|
||||
|
Standard carton measurement
|
295mm x 250mm x 210mm
|
||||
|
Standard carton gross weight
|
5.66kg
|
||||
