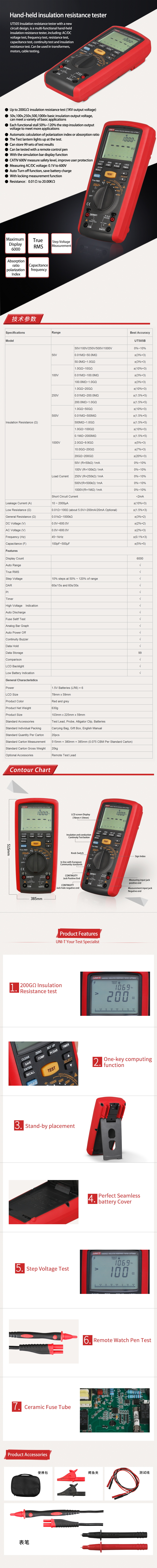

Description
UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance
tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and
automatically calculate resistance ratio to determine the insulation status.
Applications:
UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches,
electrical appliances, and insulated materials.
tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and
automatically calculate resistance ratio to determine the insulation status.
Applications:
UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches,
electrical appliances, and insulated materials.
| Specifications | Range | UT505A | UT505B | |
| Insulation resistance (Ω) | 50V | 50V/100V/250V/500V/1000V | 0%~10% | 0%~20% |
| 0.01MΩ~50MΩ | ±(3%+5) | ±(3%+3) | ||
| 50MΩ~1GΩ | ±(3%+3) | |||
| 100V | 1GΩ~10GΩ | ±(10%+3) | ||
| 0.01MΩ~100MΩ | ±(3%+5) | ±(3%+3) | ||
| 100MΩ~1GΩ | ±(3%+3) | |||
| 250V | 1GΩ~20GΩ | ±(10%+3) | ||
| 0.01MΩ~200MΩ | ±(1.5%+5) | ±(1.5%+5) | ||
| 200MΩ~1GΩ | ±(1.5%+5) | |||
| 500V | 1GΩ~50GΩ | ±(10%+3) | ||
| 0.01MΩ~500MΩ | ±(1.5%+5) | ±(1.5%+5) | ||
| 500MΩ~1GΩ | ±(1.5%+5) | |||
| 1000V | 1GΩ~100GΩ | ±(10%+3) | ||
| 0.1MΩ~2000MΩ | ±(1.5%+5) | ±(1.5%+5) | ||
| 2GΩ~9.9GΩ | ±(10%+3) | ±(5%+3) | ||
| 10GΩ~20GΩ | ±(20%+10) | ±(7%+3) | ||
| 20GΩ~200GΩ | ±(20%+3) | |||
| Load current | 50V (R=50kΩ) 1mA | 0%~10% | 0%~10% | |
| 100V (R=100kΩ) 1mA | 0%~10% | 0%~10% | ||
| 250V (R=250kΩ) 1mA | 0%~10% | 0%~10% | ||
| 500V (R=500kΩ) 1mA | 0%~10% | 0%~10% | ||
| 1000V (R=1MΩ) 1mA | 0%~10% | 0%~10% | ||
| Short circuit current | <2mA | <2mA | ||
| Leakage current (A) | 10~2000μA | ±(10%+3) | ||
| Low resistance (Ω) | 0.01Ω~20kΩ (about 5V/>200mA) | ±(1.5%+3) | ||
| 0.01Ω~100Ω (about 5V/>200mA/20mA optional) | ±(1.5%+3) | |||
| General resistance (Ω) | 0.01kΩ~10MΩ | ±(3%+3) | ||
| DC voltage (V) | 0V~600V | ±(2%+3) | ±(2%+3) | |
| AC voltage (V) | 0V~600V | ±(2%+3) | ±(1.5%+5) | |
| Frequency (Hz) | 45~1kHz | ±(0.1%+3) | ||
| Capacitance (F) | 100pF~500μF | ±(5%+5) | ||
| Features | ||||
| Display count | 6000 | 6000 | ||
| Auto range/True RMS | √ | √ | ||
| Step voltage | 10% steps at 50%~120% of range | √ | √ | |
| DAR | 60s/15s and 60s/30s | √ | √ | |
| PI/Timing measurement | √ | √ | ||
| Auto discharge | √ | √ | ||
| Auto fuse check | √ | |||
| Analog bar graph | √ | √ | ||
| Continuity buzzer | √ | √ | ||
| Comparison measurement | √ | √ | ||
| Low battery indication | √ | √ | ||
| General Characterisitics | ||||
| Power | 1.5V battery (LR6) x 6 | |||
| Display | 78mm x 59mm | |||
| Product color | Red and grey | |||
| Product net weight | 630g | |||
| Product size | 103mm x 225mm x 59mm | |||
| Standard accessories | Batteries, test leads, test probes, alligator clips | |||
| Standard individual packing | Carrying bag, gift box, English manual | |||
| Standard quantity per carton | 20pcs | |||
| Standard carton measurement | 515mm x 380mm x 385mm (0.075 CBM per standard carton) | |||
| Standard carton gross weight | 20.8kg | |||
| Optional accessory | Remote test lead | |||
