Description
UT303A+ Infrared thermometer
UT303A+ Infrared thermometer
1. 30:1 D:S ratio
1. 30:1 D:S ratio
2. Adjustable emissivity 0.1~1.0

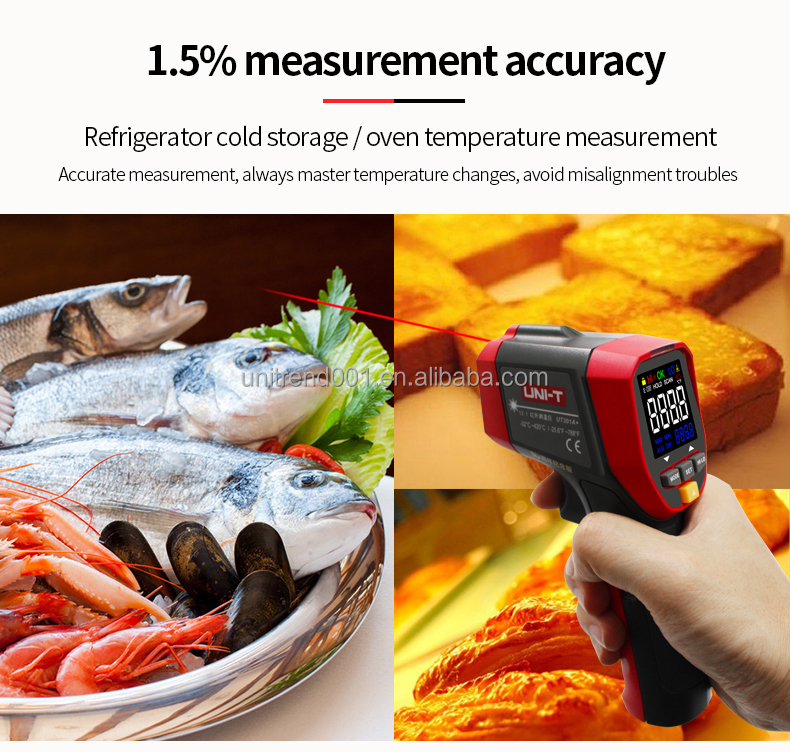

3. ±1.5℃ temperature measurement accuracy
4. User defined visual and audio alarm

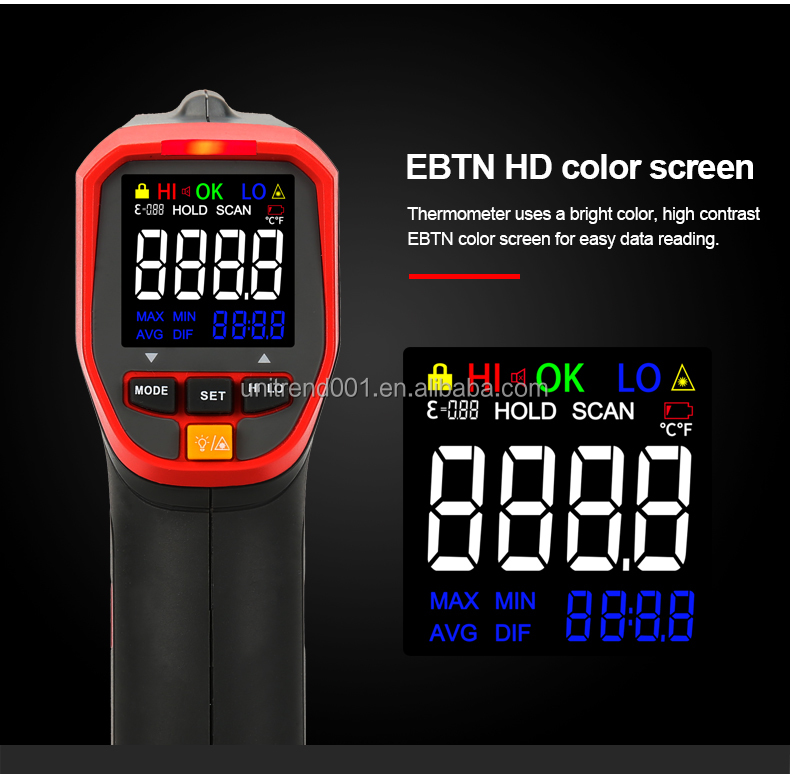

5. High contrast EBTN color display
6. MAX/MIN/AVG/DIFF/Hold modes
3. ±1.5℃ temperature measurement accuracy
4. User defined visual and audio alarm
5. High contrast EBTN color display
6. MAX/MIN/AVG/DIFF/Hold modes
Technical Specifications:

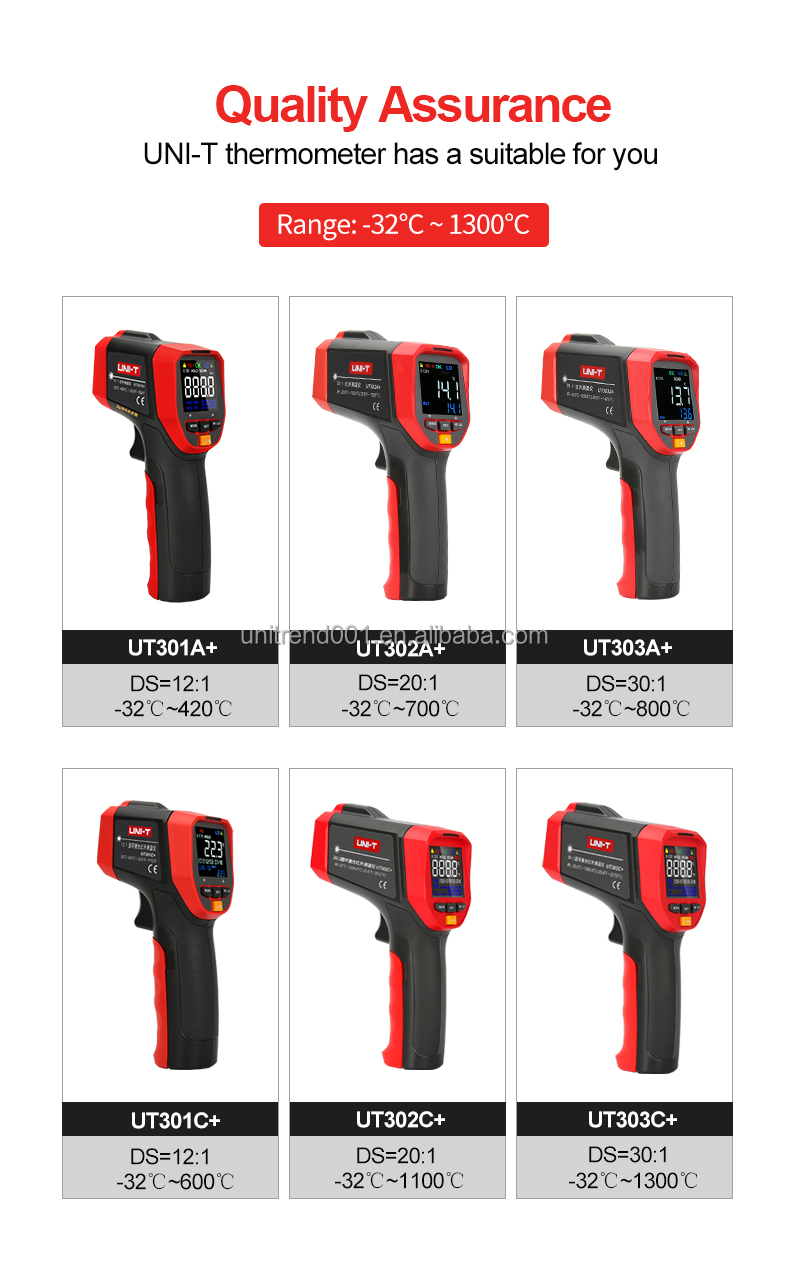

| Specifications | UT302A+ | UT302C+ | UT302D+ | UT303A+ | UT303C+ | UT303D+ |
| Temperature range | -32℃~700℃ | -32℃~1100℃ | -32℃~1100℃ | -32℃~800℃ | -32℃~1300℃ | -32℃~1300℃ |
| -25.6℉~1292℉ | -25.6℉~2012℉ | -25.6℉~2012℉ | -25.6℉~1472℉ | -25.6℉~2372℉ | -25.6℉~2372℉ | |
| Accuracy | ≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃) | |||||
| ≥32℉: ±3.0℉ or ±1.5%; <32℉: ±(3.0℉+0.1℉/℉) | ||||||
| Repeatability | 0.7℃ or 0.7% (1.5℉ or 0.7%) | |||||

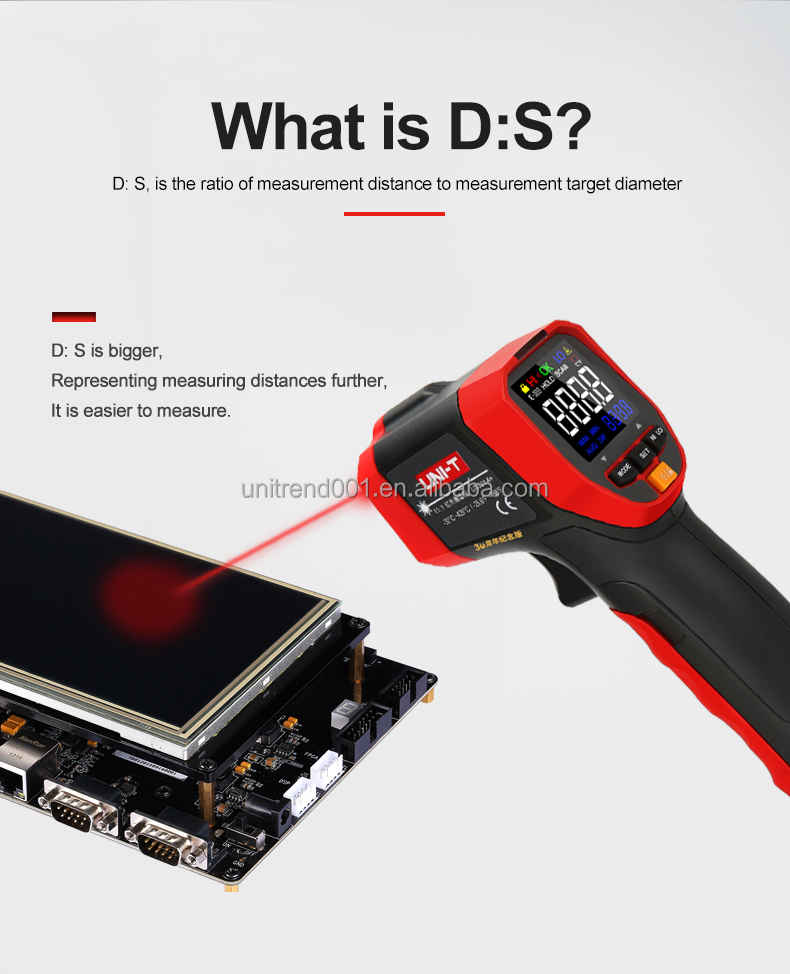

| D:S ratio | 20:1 | 30:1 | ||||
| Response time | 250ms | |||||
| Emissivity | 0.1~1.0 (adjustable, stores 5 sets of preset values) | |||||
| Spectral response | 8um~14um | |||||
| Laser power | < 1mW | |||||
| Features | ||||||
| Auto power off | √ | |||||
| Low battery indication | √ | |||||
| LCD display | Color EBTN | |||||

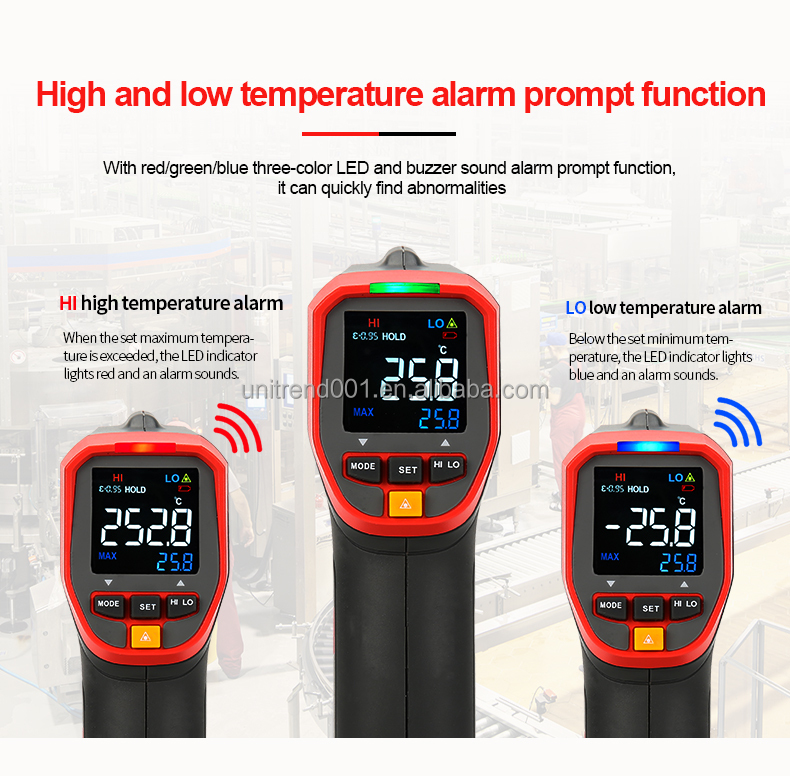

| High/low LED alarm | √ | |||||
| High/low audible alarm | √ | |||||
| Data hold/Lock measurement | √ | |||||

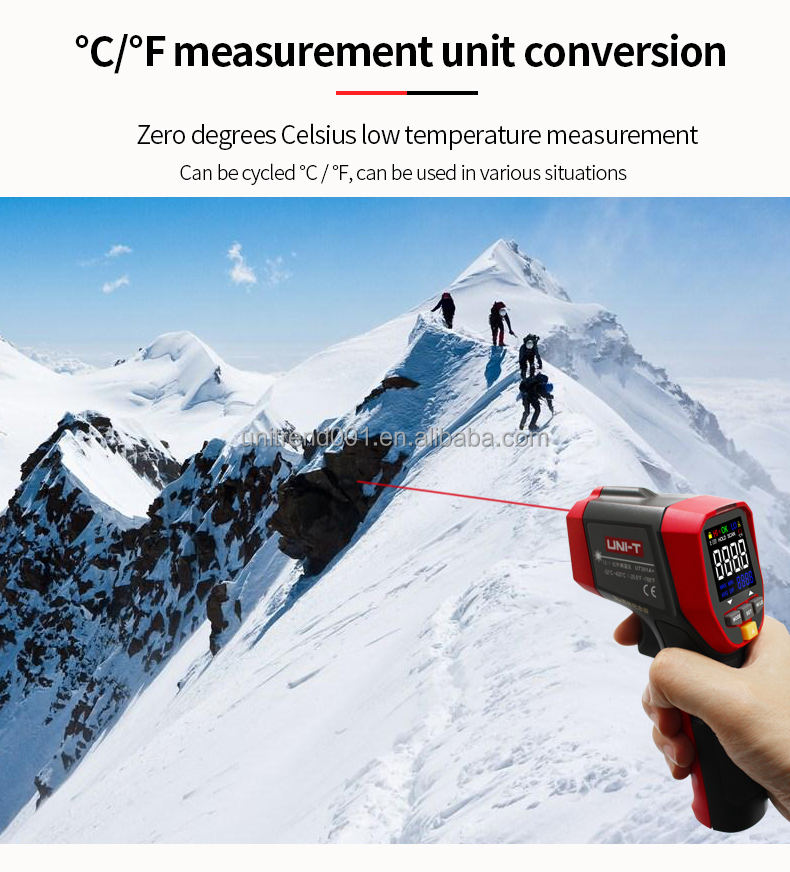

| ℃/℉ selection | √ | |||||
| MAX/MIN/AVG/DIFF mode | √ | |||||

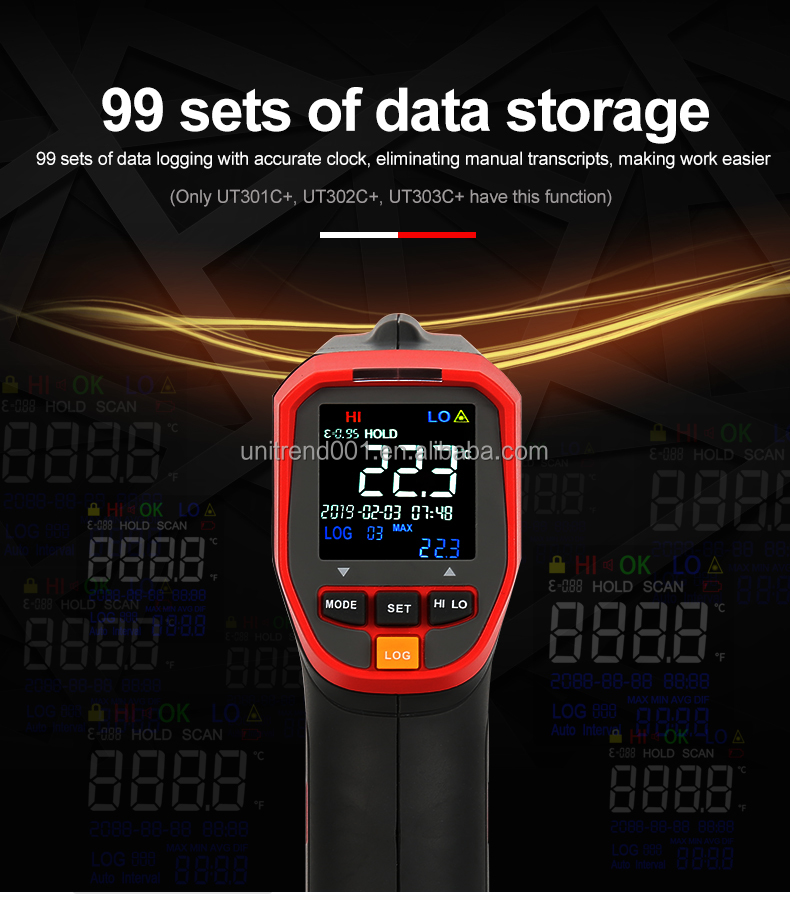

| Data storage with date and time | - | 99 | 99 | - | 99 | 99 |

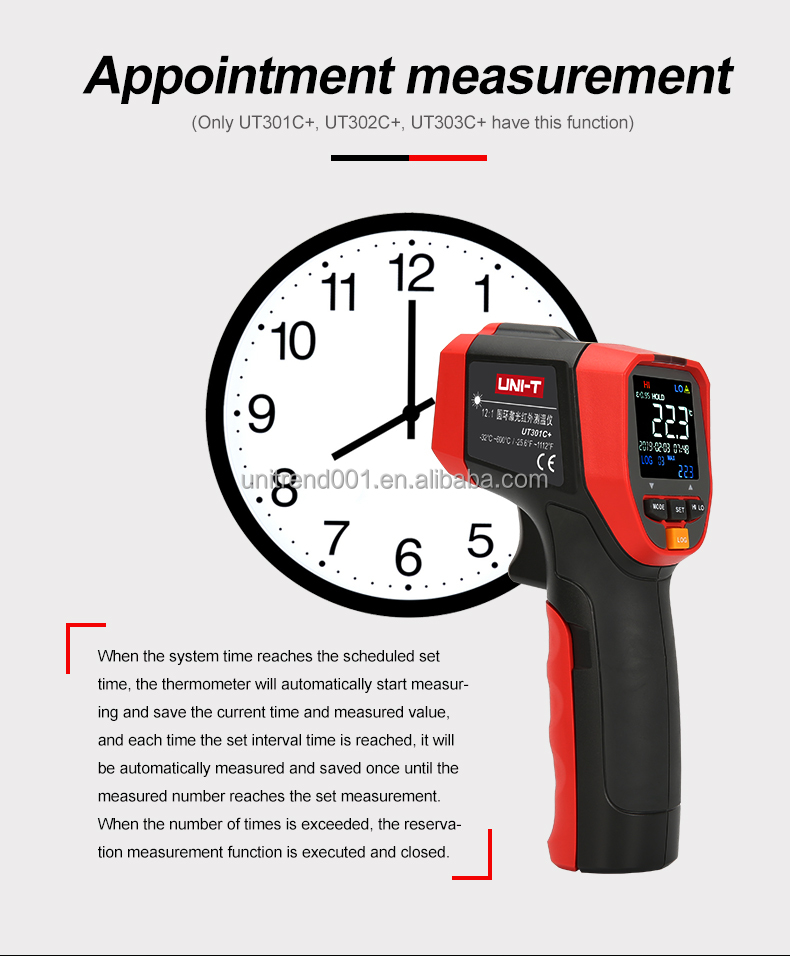

| Scheduled measurement | - | √ | √ | - | √ | √ |
| Backlight | √ | |||||
| Operating temperature | 0℃~50℃ (32℉~122℉) | |||||
| Storage temperature | -20℃~60℃ (-4℉~140℉) | |||||
| Operating humidity | <90%RH (non-condensing) | |||||
| Drop test | 1m | |||||
| Tripod mounting hole | √ | |||||
| General Characterisitics | ||||||
| Power | 9V battery | |||||
| Display | 35mm x 35mm | |||||
| Product color | Red and grey | |||||
| Product net weight | 310g | |||||
| Product size | 172mm x 113.5mm x 53mm | |||||

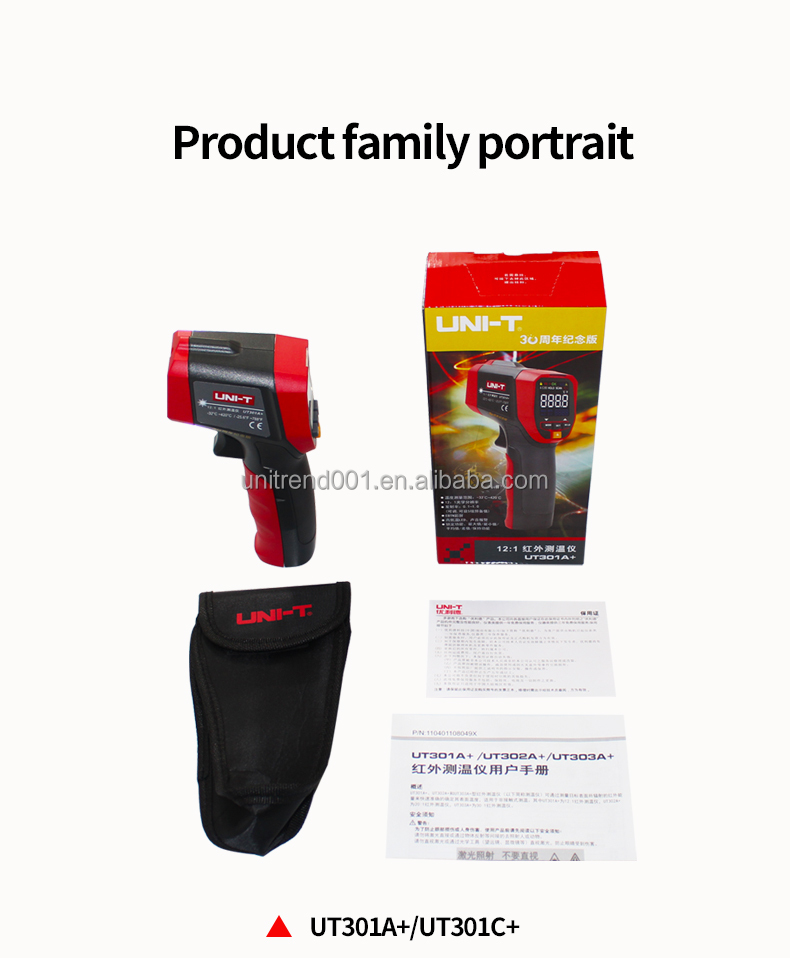

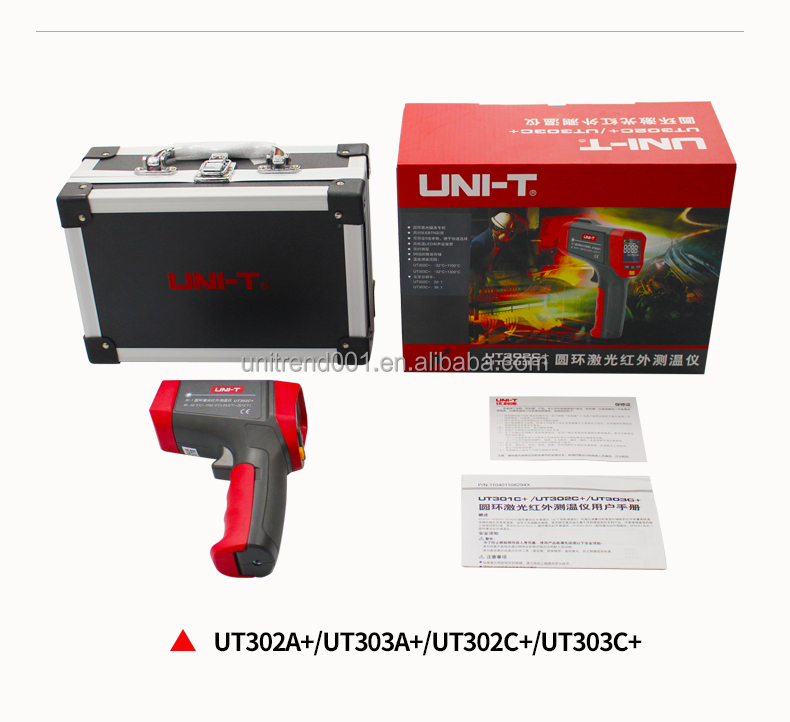

| Standard accessories | Battery, carrying bag | |||||
| Standard individual packing | Gift box, blister, English manual | |||||
| Standard quantity per carton | 10pcs | |||||
| Standard carton measurement | 425mm x 335mm x 365mm | |||||
| Standard carton gross weight | 6.65kg | |||||
