Description
UT303C+ Infrared thermometer
1. 30:1 D:S ratio
2. Adjustable emissivity 0.1~1.0
3. ±1.5℃ temperature measurement accuracy
4. User defined visual and audio alarm
5. High contrast EBTN color display
6. MAX/MIN/AVG/DIFF/Hold modes
3. ±1.5℃ temperature measurement accuracy
4. User defined visual and audio alarm
5. High contrast EBTN color display
6. MAX/MIN/AVG/DIFF/Hold modes
UT302A+ Infrared thermometer
UT302A+ Infrared thermometer
1. 20:1 D:S ratio 2. Adjustable emissivity 0.1~1.0
3. ±1.5℃ temperature measurement accuracy
4. User defined visual and audio alarm
5. High contrast EBTN color display
6. MAX/MIN/AVG/DIFF/Hold modes
1. 20:1 D:S ratio 2. Adjustable emissivity 0.1~1.0
3. ±1.5℃ temperature measurement accuracy
4. User defined visual and audio alarm
5. High contrast EBTN color display
6. MAX/MIN/AVG/DIFF/Hold modes
|

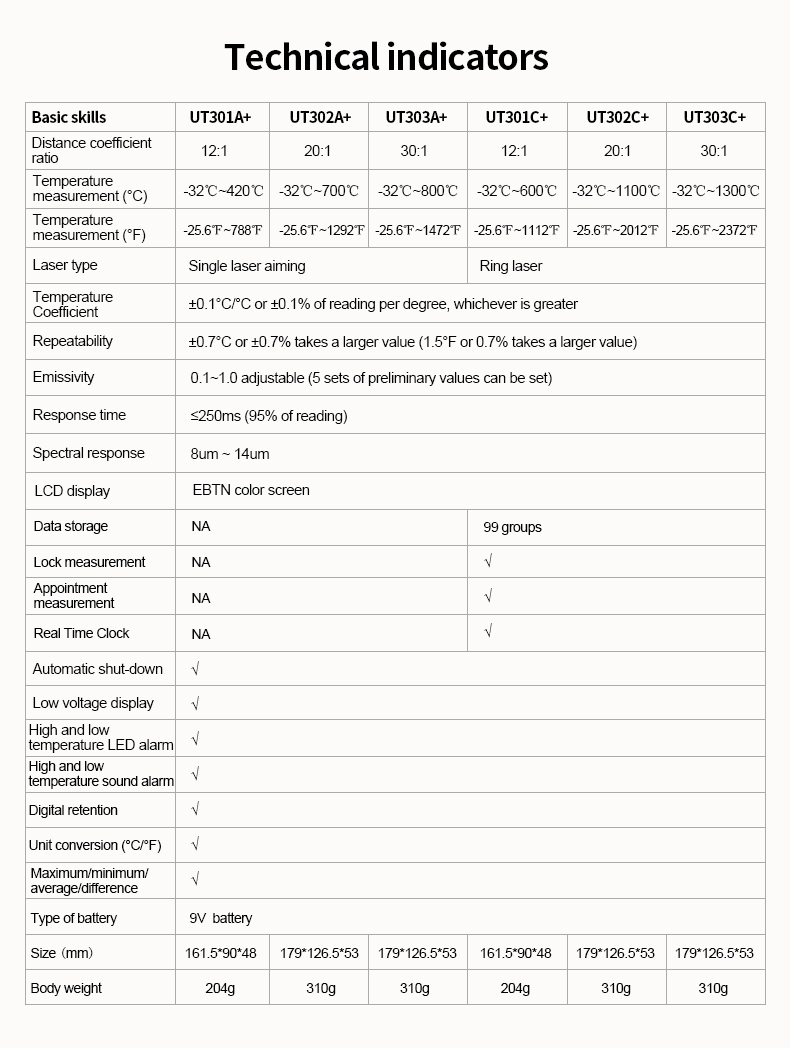

Specifications
|
UT302A+
|
UT302C+
|
UT302D+
|
UT303A+
|
UT303C+
|
UT303D+
|
|
Temperature range
|
-32℃~700℃
|
-32℃~1100℃
|
-32℃~1100℃
|
-32℃~800℃
|
-32℃~1300℃
|
-32℃~1300℃
|
|
-25.6℉~1292℉
|
-25.6℉~2012℉
|
-25.6℉~2012℉
|
-25.6℉~1472℉
|
-25.6℉~2372℉
|
-25.6℉~2372℉
|
|
|
Accuracy
|
≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃)
|
|||||
|
≥32℉: ±3.0℉ or ±1.5%; <32℉: ±(3.0℉+0.1℉/℉)
|
||||||
|
Repeatability
|
0.7℃ or 0.7% (1.5℉ or 0.7%)
|
|||||
|
D:S ratio
|
20:1
|
30:1
|
||||
|
Response time
|
250ms
|
|||||
|
Emissivity
|
0.1~1.0 (adjustable, stores 5 sets of preset values)
|
|||||
|
Spectral response
|
8um~14um
|
|||||
|
Laser power
|
< 1mW
|
|||||
|
Features
|
||||||
|
Auto power off
|
√
|
|||||
|
Low battery indication
|
√
|
|||||
|
LCD display
|
Color EBTN
|
|||||
|
High/low LED alarm
|
√
|
|||||
|
High/low audible alarm
|
√
|
|||||
|
Data hold/Lock measurement
|
√
|
|||||
|
℃/℉ selection
|
√
|
|||||
|
MAX/MIN/AVG/DIFF mode
|
√
|
|||||
|
Data storage with date and time
|
-
|
99
|
99
|
-
|
99
|
99
|
|
Scheduled measurement
|
-
|
√
|
√
|
-
|
√
|
√
|
|
Backlight
|
√
|
|||||
|
Operating temperature
|
0℃~50℃ (32℉~122℉)
|
|||||
|
Storage temperature
|
-20℃~60℃ (-4℉~140℉)
|
|||||
|
Operating humidity
|
<90%RH (non-condensing)
|
|||||
|
Drop test
|
1m
|
|||||
|
Tripod mounting hole
|
√
|
|||||
|
General Characterisitics
|
||||||
|
Power
|
9V battery
|
|||||
|
Display
|
35mm x 35mm
|
|||||
|
Product color
|
Red and grey
|
|||||
|
Product net weight
|
310g
|
|||||
|
Product size
|
172mm x 113.5mm x 53mm
|
|||||
|
Standard accessories
|
Battery, carrying bag
|
|||||
|
Standard individual packing
|
Gift box, blister, English manual
|
|||||
|
Standard quantity per carton
|
10pcs
|
|||||
|
Standard carton measurement
|
425mm x 335mm x 365mm
|
|||||
|
Standard carton gross weight
|
6.65kg
|
|||||
