Description

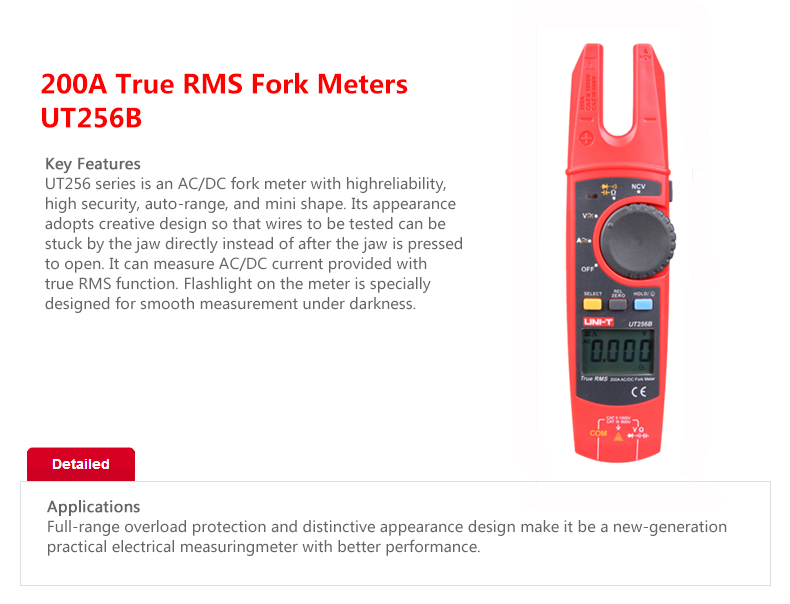

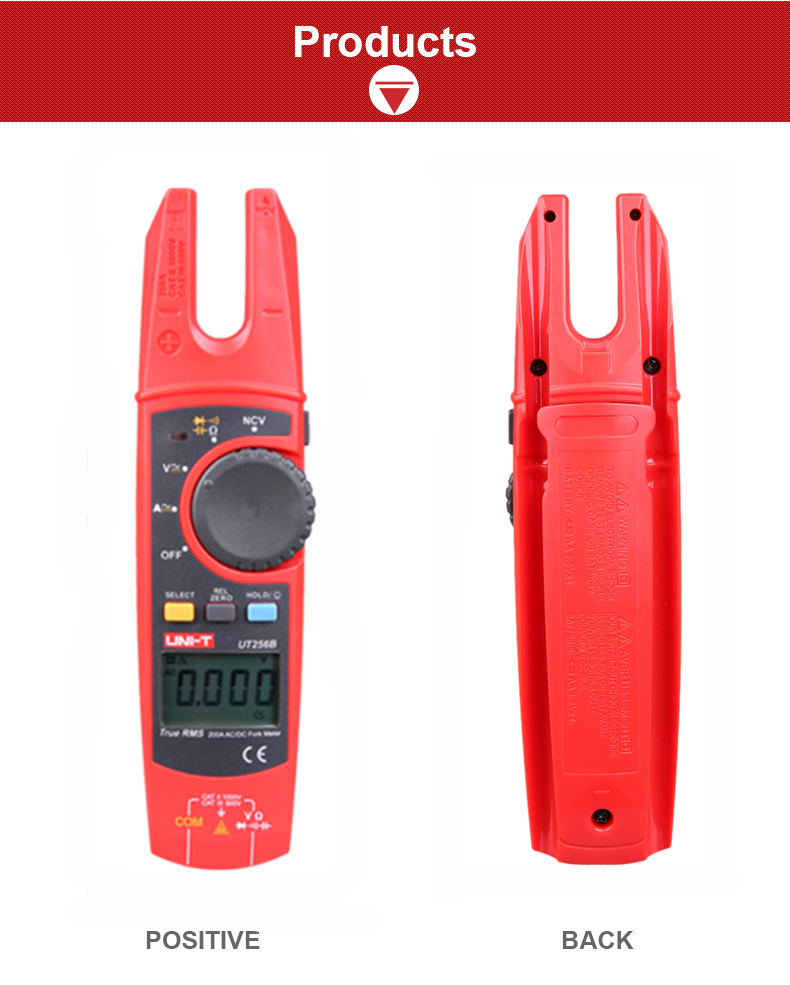

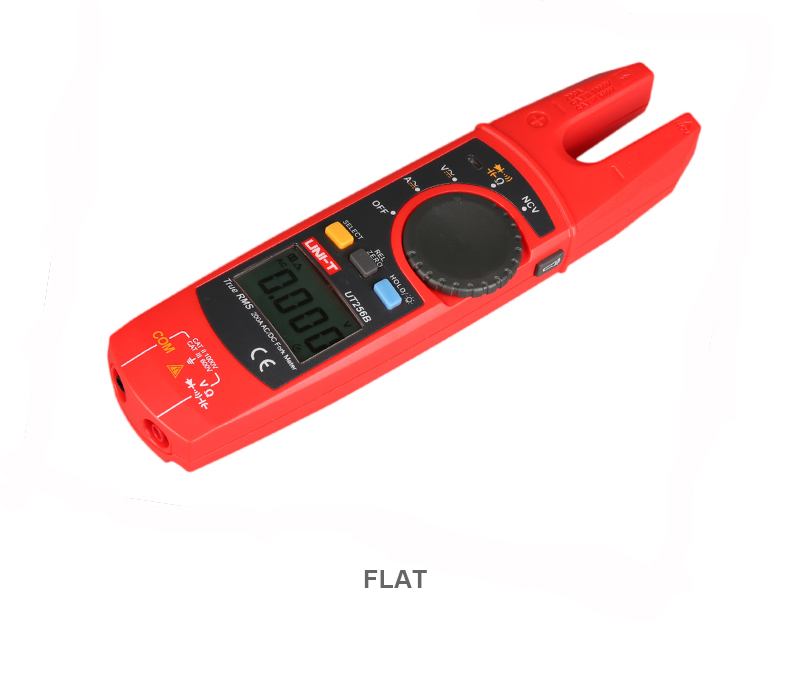

UT256B 200A True RMS Fork Meter
UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the 'fork' to the labeled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure.
Features
● Auto range ● True RMS
● Data hold
● Auto power off
● Continuity buzzer
● Low battery indication: ≤2.4V
● Input protection
● LCD backlight
● Data hold
● Auto power off
● Continuity buzzer
● Low battery indication: ≤2.4V
● Input protection
● LCD backlight
（Notice please: battery no include!）
|
Specifications
|
Range
|
UT256B
|
|
Certifications
|
CE/RoHS/cETLus
|
|
|
Safety ratings
|
CAT II 1000V, CAT III 600V
|
|
|
AC current (A)
|
200A
|
±(2.5%+5)
|
|
DC current (A)
|
200A
|
±(2.5%+5)
|
|
AC voltage (V)
|
750V
|
±(1.2%+3)
|
|
DC voltage (V)
|
1000V
|
±(0.8%+3)
|
|
Resistance (Ω)
|
60MΩ
|
±(1%+2)
|
|
Capacitance (F)
|
60mF
|
±(4%+20)
|
|
Display count
|
|
6000
|
|
Diode test
|
About 3V
|
√
|
|
NCV
|
|
√
|
|
Zero mode
|
|
√
|
|
Relative mode
|
|
√
|
|
General Characterisitics
|
||
|
Power
|
1.5V battery (LR6) x 2
|
|
|
Display
|
36.5mm x 24mm
|
|
|
Product net weight
|
248g
|
|
|
Product size
|
210mm x 53mm x 35mm
|
|
|

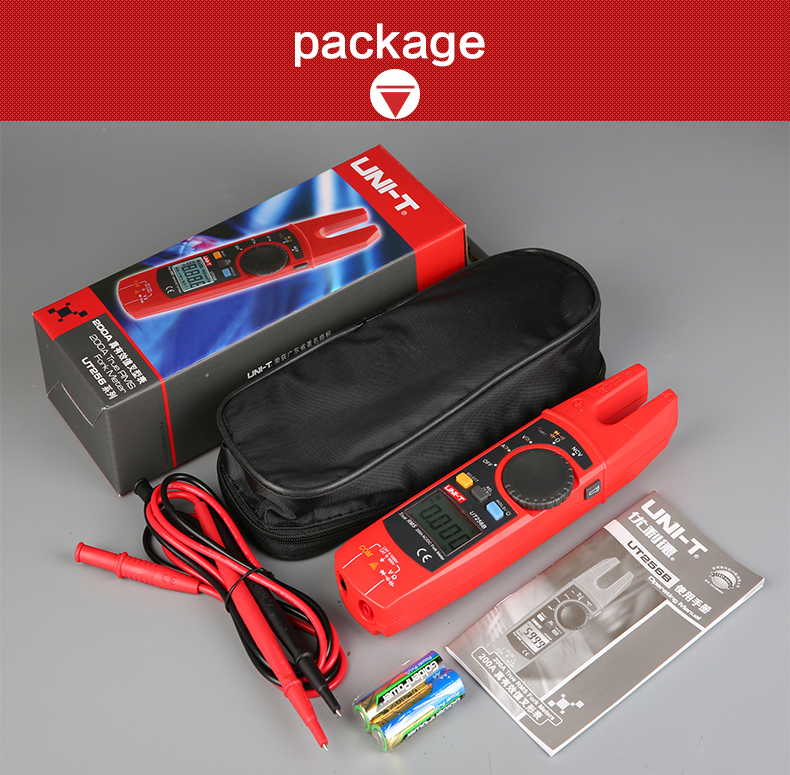

Standard accessories
|
Batteries, test leads, English manual
|
|
|
Standard individual packing
|
Gift box, carrying bag
|
|
|
Standard quantity per carton
|
20pcs
|
|
|
Standard carton measurement
|
485mm x 310mm x 205mm
|
|
|
Standard carton gross weight
|
9.5kg
|
|
