Description

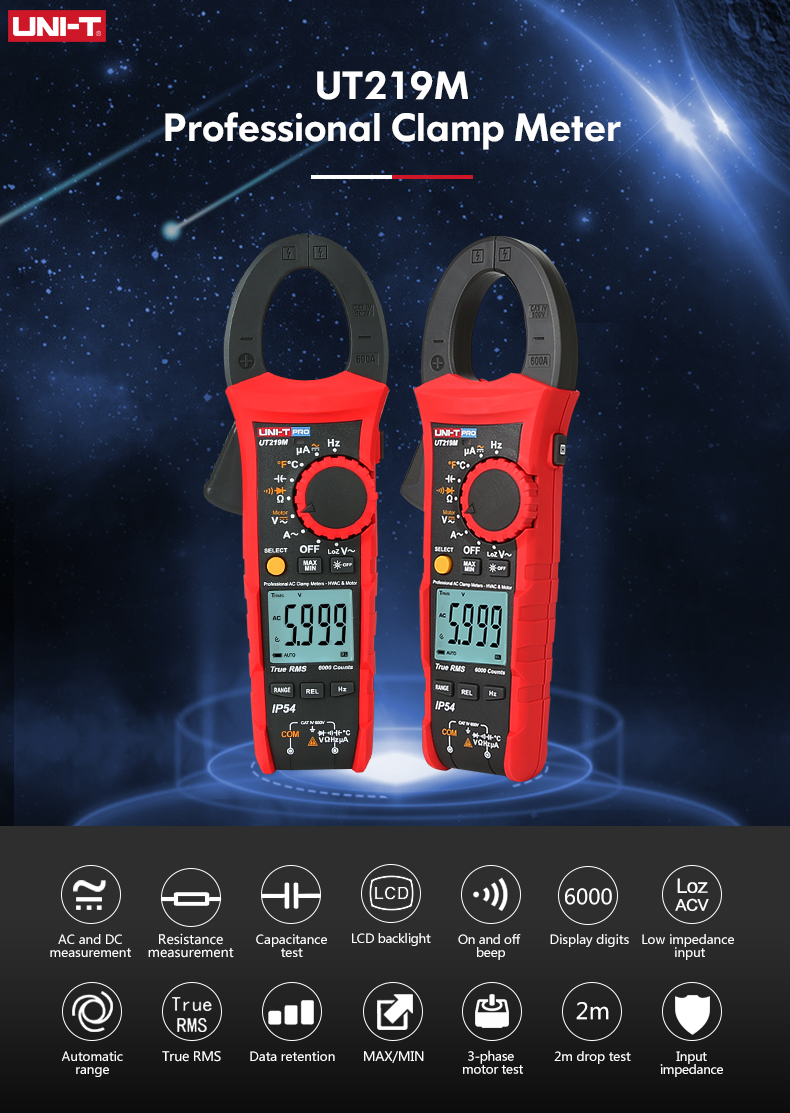

UT219M Professional Clamp Meter
UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians,HVAC/R and motor service technicians.
|

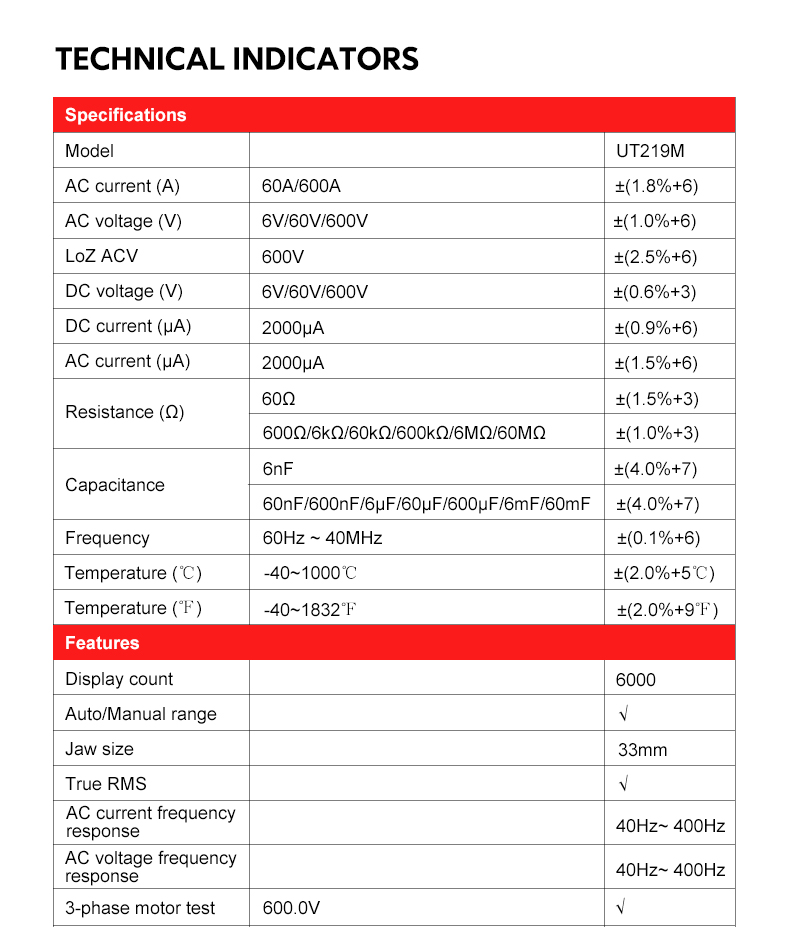

Specifications
|
Range
|
UT219M
|
|
AC current (A)
|
600A
|
±(1.8%+6)
|
|
AC voltage (V)
|
600V
|
±(1%+6)
|
|
DC voltage (V)
|
600V
|
±(0.6%+3)
|
|
LoZ ACV
|
600V
|
±(2.5%+6)
|
|
Resistance (Ω)
|
60MΩ
|
±(1%+3)
|
|
Capacitance (F)
|
60mF
|
±(4%+7)
|
|
Frequency (Hz)
|
600Hz~40MHz
|
±(0.1%+5)
|
|
Temperature
|
-40~1000℃
|
±(2%+5℃)
|
|
-40~1832℉
|
±(2%+9℉)
|
|
|
Features
|
||
|
Display count
|
|
6000
|
|
Auto/Manual range
|
|
√
|
|
Jaw opening
|
|
33mm
|
|
True RMS
|
|
√
|
|
AC current frequency response
|
|
40Hz~400Hz
|
|
AC voltage frequency response
|
|
40Hz~400Hz
|
|

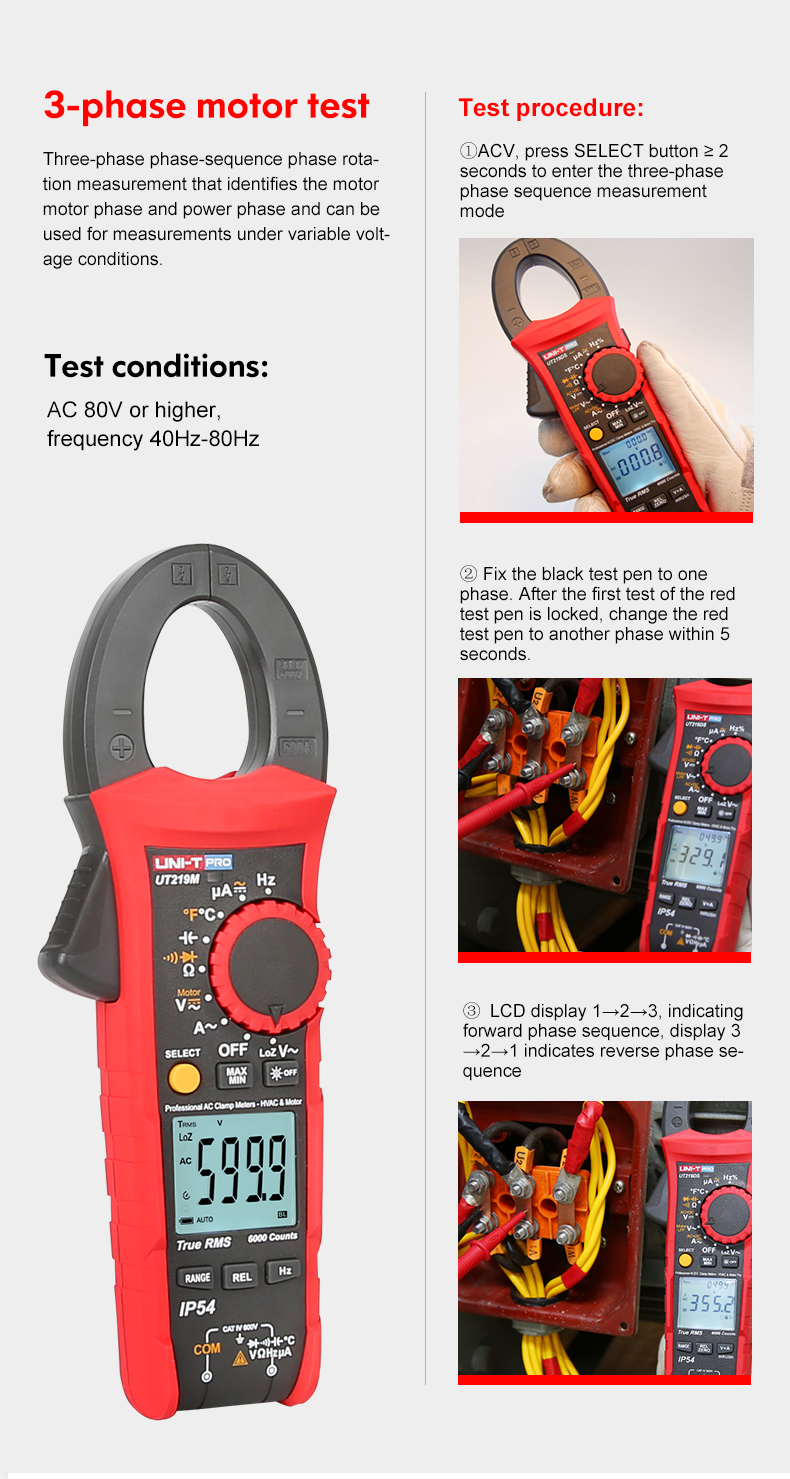

3-phase motor sequence test
|
600V
|
√
|
|
Diode test
|
|
3V
|
|
Measurement sampling rate
|
|
3 times/s
|
|
Display interface (LCD)
|
|
Single
|
|
Auto power off/MAX/MIN
|
|
√
|
|
Low battery indication
|
|
√
|
|
Data hold (H)/Relative mode (REL)
|
|
√
|
|
ZERO mode
|
|
√
|
|
Function selection (SELECT)
|
|
√
|
|

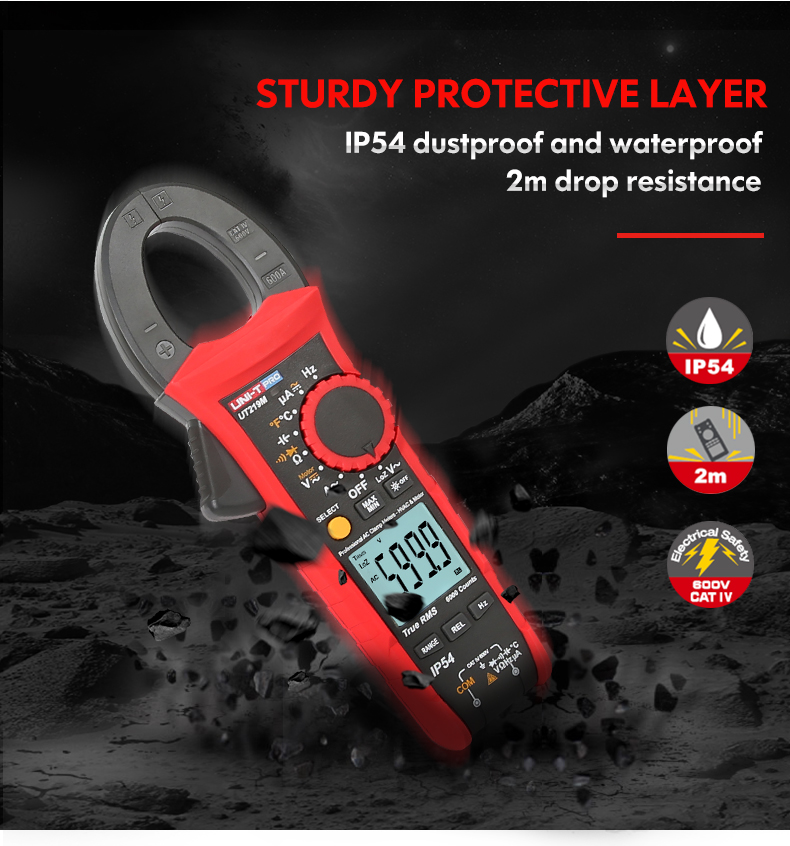

Auto backlight/2m drop test
|
|
√
|
|
IP rating
|
|
IP54
|
|
Input impedance
|
≥10MΩ
|
√
|
|

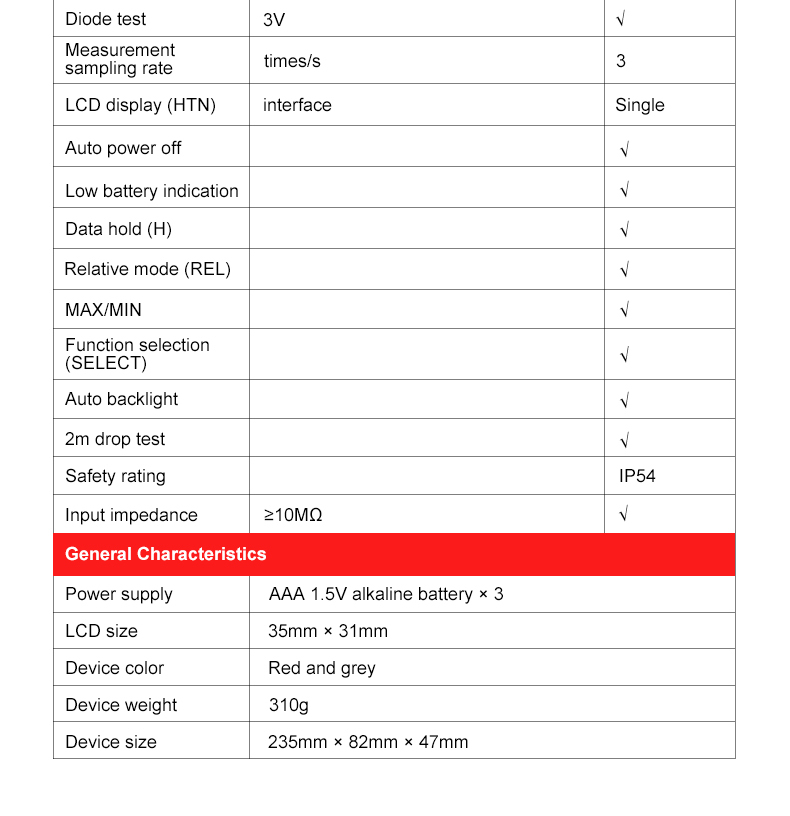

General Characterisitics
|
||
|
Power
|
1.5V battery (R03) x 3
|
|
|
Display
|
35mm x 31mm
|
|
|
Product color
|
Red and grey
|
|
|
Product net weight
|
310g
|
|
|
Product size
|
234.6mm x 82mm x 47mm
|
|
|

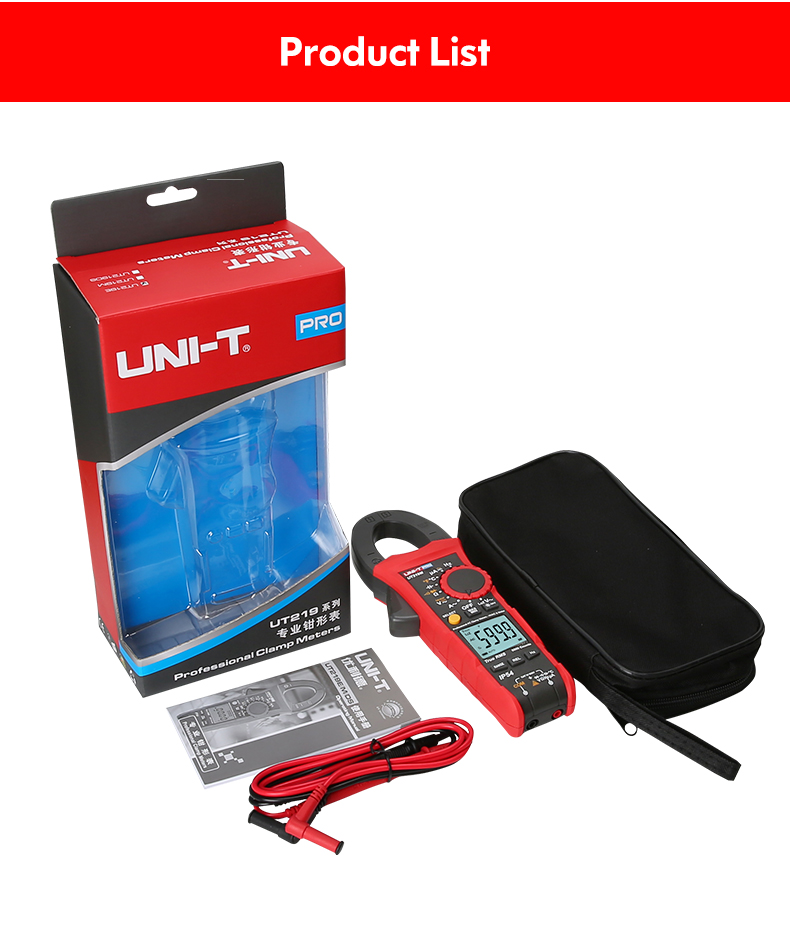

Standard accessories
|
Test leads, batteries, carrying bag, PC software CD, point contact temperature probe
|
|
|
Standard individual packing
|
Gift box, blister, English manual (German, French, Spanish optional)
|
|
|
Standard quantity per carton
|
10pcs
|
|
|
Standard carton measurement
|
490mm x 295mm x 330mm
|
|
|
Standard carton gross weight
|
8.2kg
|
|
