Description

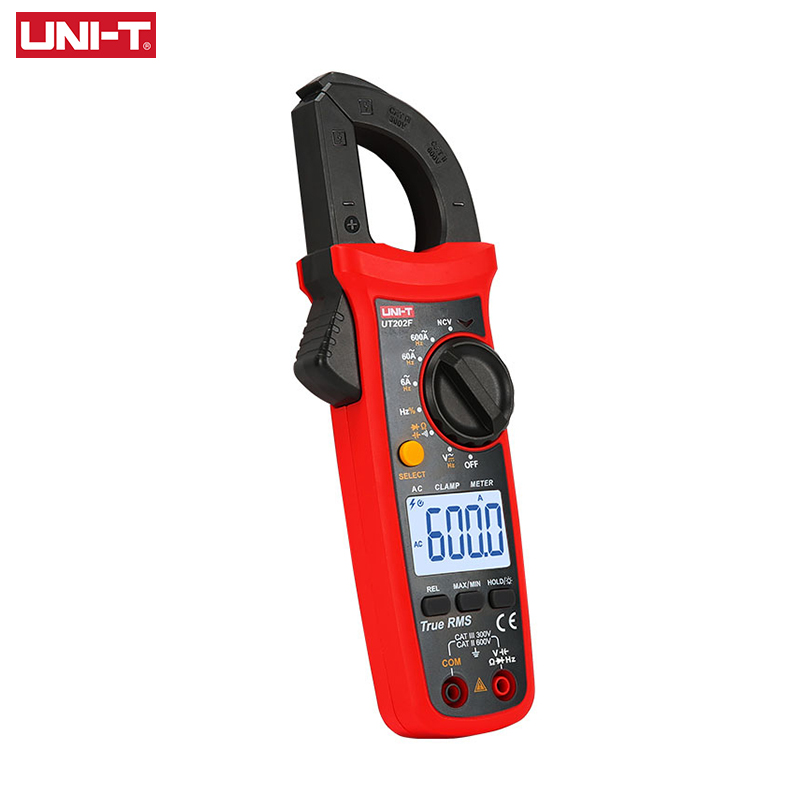

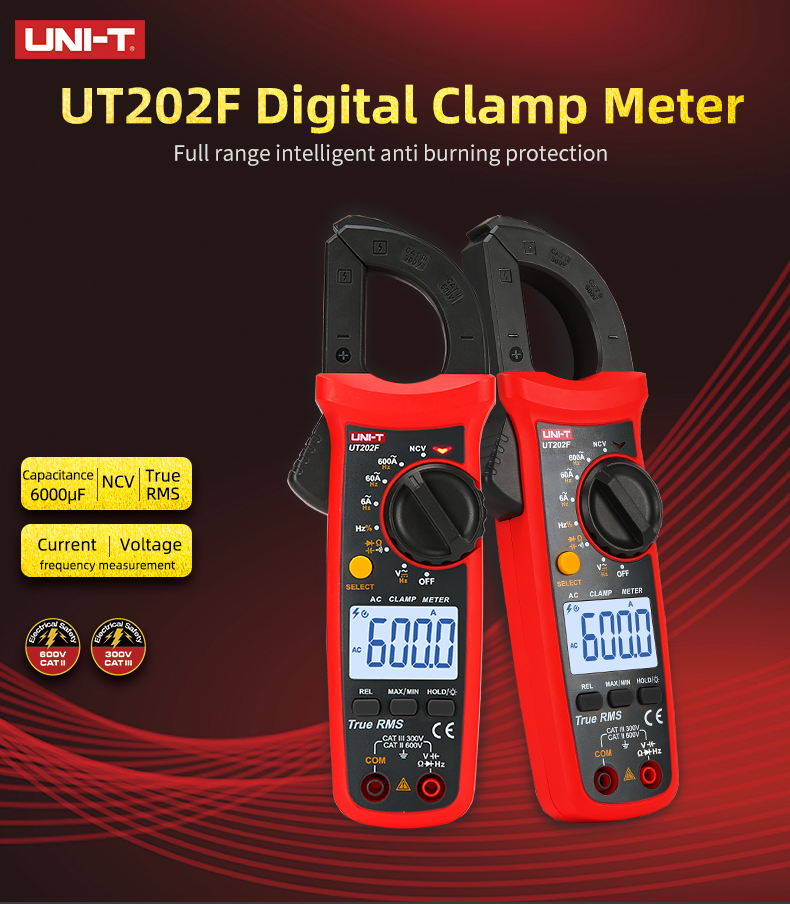

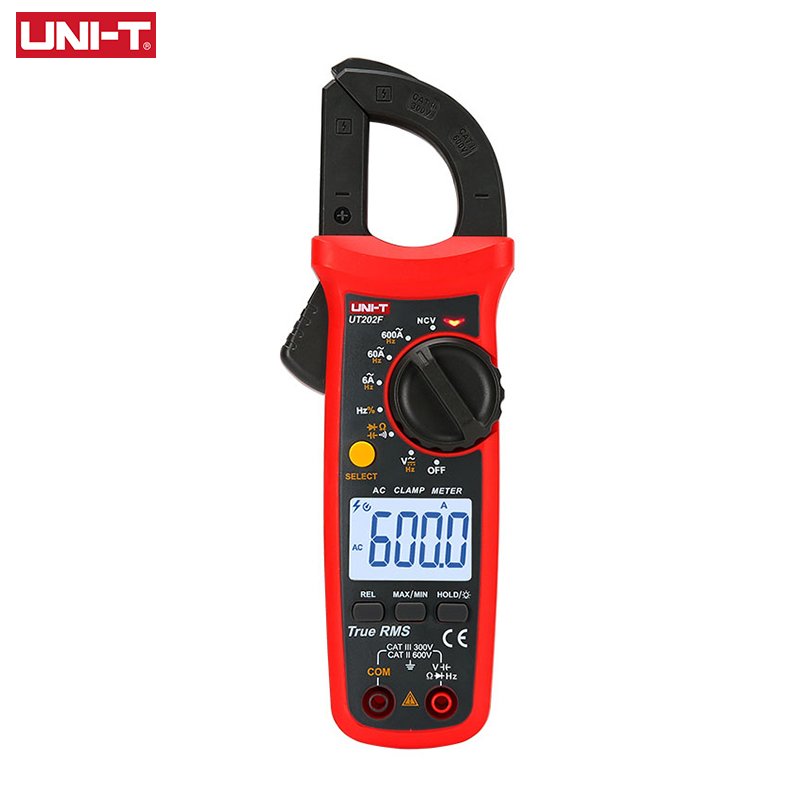

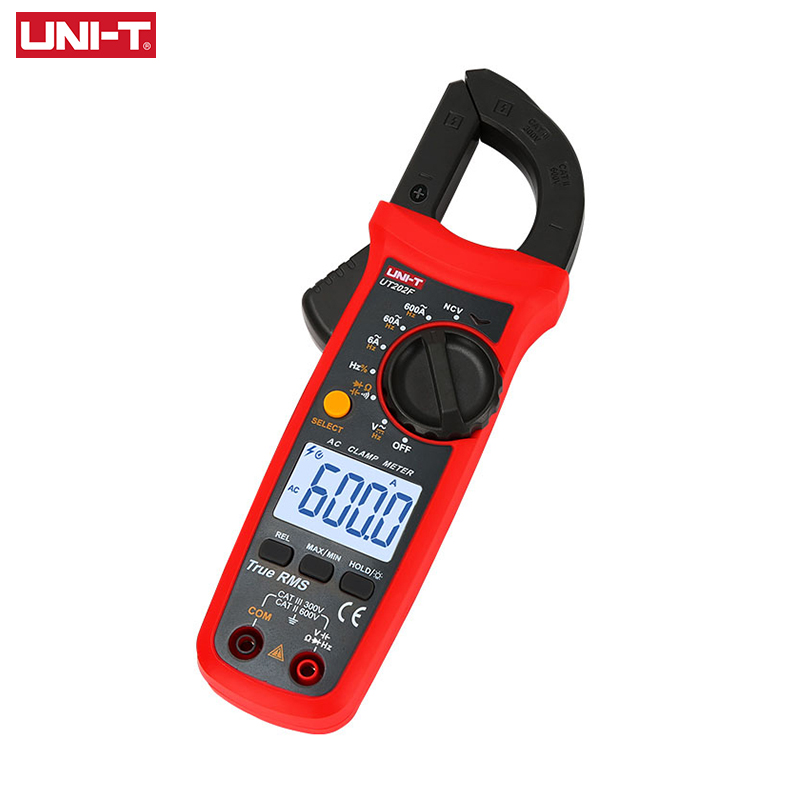

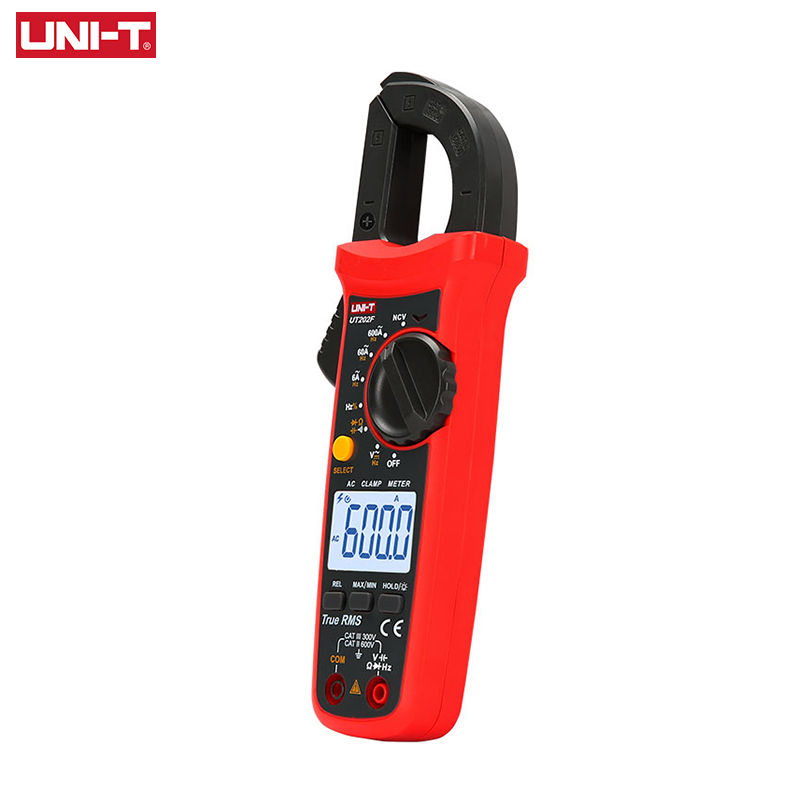

UT202F/UT201R Digital Clamp Meter
1. High voltage (600V) frequencymeasurement

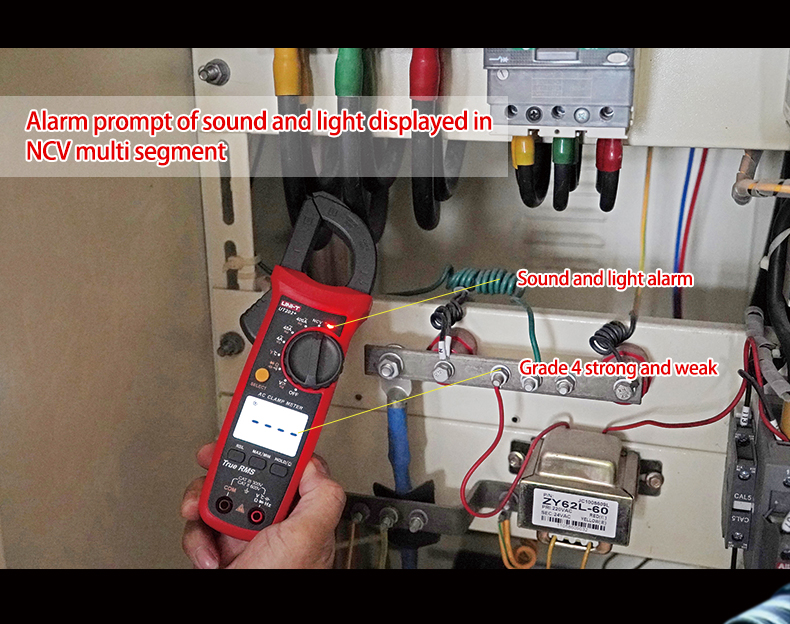

2. NCV multi-segment display andaudio/visual alarm
3. 600V protection across allrange
4. In current and voltage rangemeasurement. Accuracy guaranteerange 1%~100%
Key Features
1. True RMS
2. Small currentmeasurement

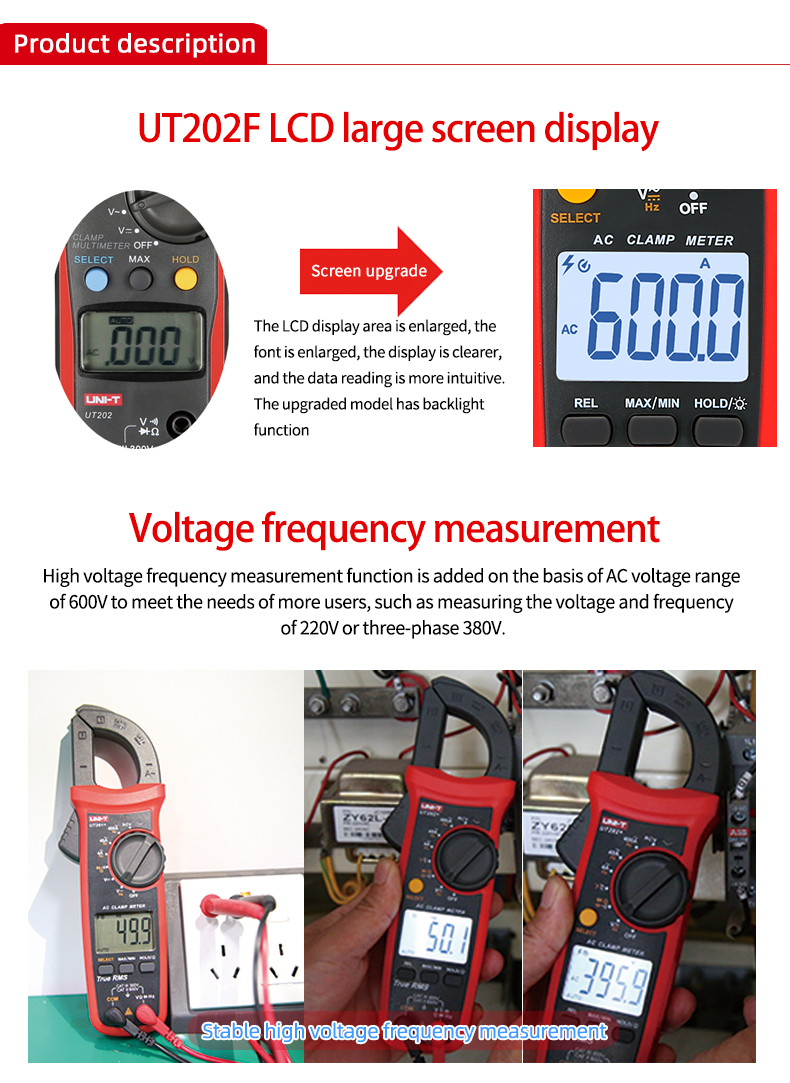

3. Larger screen anddisplay digits
4. LCD backlight
5. Continuity test
| Specifications | Range | UT201R | UT202R | UT202F | UT203R | UT204R |
| AC current (A) | 0.04~400A | ±(2%+10) | ±(2%+10) | ±(2%+5) | ||
| 0.06~600A | ±(2%+10) | ±(2%+5) | ||||

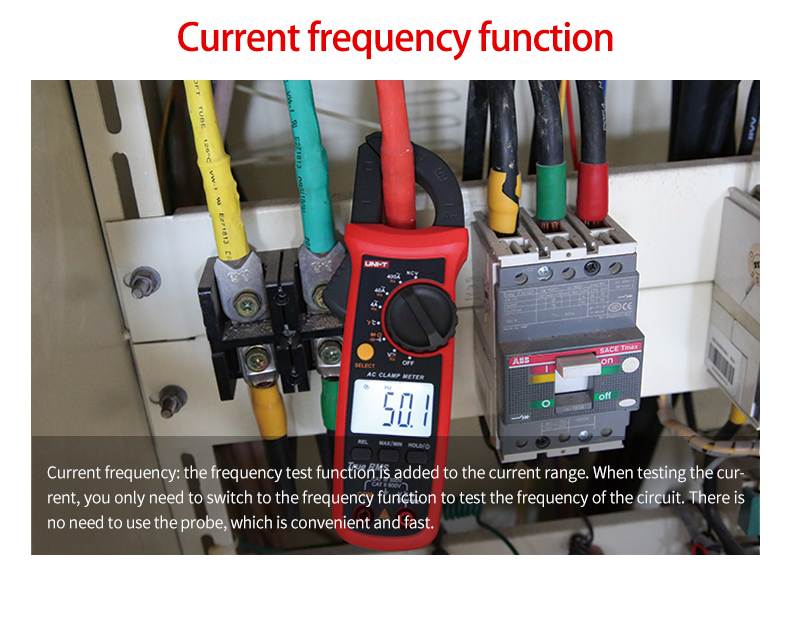

| AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) | ±(1%+5) | ±(1%+5) | ||
| DC current (A) | 0.04~400A | ±(2%+5) | ||||
| 0.06~600A | ±(2%+5) | |||||
| AC voltage (V) | 600V | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) |
| AC voltage frequency (Hz) | 10Hz~10kHz | ±(1%+5) | ±(1%+5) | ±(1%+5) | ||
| 10Hz~60kHz | ±(0.5%+2) | ±(0.5%+2) | ||||
| DC voltage (V) | 600V | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) | ||
| 60MΩ | ±(0.8%+2) | ±(0.8%+2) | ||||
| Capacitance (F) | 4mF | ±(4%+5) | ||||
| 40mF | ±(4%+5) | |||||
| 60mF | ±(4%+5) | ±(4%+5) | ||||
| Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) | ±(1.5%+5) | |||
| Frequency (Hz) | 10Hz~10MHz | ±(1%+5) | ±(0.1%+4) | ±(0.1%+4) | ||
| Features | ||||||
| Display count | 4000 | 4000 | 6000 | 4000 | 6000 | |

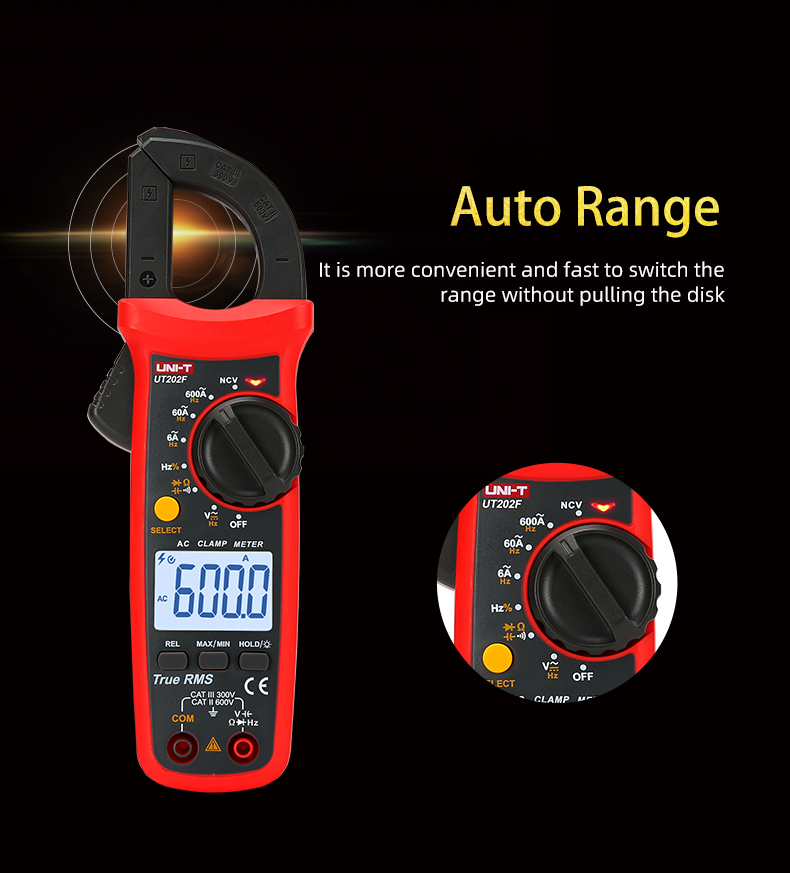

| Auto range | √ | √ | √ | √ | √ | |
| Jaw opening | 28mm | 28mm | 28mm | 28mm | 28mm | |
| True RMS | √ | √ | √ | √ | √ | |
| NCV | √ | √ | √ | √ | √ | |
| Continuity test | √ | √ | √ | √ | √ | |
| Diode | √ | √ | √ | √ | √ | |
| MAX/MIN | √ | √ | √ | √ | √ | |
| Relative mode | √ | √ | √ | √ | ||
| Zero mode | √ | √ | ||||
| Data hold | √ | √ | √ | √ | √ | |
| Low battery indication | √ | √ | √ | √ | √ | |
| Auto power off | √ | √ | √ | √ | √ | |
| General Characteristics | ||||||
| Power | 1.5V battery (R03) x 2 | |||||
| Display | 37mm x 25mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT201R/202R/202F: 248g; UT203R/204R: 235g | |||||
| Product size | 215mm x 63mm x 36mm | |||||
| Standard accessories | Batteries, test leads, Themocouple (UT202R/204R) | |||||
| Standard individual packing | Gift box, carrying bag, English manual | |||||
| Standard quantity per carton | 40pcs | |||||
| Standard carton measurement | 485mm x 295mm x 385mm | |||||
| Standard carton gross weight | UT201R: 16.6kg; UT202R: 17.1kg; UT203R: 16.1kg; UT202F/UT204R: 16.7kg | |||||
