Description

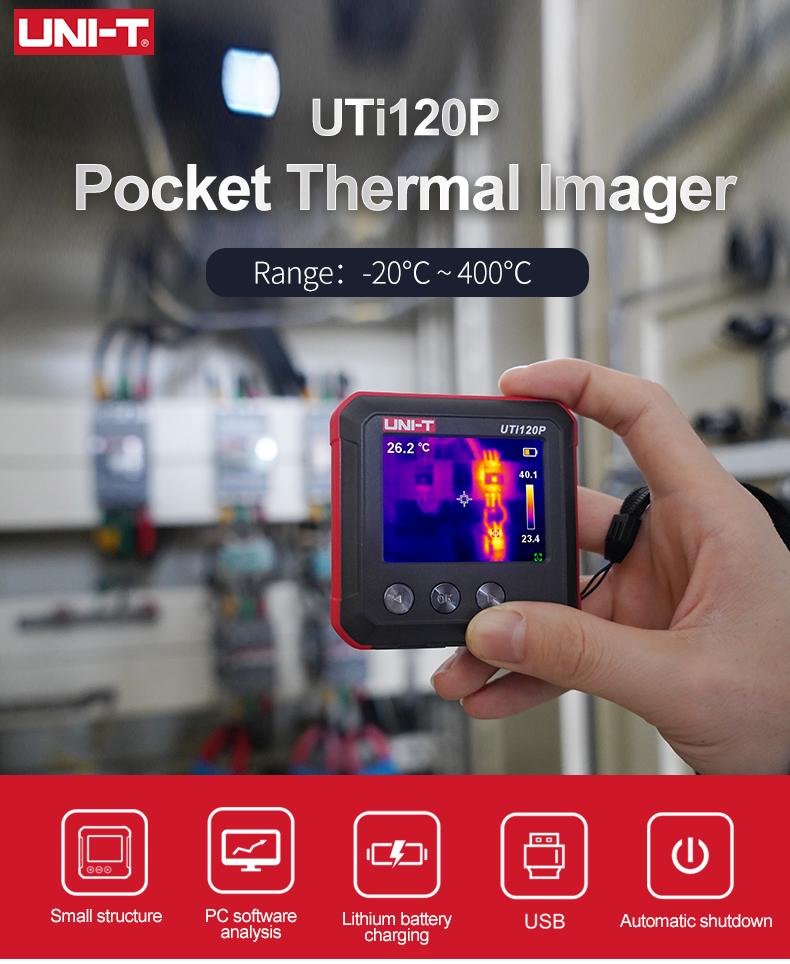

UTi120P Thermal Imager

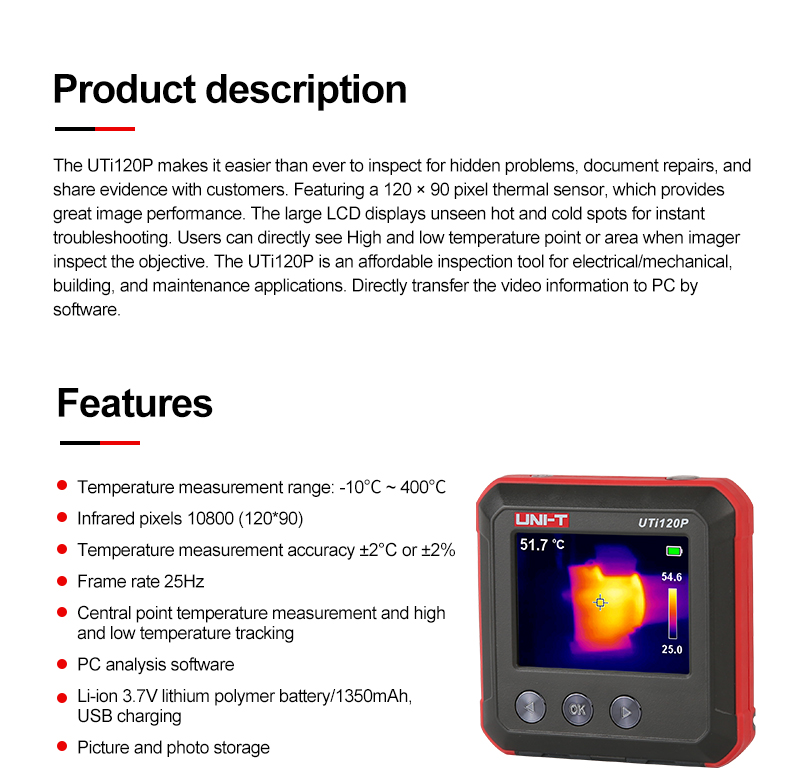

The UTi120P makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers.Featuring a 120 × 90 pixel thermal sensor, which provides great image performance. The large LCD displays unseen hot and cold spots for instant troubleshooting. Users can directly see High and low temperature point or area when imager inspect the objective. The UTi120P is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly transfer the video information to PC by software.

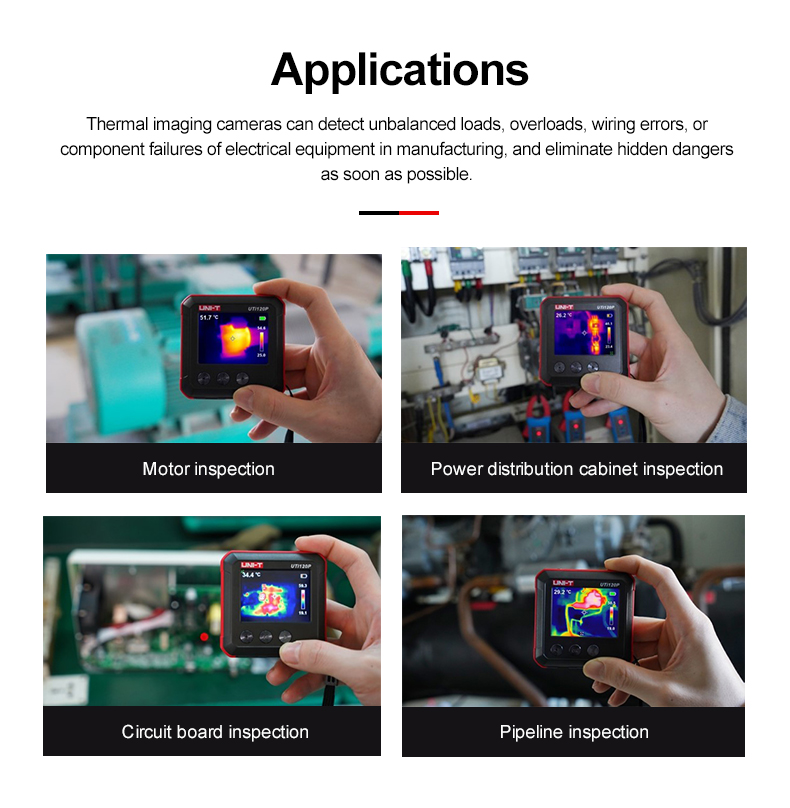

Applications:
UTi120P is widely used in HVAC equipment maintenance, automotive manufacturing, chemical and smelting industries, etc.
Applications:
UTi120P is widely used in HVAC equipment maintenance, automotive manufacturing, chemical and smelting industries, etc.
|

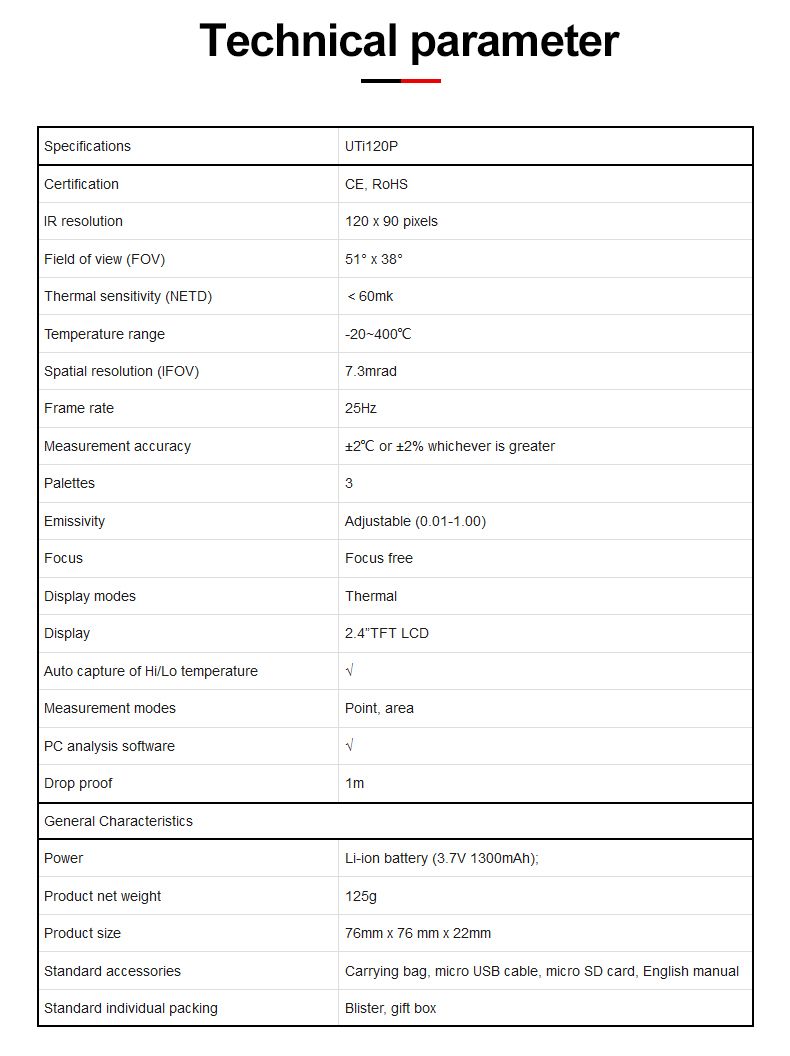

Specifications
|
UTi120P
|
|
Certification
|
CE, RoHS
|
|
IR resolution
|
120 x 90 pixels
|
|
Field of view (FOV)
|
51° x 38°
|
|
Thermal sensitivity (NETD)
|
＜60mk
|
|
Temperature range
|
-20~400℃
|
|
Spatial resolution (IFOV)
|
7.3mrad
|
|
Frame rate
|
25Hz
|
|
Measurement accuracy
|
±2℃ or ±2% whichever is greater
|
|

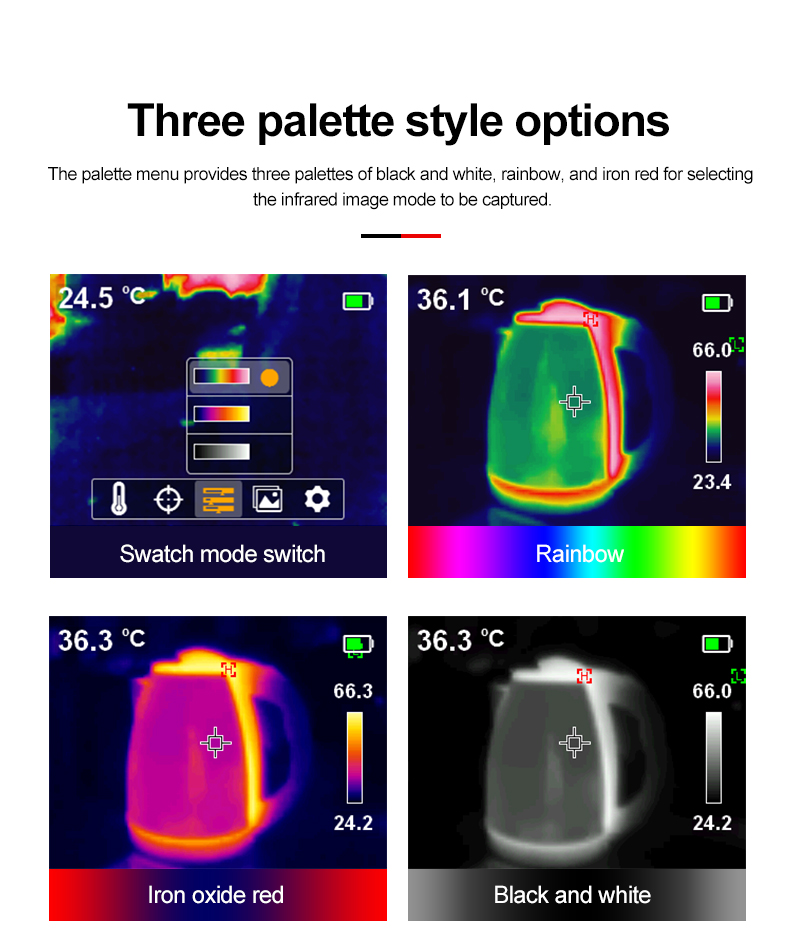

Palettes
|
3
|
|
Emissivity
|
Adjustable (0.01-1.00)
|
|
Focus
|
Focus free
|
|
Display modes
|
Thermal
|
|
Display
|
2.4”TFT LCD
|
|
Auto capture of Hi/Lo temperature
|
√
|
|
Measurement modes
|
Point, area
|
|

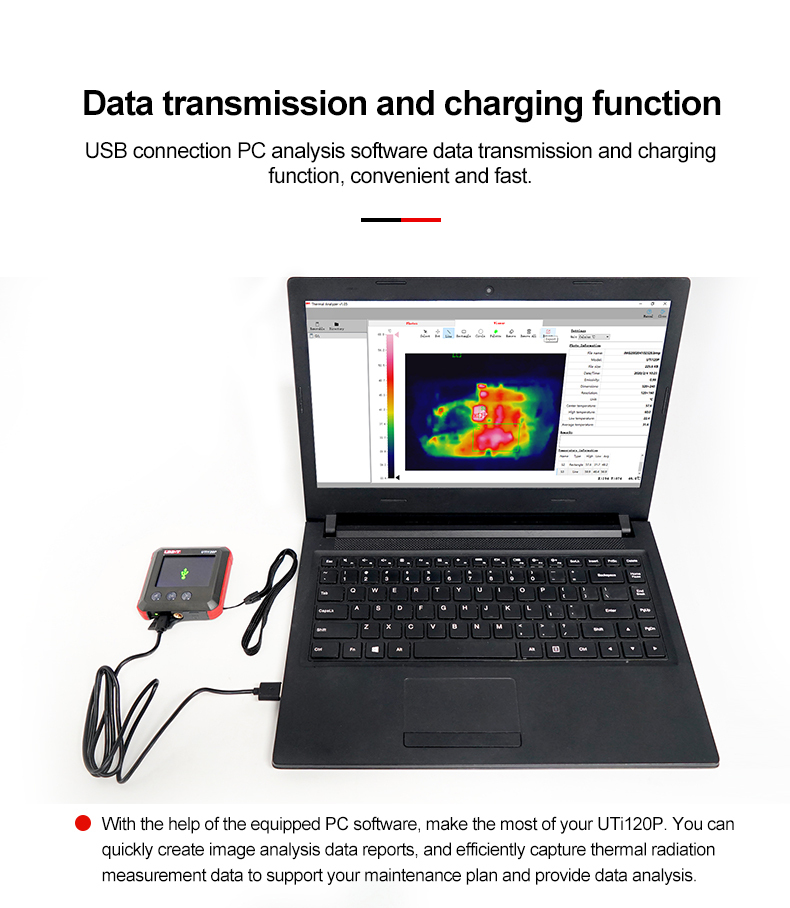

PC analysis software
|
√
|
|
Drop proof
|
1m
|
|
General Characteristics
|
|
|
Power
|

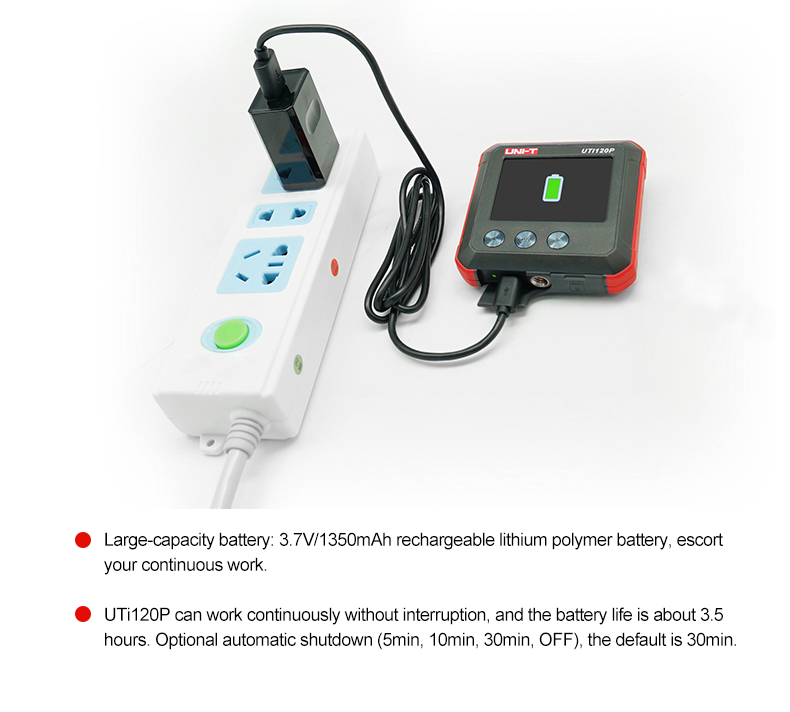

Li-ion battery (3.7V 1300mAh);
|
|
Product net weight
|
125g
|
|
Product size
|
76mm x 76 mm x 22mm
|
|

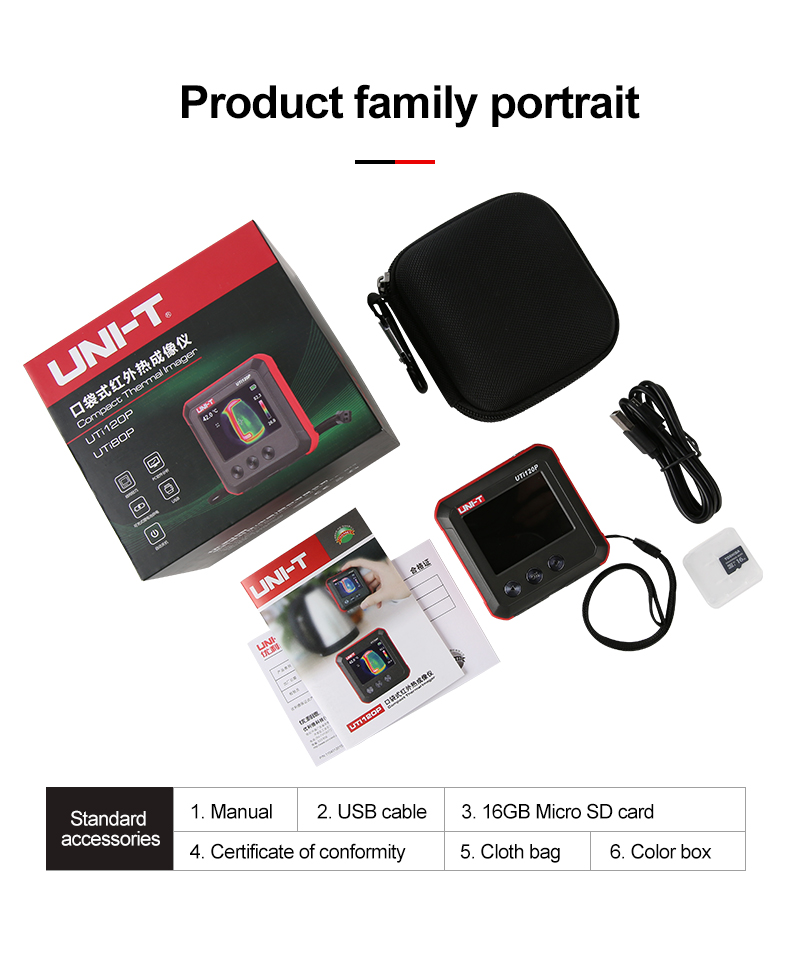

Standard accessories
|
Carrying bag, micro USB cable, micro SD card, English manual
|
|
Standard individual packing
|
Blister, gift box
|
|
Standard quantity per carton
|
5pcs
|
|
Standard carton measurement
|
390mm x 130mm x 140mm
|
|
Standard carton gross weight
|
2.8kg
|
