Description

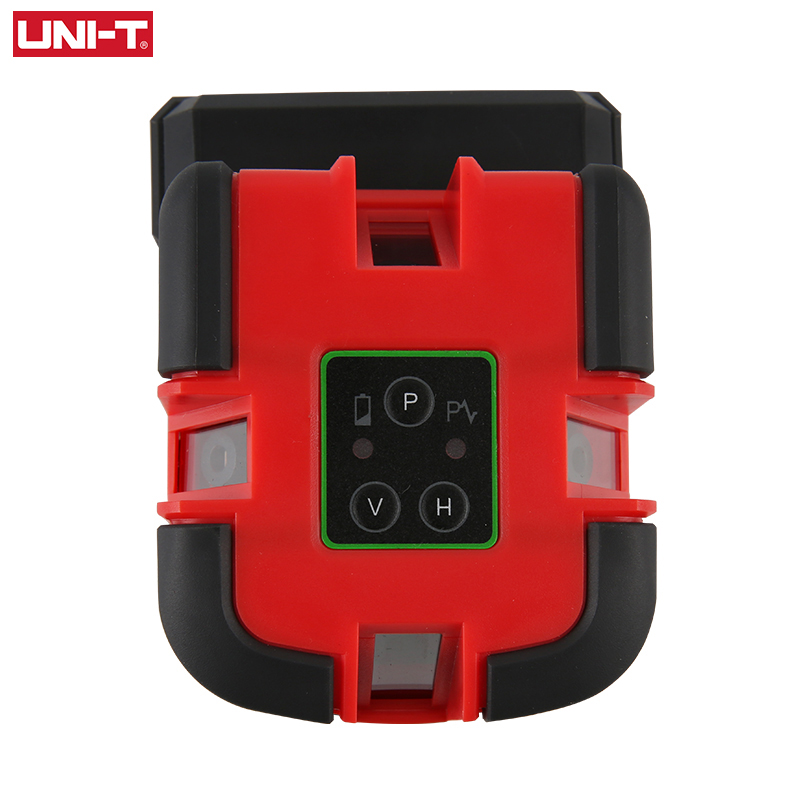

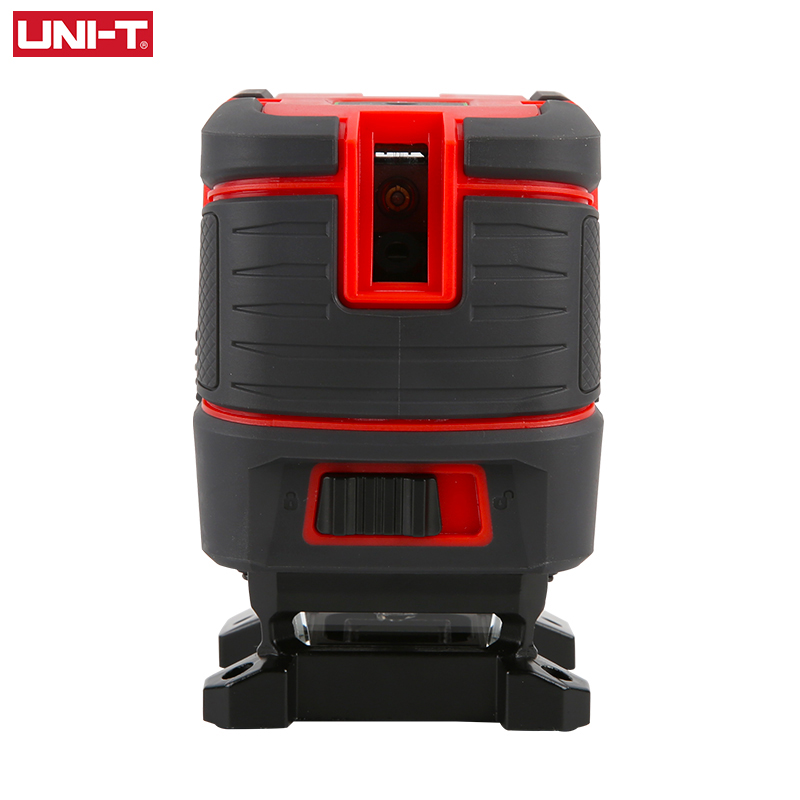

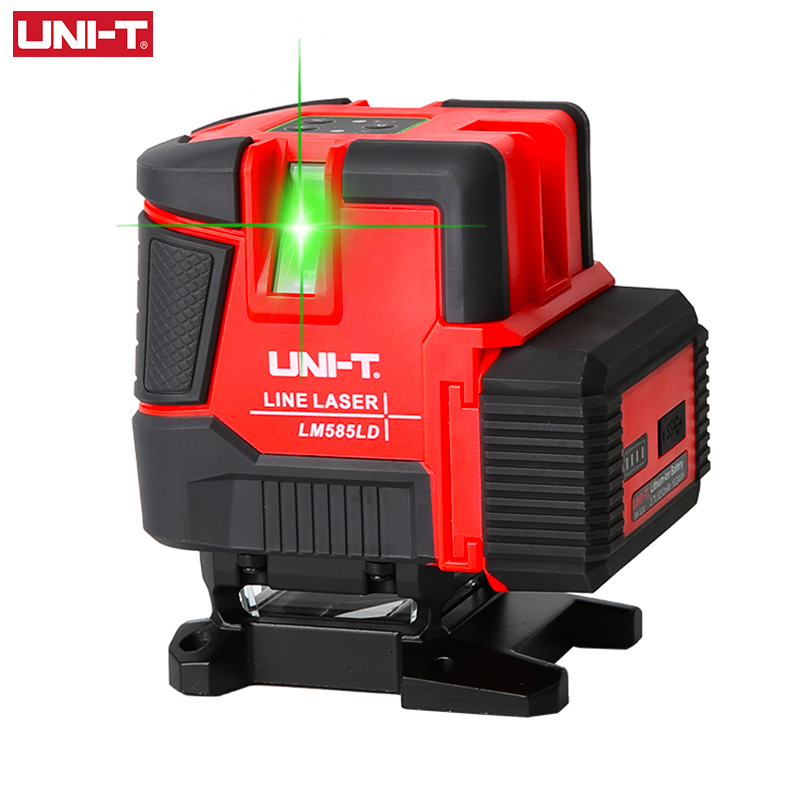

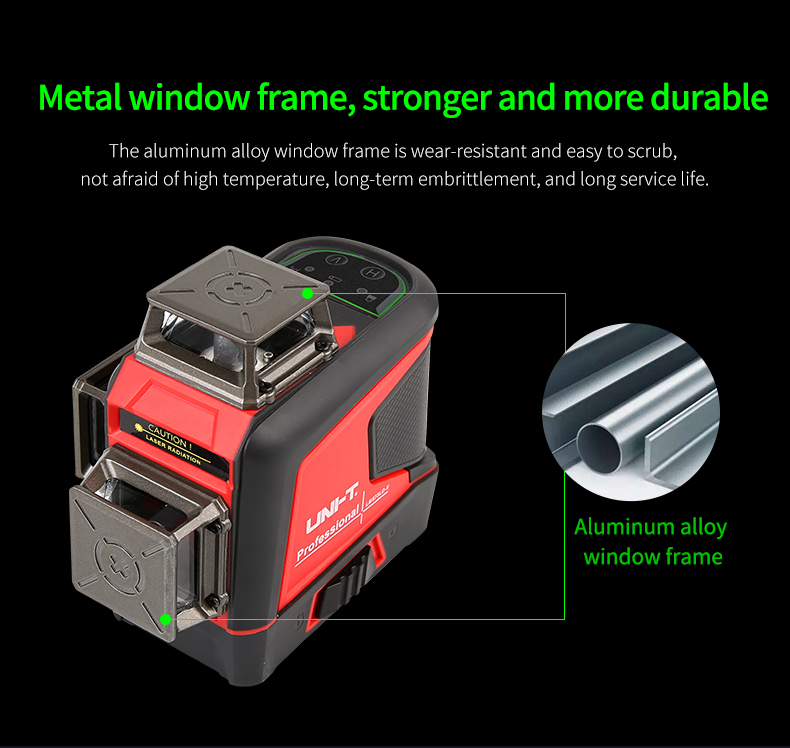

LM585LD Laser Leveler

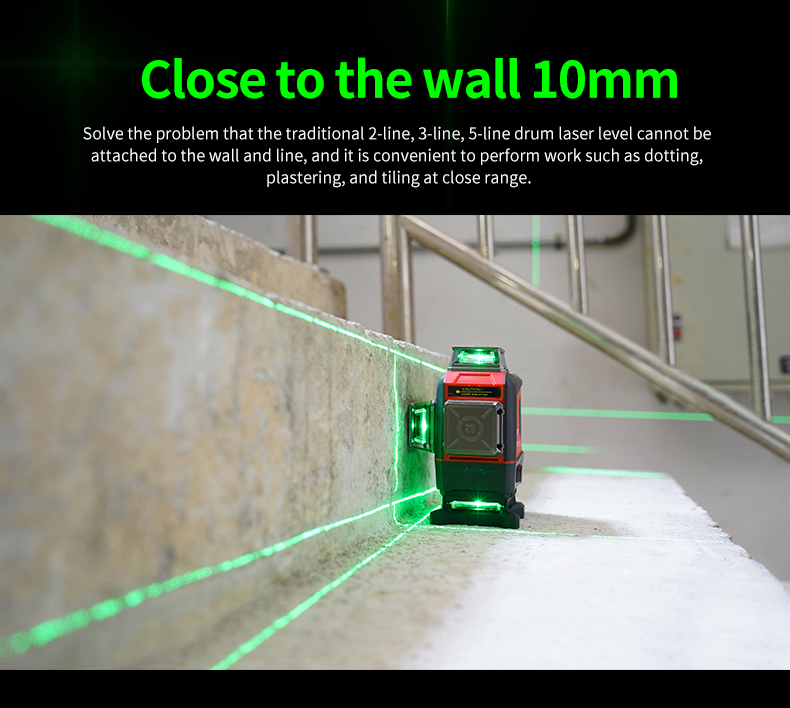

These laser levelers are equipped with green LD laser, suitable for large or bright work places. Its applications include: horizontal, vertical, cross line projection for decoration, building construction, home decoration, renovation, furniture installation, flooring, and project layout.
Features

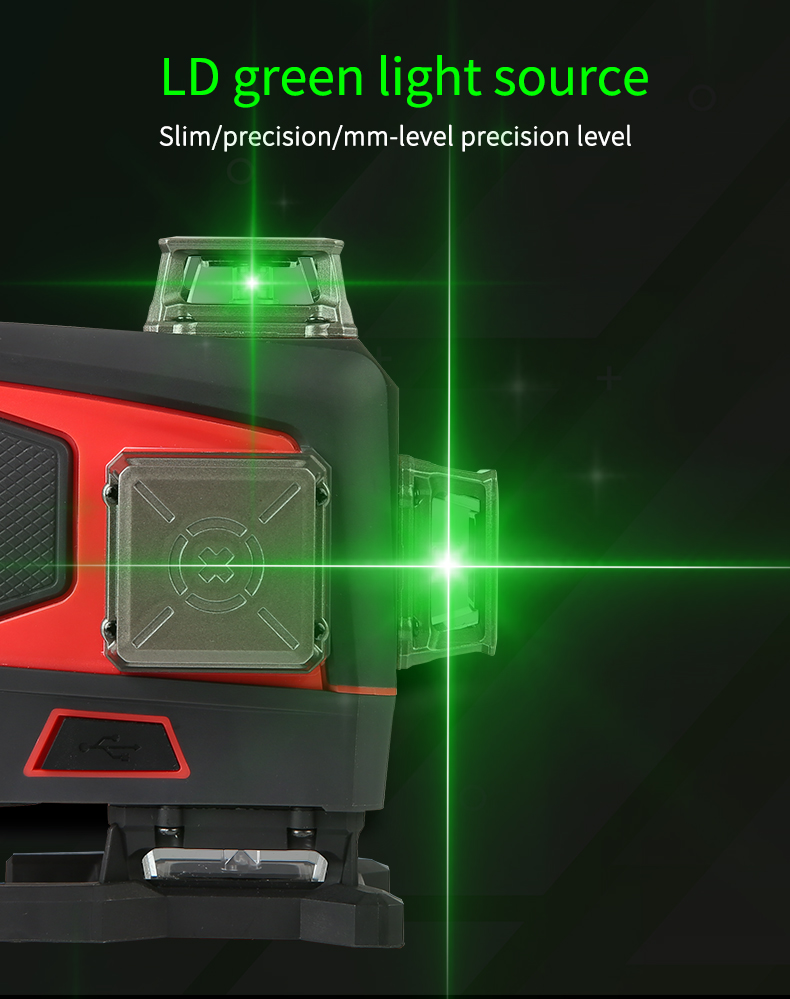

● Osram LD green laser

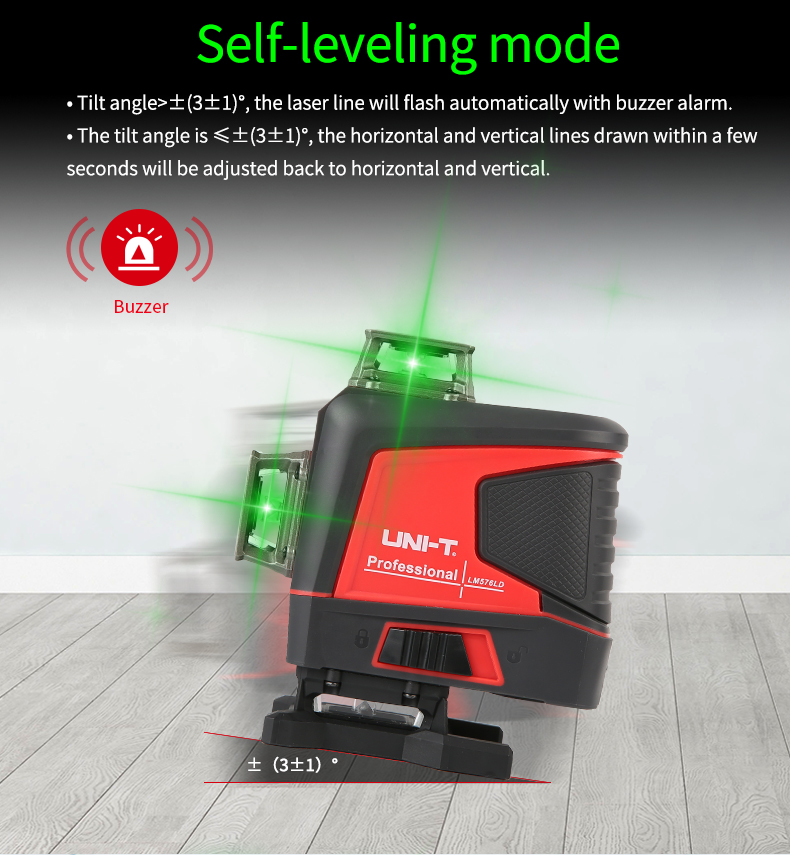

● Self-leveling mode & manual mode
● Outdoor pulse mode

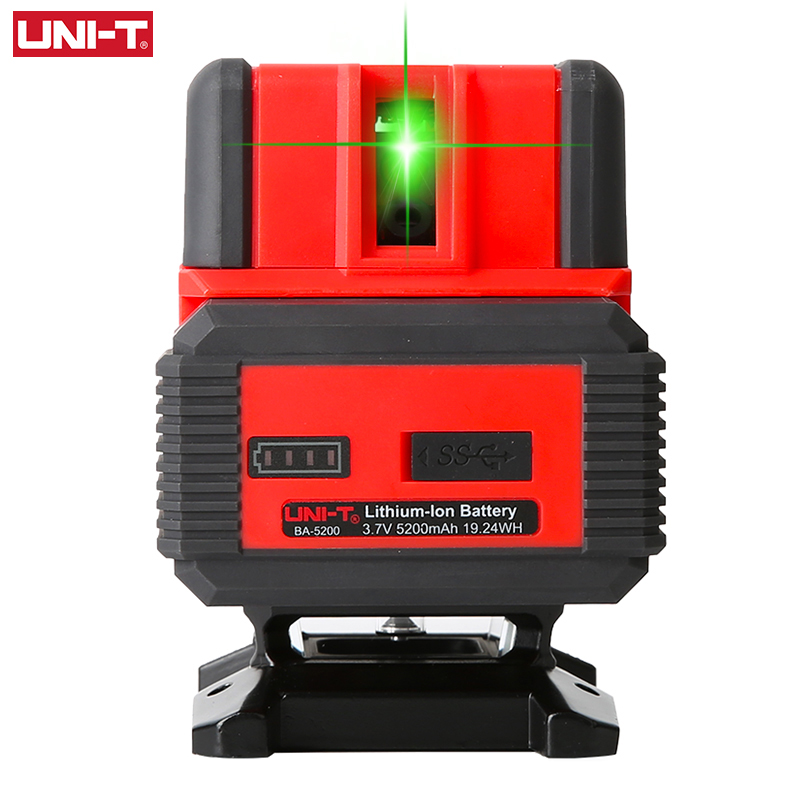

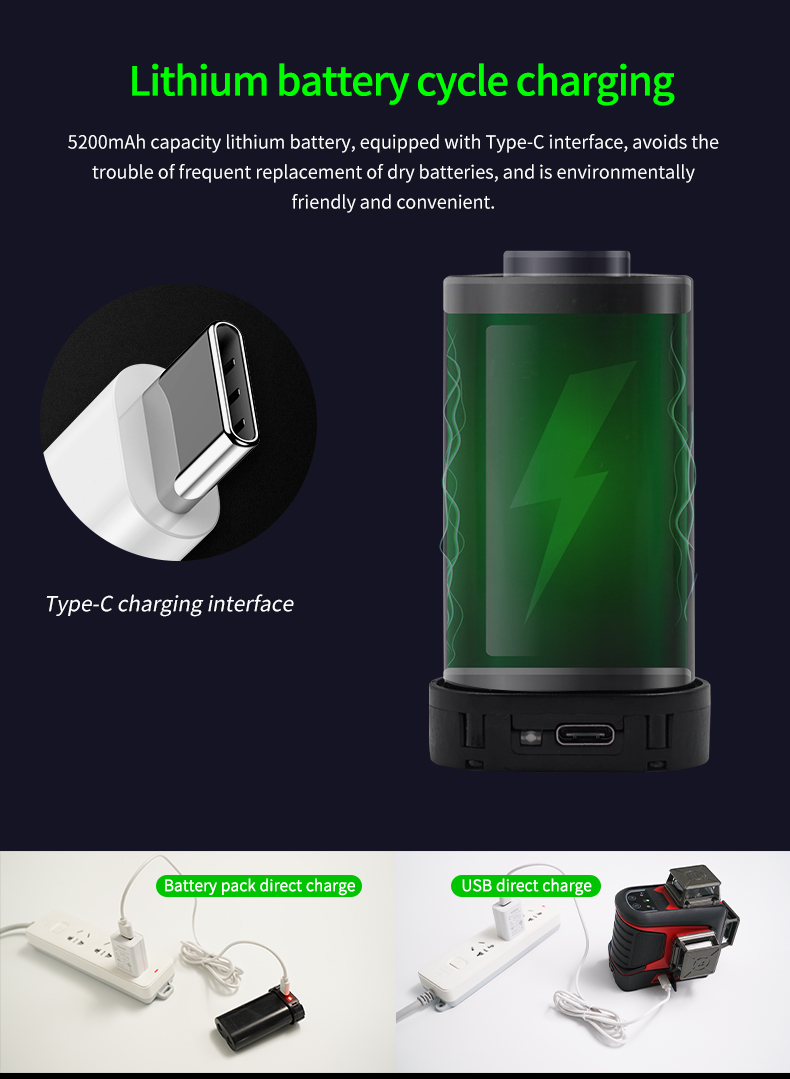

● 5200mAh Li-ion battery
● Type-C DC-in port

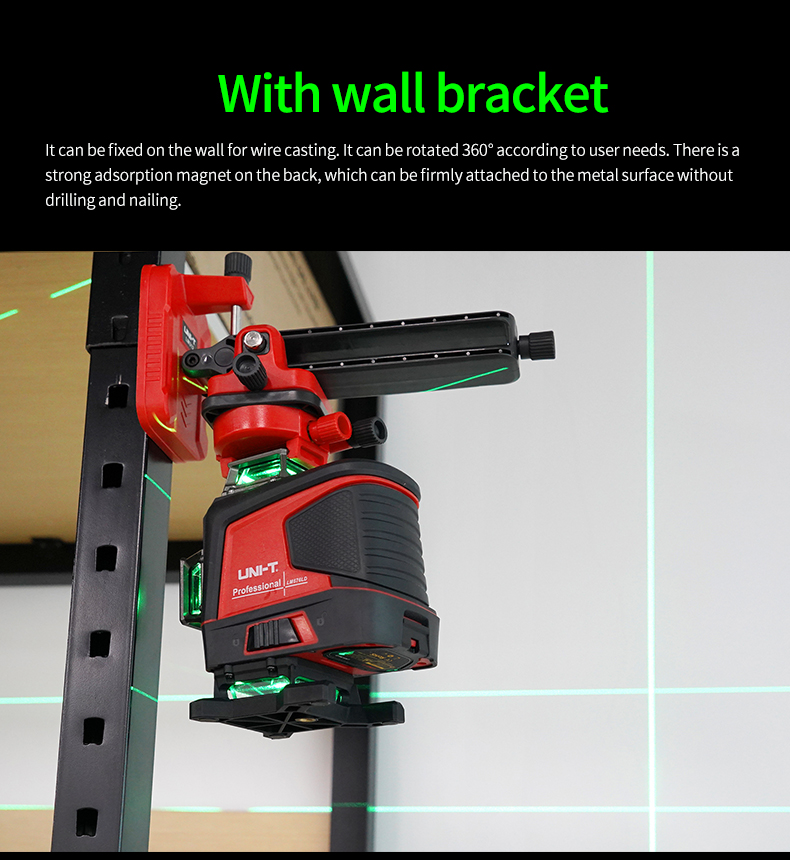

● Complimentary bracket
● Outdoor pulse mode
● 5200mAh Li-ion battery
● Type-C DC-in port
● Complimentary bracket
|
|

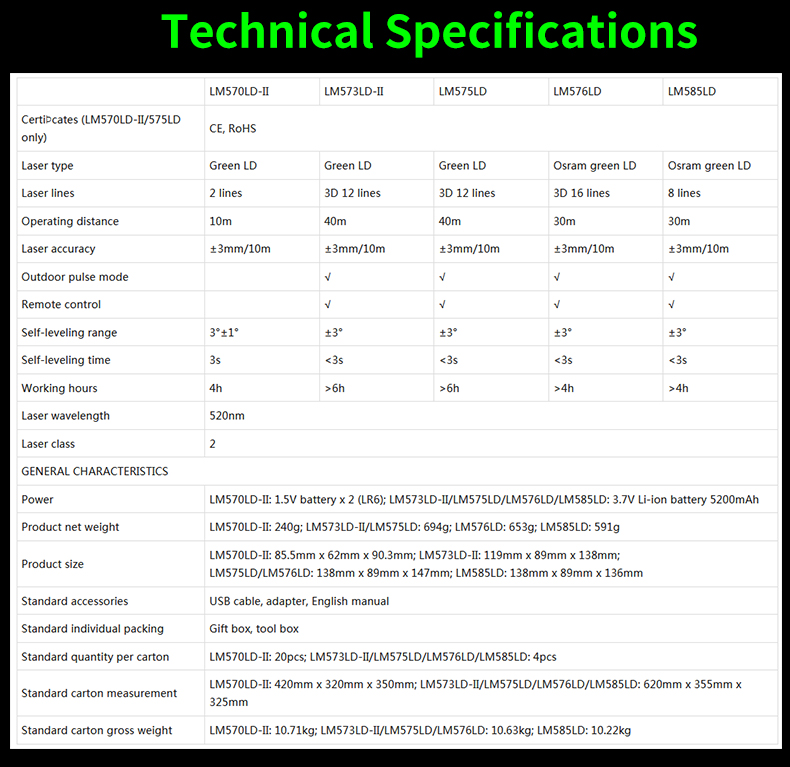

LM570LD-II
|
LM573LD-II
|
LM575LD
|

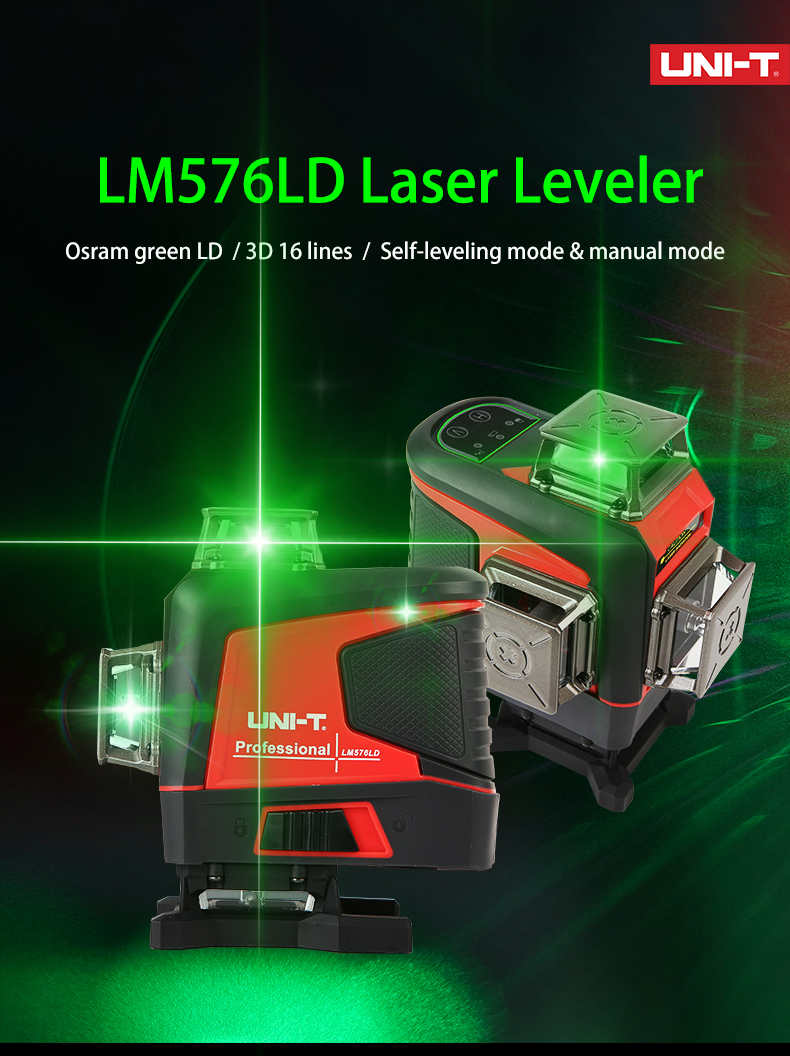

LM576LD
|
LM585LD
|
|
Certificates (LM570LD-II/575LD only)
|
CE, RoHS
|
||||
|
Laser type
|
Green LD
|
Green LD
|
Green LD
|
Osram green LD
|
Osram green LD
|
|
Laser lines
|
2 lines
|
3D 12 lines
|
3D 12 lines
|
3D 16 lines
|
8 lines
|
|
Operating distance
|
10m
|
40m
|
40m
|
30m
|
30m
|
|
Laser accuracy
|
±3mm/10m
|
±3mm/10m
|
±3mm/10m
|
±3mm/10m
|
±3mm/10m
|
|
Outdoor pulse mode
|
|
√
|
√
|
√
|
√
|
|

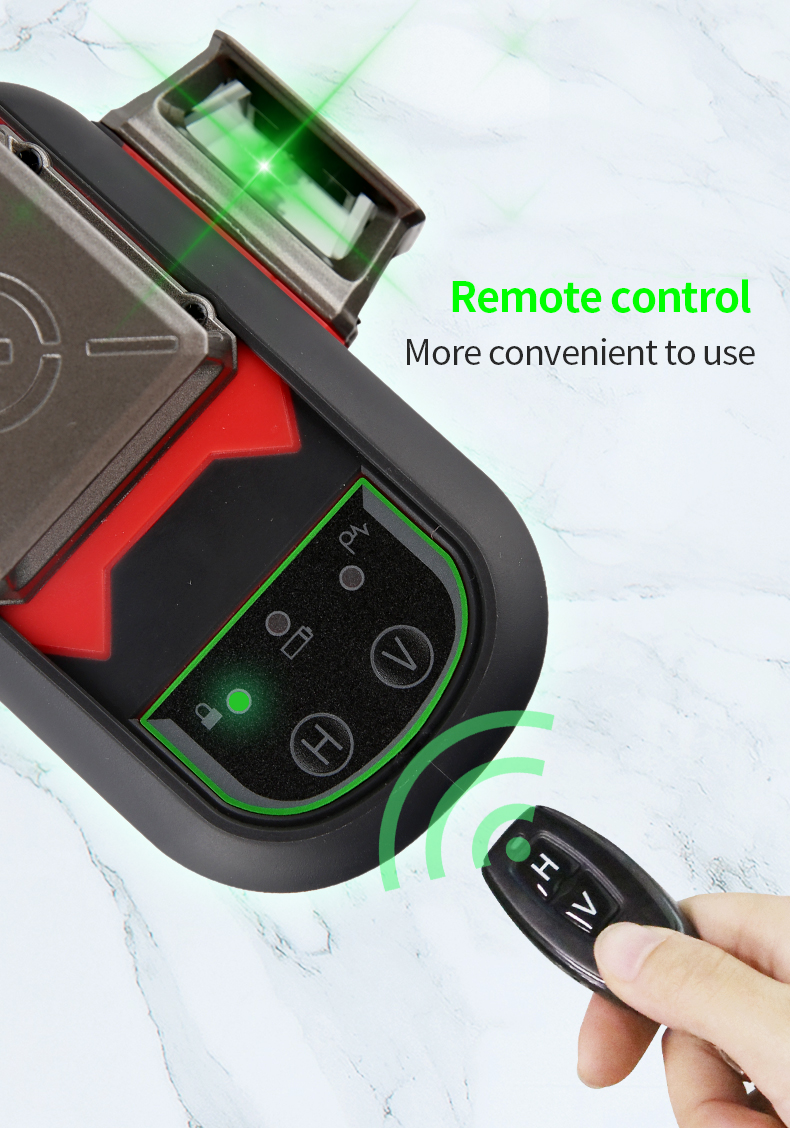

Remote control
|
|
√
|
√
|
√
|
√
|
|
Self-leveling range
|
3°±1°
|
±3°
|
±3°
|
±3°
|
±3°
|
|
Self-leveling time
|
3s
|
<3s
|
<3s
|
<3s
|
<3s
|
|
Working hours
|
4h
|
>6h
|
>6h
|
>4h
|
>4h
|
|
Laser wavelength
|
520nm
|
||||
|
Laser class
|
2
|
||||
|
GENERAL CHARACTERISTICS
|
|||||
|
Power
|
LM570LD-II: 1.5V battery x 2 (LR6); LM573LD-II/LM575LD/LM576LD/LM585LD: 3.7V Li-ion battery 5200mAh
|
||||
|
Product net weight
|
LM570LD-II: 240g; LM573LD-II/LM575LD: 694g; LM576LD: 653g; LM585LD: 591g
|
||||
|
Product size
|
LM570LD-II: 85.5mm x 62mm x 90.3mm; LM573LD-II: 119mm x 89mm x 138mm;
LM575LD/LM576LD: 138mm x 89mm x 147mm; LM585LD: 138mm x 89mm x 136mm |
||||
|

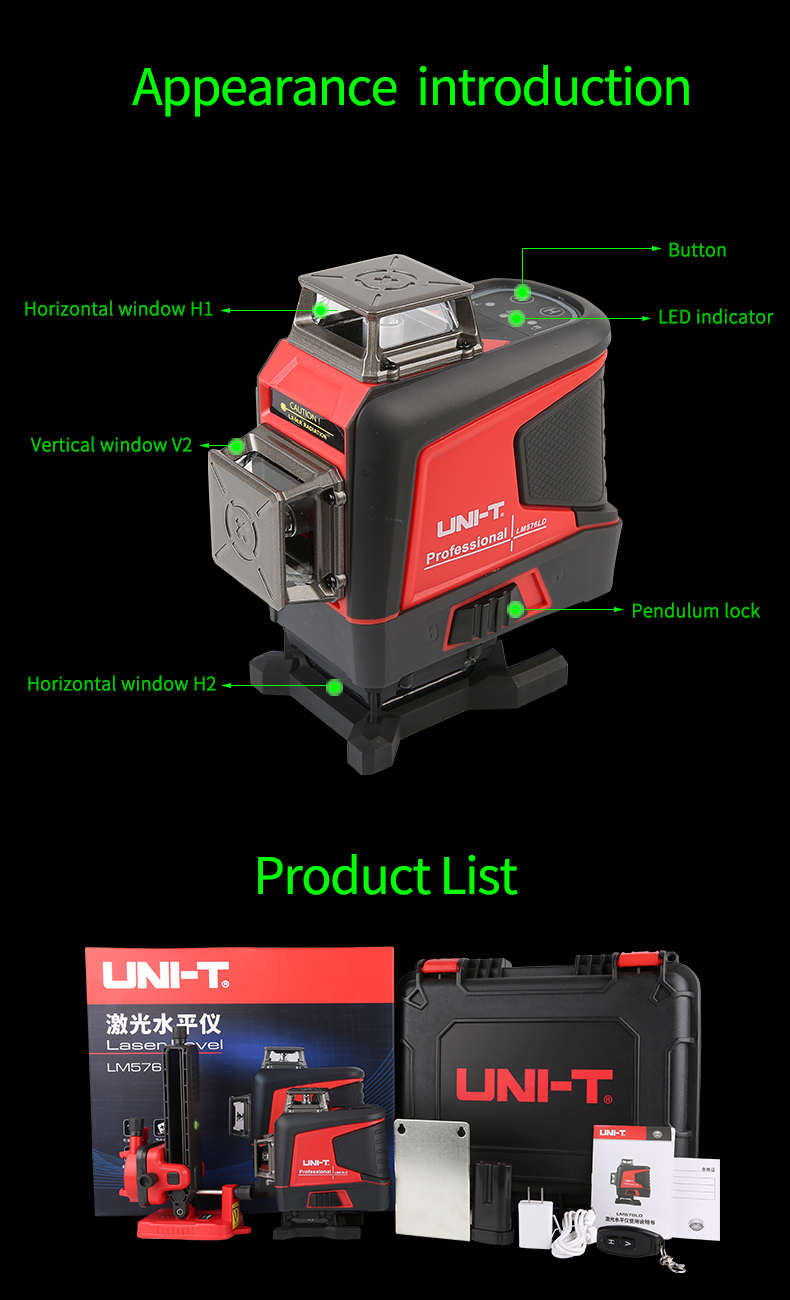

Standard accessories
|
USB cable, adapter, English manual
|
||||
|
Standard individual packing
|
Gift box, tool box
|
||||
|
Standard quantity per carton
|
LM570LD-II: 20pcs; LM573LD-II/LM575LD/LM576LD/LM585LD: 4pcs
|
||||
|
Standard carton measurement
|
LM570LD-II: 420mm x 320mm x 350mm; LM573LD-II/LM575LD/LM576LD/LM585LD: 620mm x 355mm x 325mm
|
||||
|
Standard carton gross weight
|
LM570LD-II: 10.71kg; LM573LD-II/LM575LD/LM576LD: 10.63kg; LM585LD: 10.22kg
|
||||
