Description
GUIDE TrackIR / TrackIR Pro Handheld Thermal Imaging Monocular
TrackIR is Guide’s new launched handheld thermal imaging monocular designed for professional hunters.
With 1280*960 HD display, 400*300 or 800*600 IR Detector, it provides adaptable and excellent thermal imaging in any conditions.
Support smooth zoom (1-8X), built-in stadiametric rangefinder, image quality adjustment, picture-in-picture functions.
At a high frame rate of 50Hz, TrackIR captures sharp thermal imaging throughout dynamic and rapid motion in distance.
TrackIR also supports connecting accessories to realize more functions.
Features:
* 1280×960 HD display for better comfort of viewing
* >5 hours battery working time
* >5 hours battery working time
* Mobile-friendly APP for Remote Control and Steaming

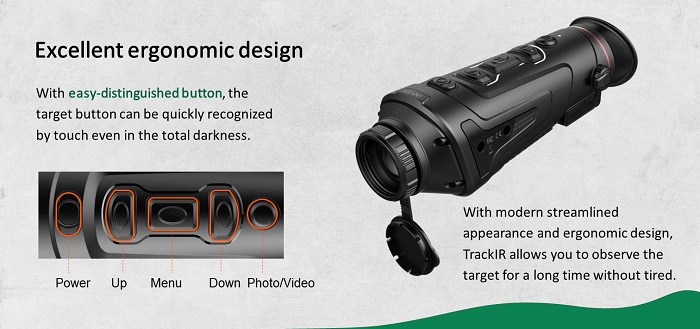

* User-friendly UI with quick menu, easy to operate
* Multiple Color Palettes for good vision in diverse conditions
* Support smooth zoom, built-in stadiametric rangefinder and more
* Support smooth zoom, built-in stadiametric rangefinder and more
* Can connect external mobile power supply and more
Product packaging
Certifications
Product Paramenters
|
Model
|
TrackIR Series
|
TrackIR Pro Series
|
||||
|
TrackIR
25mm |
TrackIR
35mm |
TrackIR
50mm |
TrackIR Pro
19mm |
TrackIR Pro
25mm |
TrackIR Pro
35mm |
|
|
Detector
|
||||||
|
Detector Type
|
400×300 @17μm, VOx
|
640×480@12μm, VOx
|
||||
|
Spectral
|
8μm～14μm
|
8μm～14μm
|
||||
|
NETD
|
≤50mk
|
|||||
|
Lens
|
|
|
|
|
|
|
|
Focal Length
|
25mm/F1.1
|
35mm/F1.2
|
50mm/F1.2
|
19mm F1.0
|
25mm F1.0
|
35mm F1.0
|
|
Focusing
|
Manual Focus
|
|||||
|
FOV
|
15.4°×11.6°
|
11.1°×8.3°
|
7.8°×5.8°
|
22.9×17.2
|
17.5×13.1
|
12.5×9.4
|
|
Display
|
||||||
|
Screen
|

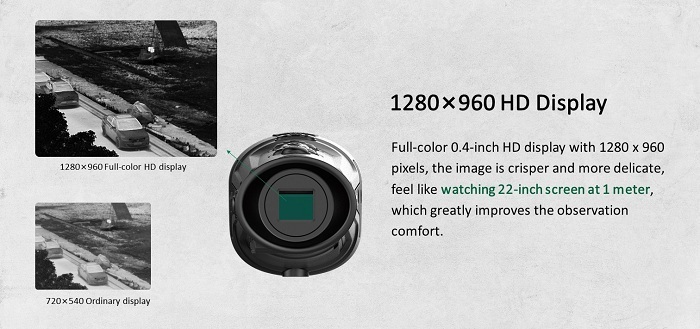

1280×960 , 0.4 inch，Color LCOS Display (Feel like watching 22 inch screen at 1 meter)
|
|||||
|
Eyepiece
|
Monocular, Exit pupil≥10mm, Adjustable diopter-4~＋2
|
|||||
|
Magnification
|
1.7~6.8
|
2.3~9.2
|
3.3~13.2
|
1.1—8.8X
|
1.5—12X
|
2.0—16X
|
|
Imaging
|
|
|
|
|
|
|
|
Frame Rate
|
50Hz
|
|||||
|
Digital Zoom
|
1X~4X (Smooth zoom)
|
1X~8X (Smooth zoom)
|
||||
|
Color Palettes
|
White Hot, Black Hot, Iron Red, Blue Hot, Red Hot (TrackIR PRO: Adjustable Red Hot)
|
|||||
|

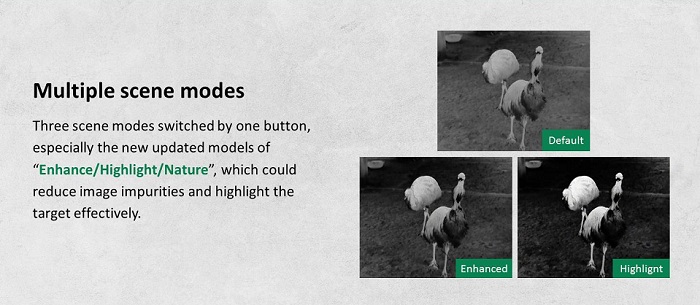

Scenes Modes
|
Enhanced, Highlignt, Natural
|
|||||
|
Picture-in-picture
|
Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right
|
|||||
|
Functions
|
||||||
|
|
√
|
√
|
√
|
√
|
√
|
√
|
|
Video
|
√
|
√
|
√
|
√
|
√
|
√
|
|
Hotspot tracking
|
√
|
√
|
√
|
√
|
√
|
√
|
|

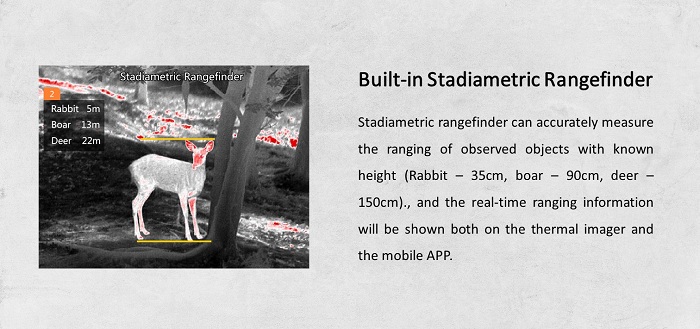

Stadiametric rangefinder
|
√
|
√
|
√
|
√
|
√
|
√
|
|

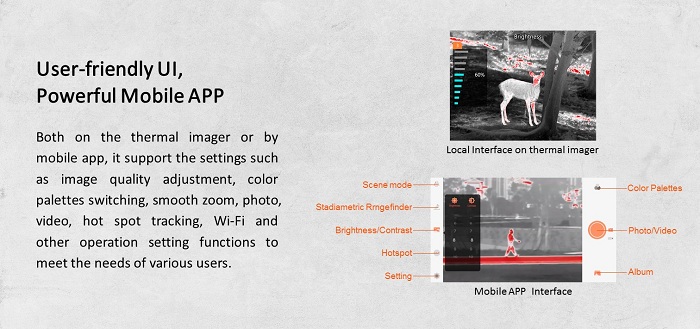

Wi-Fi/APP
|
Wi-Fi share photo and video, also can controlled by app（IOS & Android）
|
|||||
|
Compensation Modes
|
Auto Compensation / Shutter Compensation / Scene Compensation
|
|||||
|
Indicate Box
|
Red,/yellow/green, the coordinates of the indicate box is adjustable
|
|||||
|
Other
|
image enhancement, brightness and contrast of image are adjustable, auto power-off,
auto sleep, super power-save mode, the work indicator could be shut off |
|||||
|
Power Supply
|
||||||
|
Battery Type
|
Internal Li-ion battery (2x18650, 6000mAh)
|
|||||
|
Working Time
|
≥5h
|
≥4.5h
|
||||
|

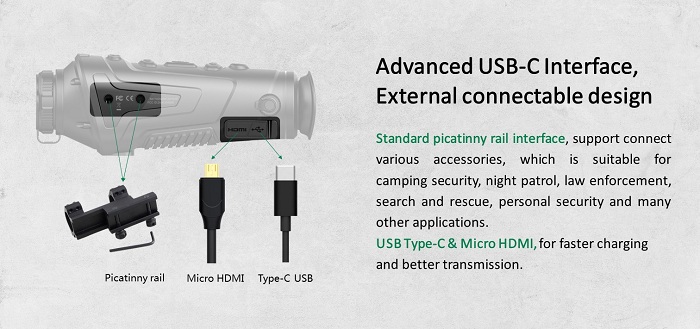

Interface
|
||||||
|
USB
|
TYPE C (USB 2.0 standard ) for charging, data tranmission
|
|||||
|
Video Output
|
Micro HDMI
|
|||||
|
External Connection
|
External Connection by a Picatinny rail
|
|||||
|
Memory Card
|
16 GB
|
|||||
|
Environmental Characteristics
|
||||||
|
Operating Temperature
|
-10℃～50℃
|
|||||
|
Storage Temperature
|
-30℃～60℃
|
|||||
|

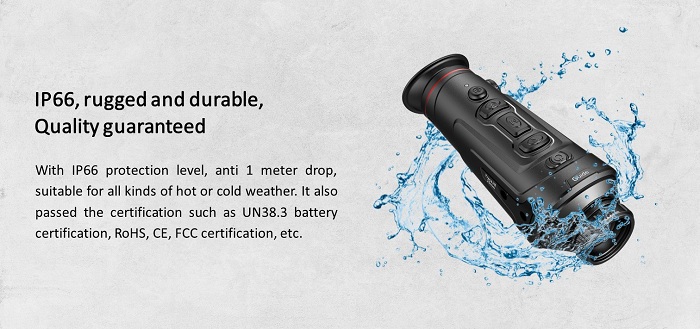

Encapsulation
|
IP66，1-meter drop test
|
|||||
|
Certificate
|
UN38.3 (Battery certificate), RoHS, CE, FCC, EAC
|
|||||
|
Weight & Dimensions
|
||||||
|
Weight
|
470g
|
485g
|
535g
|
490g
|
490g
|
560g
|
|
Dimensions
|
192×65×71
|
214×65×71
|
192×65×71
|
214x65x71
|
||
|
Package Contents
|
||||||
|
Standard
|
Power adapter,USB cable,Micro HDMI cable,Lens cover,Wrist strap,
Shoulder strap,Lining package,Quick Start Guide |
|||||
|
Optional
|
External Picatinny rail, External screen and etc…
|
|||||
|
Detection Range
|
||||||
|
Human：1.8m×0.5m
|
700m
|
1000m
|
1400m
|
800m
|
1000m
|
1400m
|
|
Vehicle：2.3m×2.3m
|
1700m
|
2400m
|
3000m
|
1850m
|
2400m
|
2800m
|
|
Recognition Range
|
||||||
|
Human：1.8m×0.5m
|
350m
|
500m
|
700m
|
400m
|
500m
|
700m
|
|
Vehicle：2.3m×2.3m
|
700m
|
1000m
|
1400m
|
800m
|
1000m
|
1400m
|
