Description

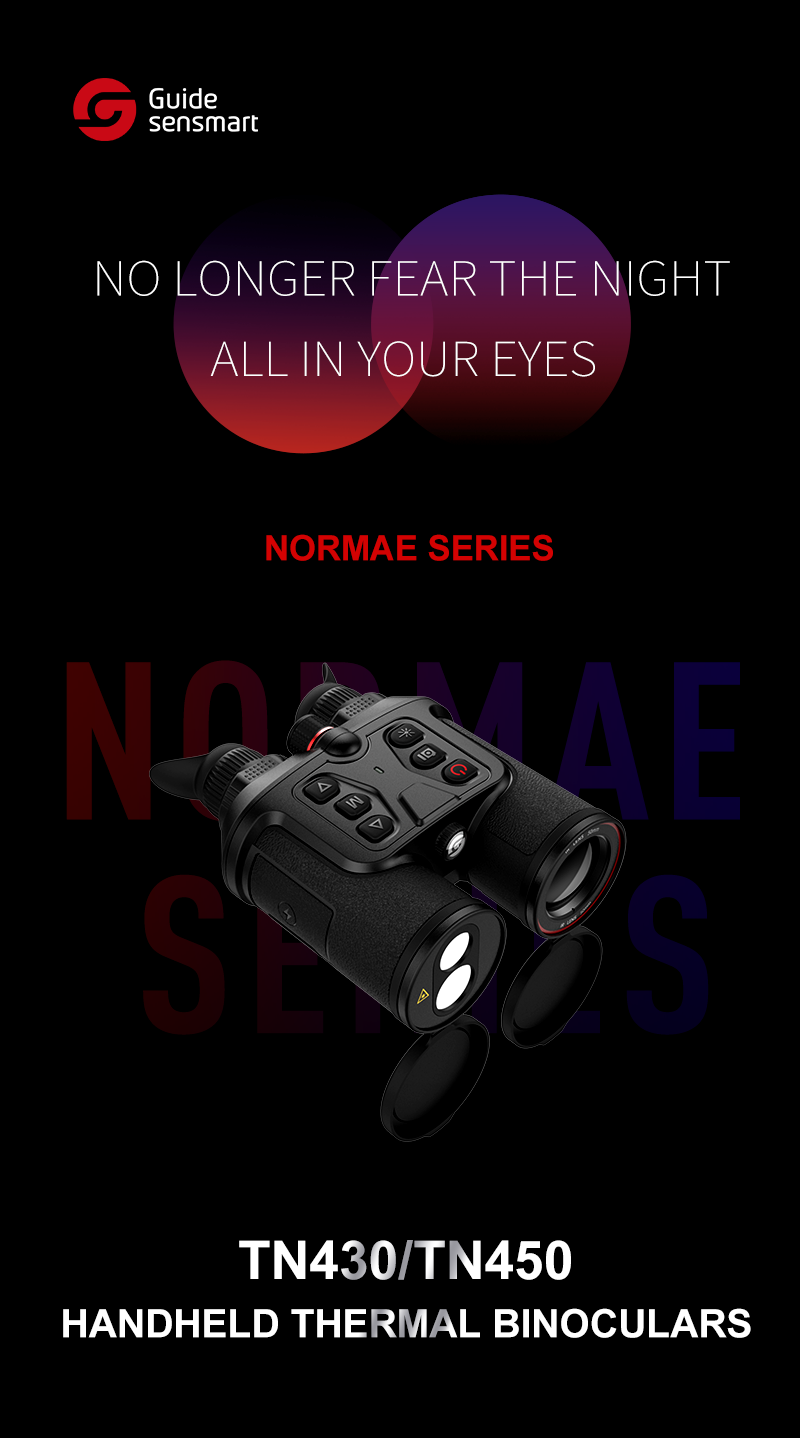

Guide TN Handheld Thermal Imaging Binoculars
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts
high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
Application
Counter-terrorism / Law Enforcement / Outdoor / Patrol / Search & Rescue / Personal Security
Product Features
Product Paramenters
|
Model
|
TN430
|
TN450
|
|
Detector
|
||
|
Detector Type
|
400×300 @17μm, VOx
|
|
|
Spectral
|
8μm～14μm
|
|
|
NETD
|
≤50mk
|
|
|
Lens
|
||
|
Focal Length
|
35mm/F1.2
|
50mm/F1.2
|
|
FOV
|
11.1°×8.3°
|
7.8°×5.8°
|
|
Focusing
|
Manual Focus
|
|
|
Display
|
||
|
Screen
|
Full-color 0.39'OLED Screen ×2，1024×768
|
|
|
Eyepiece
|
Exit pupil distance 16.4mm, Adjustable diopter -4~＋2, Adjustable interpupillary distance
between 60mm~70mm |
|
|
Magnification
|
2.3X~9.2X
|
3.2X~12.8X
|
|
Imaging
|
||
|
Frame Rate
|
50Hz
|
|
|
Digital Zoom
|
1X~4X (Smooth zoom)
|
|
|
Color Palettes
|
White Hot, Black Hot, Customized red hot, Blue Hot, Red Hot, Green hot
|
|
|
Scenes Modes
|
Enhanced, Highlight, Natural
|
|
|
Picture-in-picture
|
Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right
|
|
|
Functions
|
||
|
|
√
|
√
|
|
Video
|
√
|
√
|
|
Hotspot Tracking
|
√
|
√
|
|
Laser Designating
|
Red Yellow Green
|
|
|
Laser Ranging
|
Single ranging or continuous ranging
|
|
|
Wi-Fi/APP
|
Wi-Fi share photo and video, also can controlled by app（IOS & Android）
|
|
|
Compensation Modes
|
Auto Compensation / Shutter Compensation / Scene Compensation
|
|
|
Other
|
Smooth Magnification,Image Enhancement, Brightness and contrast of image are adjustable,GPS,Compass,Gyroscope,Bluetooth, etc
|
|
|
Power Supply
|
||
|
Battery Type
|
Removable Standard 18650 Li-ion battery x2
|
|
|
Working Time
|
≥6h
|
|
|
Interface
|
||
|
USB
|
TYPE C (USB 2.0 standard ) for charging, Data tranmission
|
|
|
Video Output
|
Micro HDMI
|
|
|
Tripod Interface
|
Inch 1/4-20
|
|
|
Memory Card
|
Built-in 16GB SD card,Max. support 128G
|
|
|
Environmental Characteristics
|
||
|
Operating Temperature
|
-10°C～50°C
|
|
|
Storage Temperature
|
-30°C～60°C
|
|
|
Encapsulation
|
IP66，1-meter drop test
|
|
|
Certificate
|
UN38.3 (Battery certificate), RoHS, CE, FCC, EAC
|
|
|
Weight & Dimensions
|
||
|
Weight
|
860g
|
880g
|
|
Dimensions
|
162mm×146mm×70mm
|
|
|
Package Contents
|
||
|
Standard
|
Power adapter,Type-C USB cable,Micro HDMI cable,Lens cover,Wrist strap, Removable shading eye blinders x2,Portable package,Quick
Start Guide |
|
|
Optional
|
Hand shank, Picatinny rail, Remote Control
|
|
|
Detection Range
|
||
|
Human：1.8m×0.5m
|
1000m
|
1400m
|
|
Vehicle：2.3m×2.3m
|
2400m
|
3000m
|
|
Recognition Range
|
||
|
Human：1.8m×0.5m
|
500m
|
700m
|
|
Vehicle：2.3m×2.3m
|
1000m
|
1400m
|
