Description

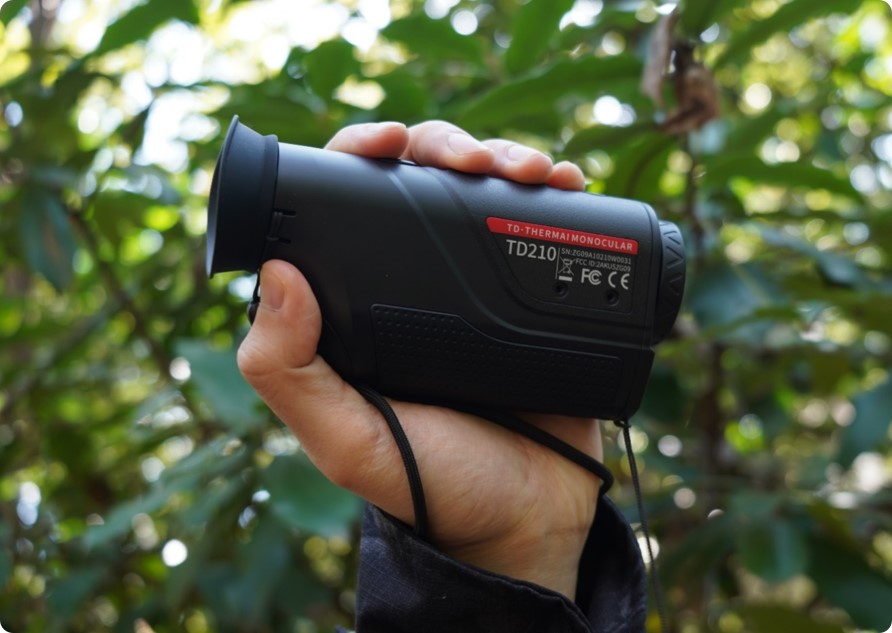

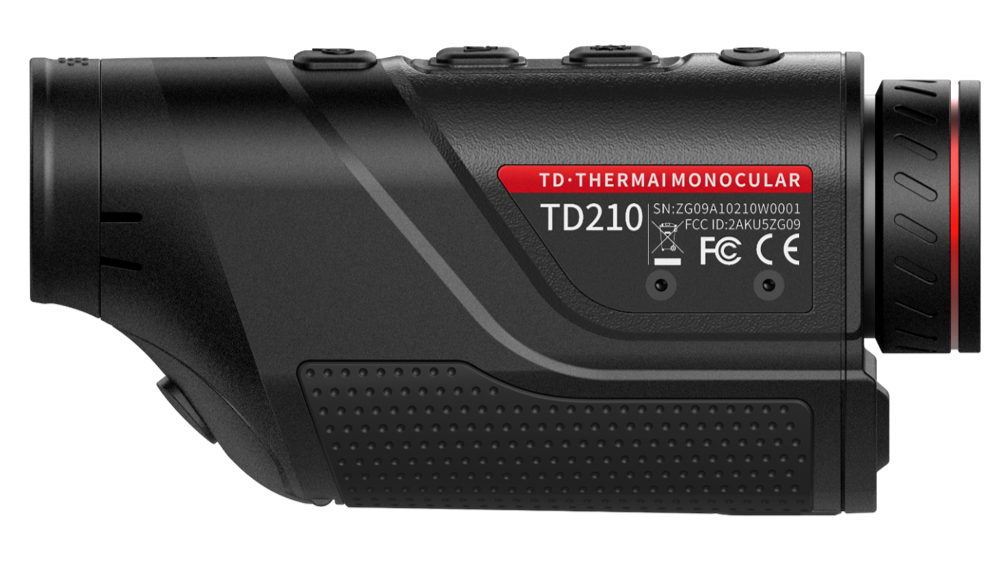

Guide TD Delphinus Series Handheld Thermal Imaging Monocular
TD210 Delphinus Series follow the design of traditional optical equipment. It is a small, lightweight , simple operation, and a wide range of application scenarios for infrared handheld thermal imaging monocular.
TD Thermal scope has clear imaging and comfortable observation, suitable for medium-distance and short-distance observation, It is an ideal equipment for outdoor night vision.
Product Features

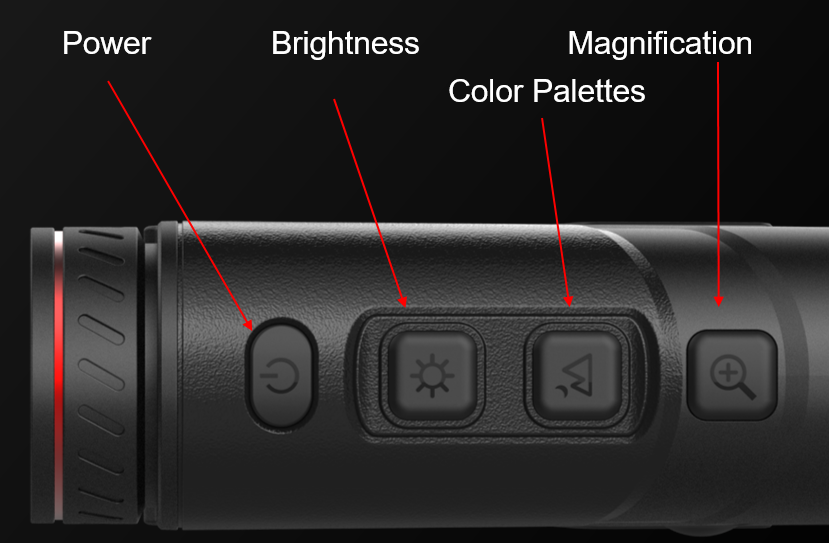

Simple and easy to use，Extremely flexible control
• Simple operation and easy to use
Open your thermal imaging horizon Immediately
The device has entered working mode by touching the power button，which is convenient for you to explore outdoors efficiently
Image Details Boost
Perception is everything
Perception is everything
• 1280 x 960 High-resolution LCOS Display. Vivid Colors for a comfort observation
In total darkness
Indicate the 200m target easily
Indicate the 200m target easily
with your partner

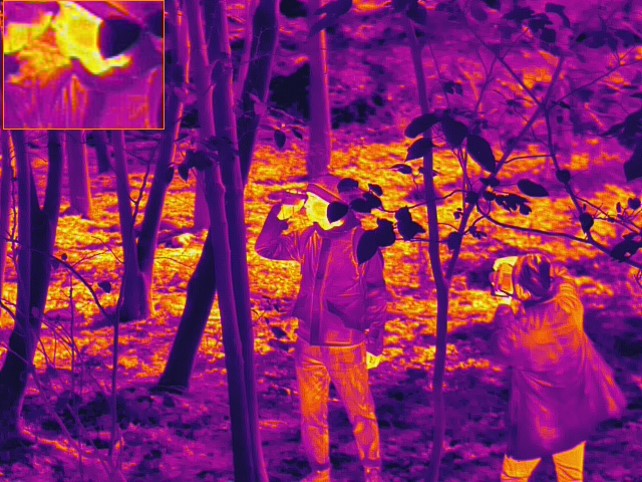

PIP mode
Highlight the Target
Highlight the Target
The PIP mode can zoom in on the target when you in the complex outdoor scenes, And highlight the details of the target

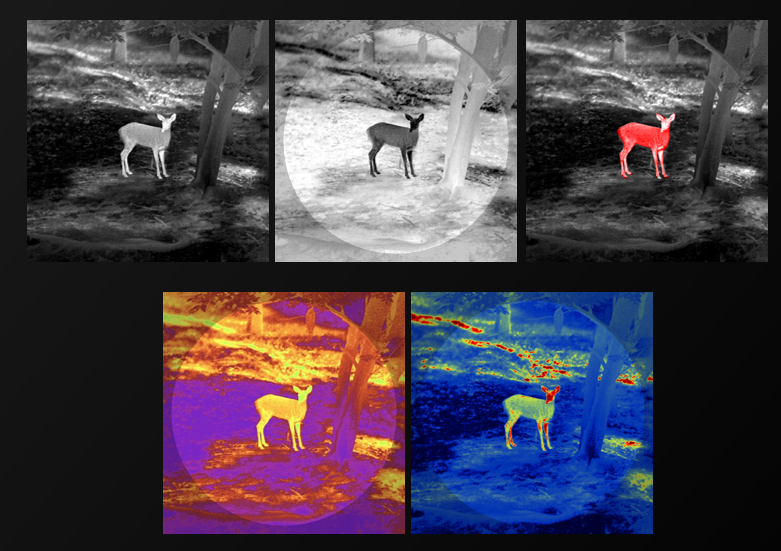

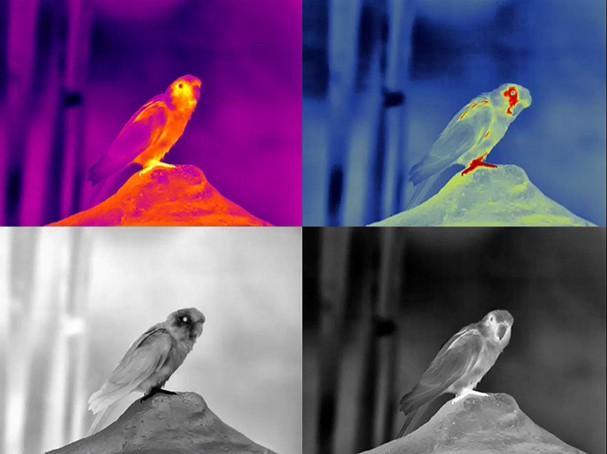

Multiple Color Palettes to Highlight the Target
• Six color palettes: white hot, black hot, red hot, iron red, blue heat.
• Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

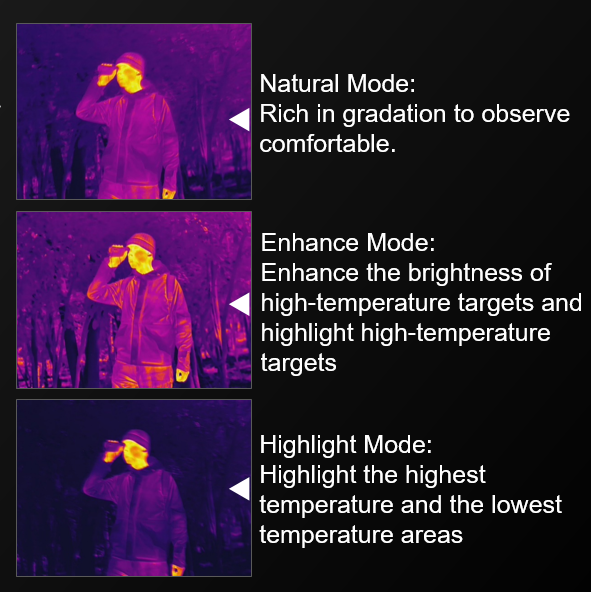

Three visual experiences，
Easy to control even in Complicated scenes
Easy to control even in Complicated scenes

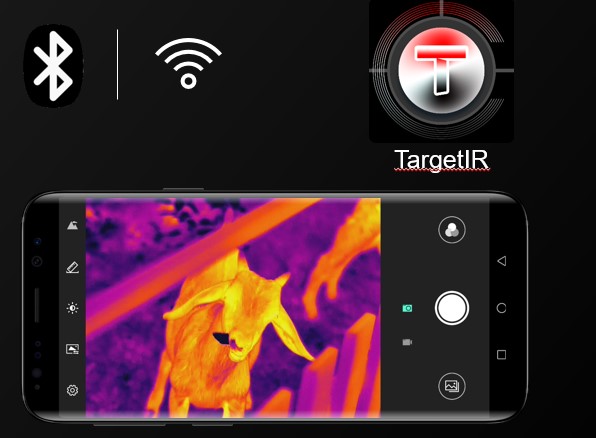

Share in real time by WIFI, Have Fun With Friends
• Connect Bluetooth Controller to remote control in real time

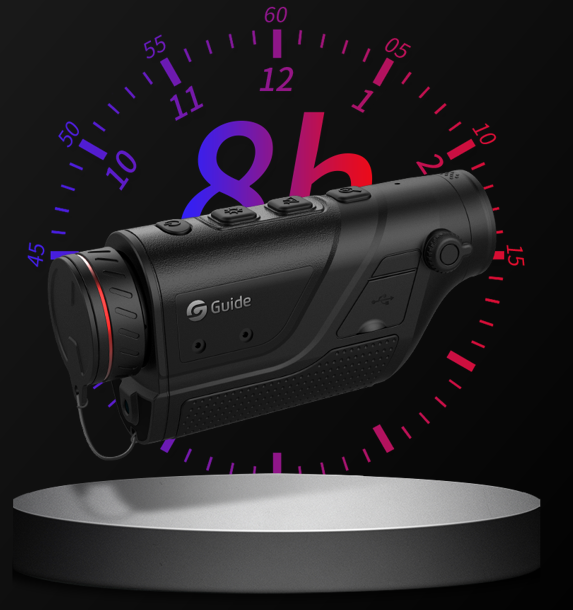

8 Hours
Super Long Operation Time
Super Long Operation Time
• Standard 18650 Battery , Easy to Purchase.

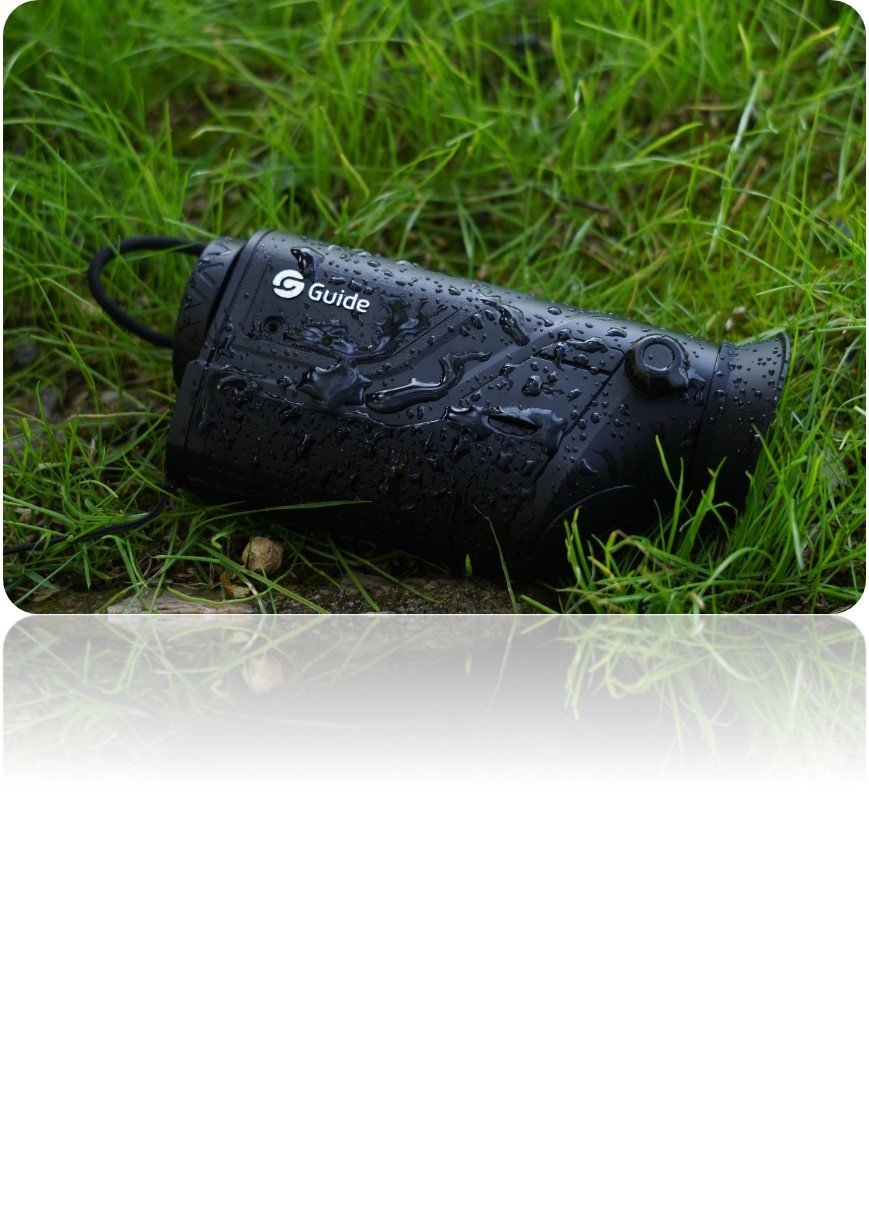

IP66, 1-meter Drop test
all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed
Applications
The Guide TD Delphinus Series is the Guide's beginner level Handheld Thermal Monocular which is widely used for
hunting, outdoor sports, search and rescue, law enforcement, and personal home security at night and other activities outdoor or in bad weather.

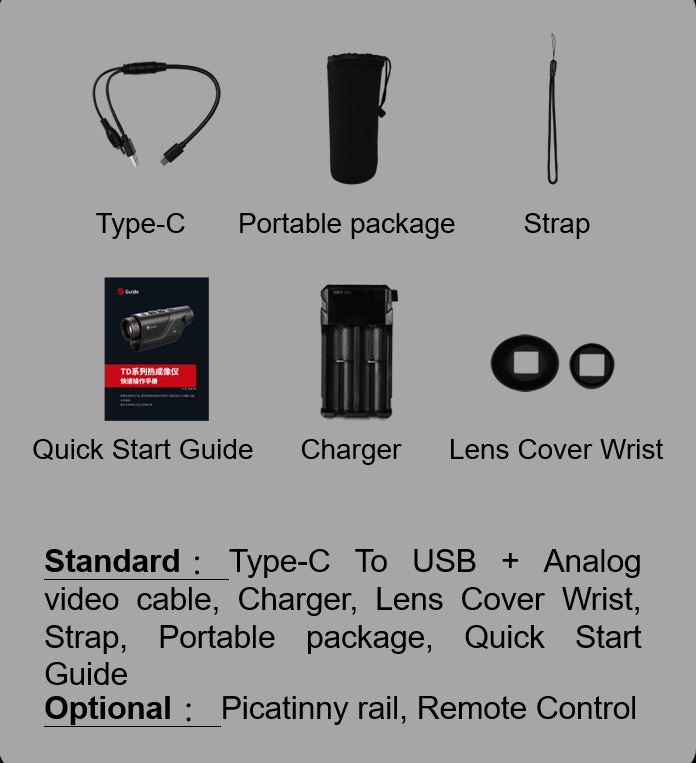

Accessories Introduction
Product Paramenters
|
Detector Type
|
256×192@12μm, VOx
|
|
Focal Length
|
10mm/F1.0
|
|
FOV
|
17.5°×13.1°
|
|
Focusing
|
Electric Focusing
|
|
Screen
|
Full-Color LCOS Screen,1280×960
|
|
Eyepiece
|
Exit pupil distance 17 mm, Adjustable diopter -4~＋2
|
|
Magnification
|
1.8X~3.6X
|
|
Frame Rate
|
25Hz
|
|
Picture-in-picture
|
Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right
|
|
Hotspot Tracking
|
√
|
|
WIFI/APP
|
Connect App (IOS & Android) via WIFI to realize remote control, live image and video transmission
|
|
Battery Type
|
Removable Standard 18650 Li-ion battery x1
|
|
Working Time
|
≥8h
|
|
USB/Video Output
|
TYPE C(USB 2.0 Standard)Interface for charging, data transmission and simulation video output
|
|
Laser Indicator
|
Yes, Distance within 200m
|
|
Operating Temperature
|
-10°C～50°C
|
|
Encapsulation
|
IP66，1-meter drop test
|
|
Certificate
|
UN38.3 (Battery certificate), RoHS, CE, FCC, EAC
|
|
Weight
|
360g
|
|
Dimensions
|
143mm×45mm×73mm
|
