New Arrival Guide PS800 Portable Thermografic Camera Infrared thermal camera Industrial thermal camera for sale
Won IF Design Award in Germany
The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels visible light camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts.
Product Features
Product Paramenters
|
Model
|
PS400
|
PS600
|
PS610
|
PS800
|
|
IR Imaging Performance
|
||||
|
Detector type
|
384×288@17μm, VOx
|
640×480@17μm, VOx
|

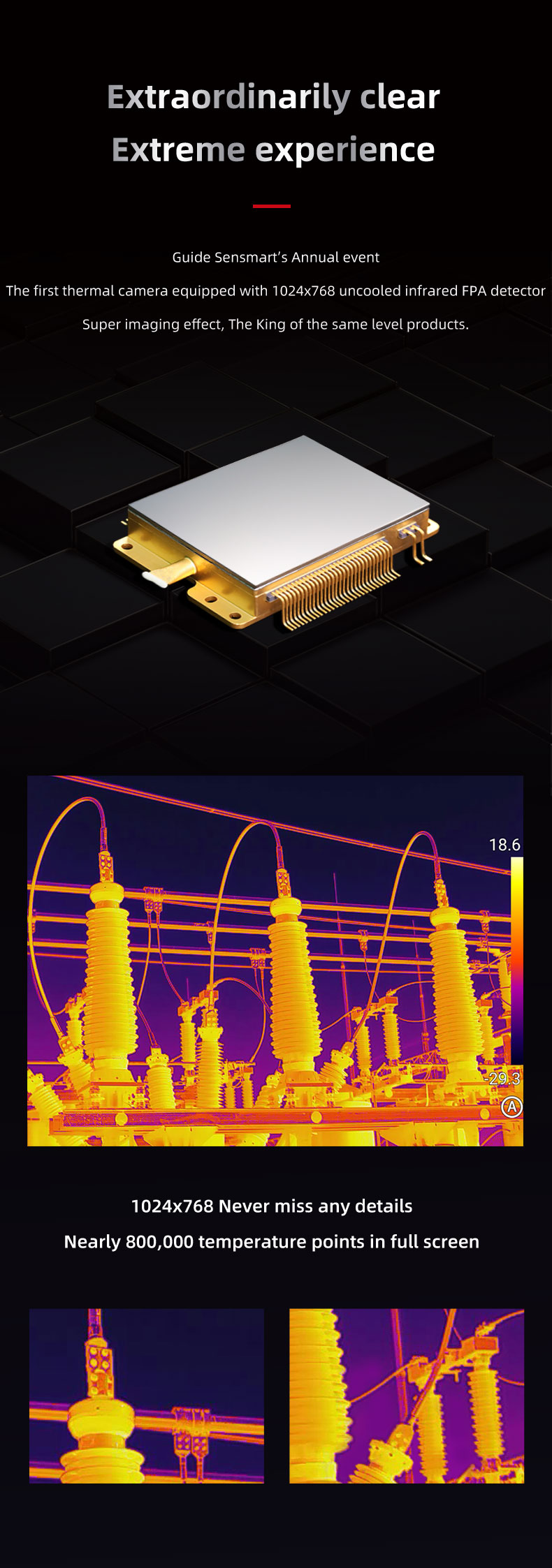

1024×768@12μm, VOx
|
|
|
Spectral
|
7.5~14μm
|
|||
|
Frame rate
|
30Hz/9Hz
|
25Hz/9Hz
|
||
|
NETD
|
45mk
|
40mk
|
30mk
|
30mk
|
|
Lenses Options
|
||||
|
Focal length
|
15mm
|
25mm
|
28mm
|
|
|
FOV
|
25°×19°
|
|||
|
IFOV
|
1.13mrad
|
0.68mrad
|
0.43mrad
|
|
|
Min focus distance
|
0.15m
|
0.3m
|
0.3m
|
|
|
D:S
|
885:1
|
1470:1
|
2325:1
|
|
|

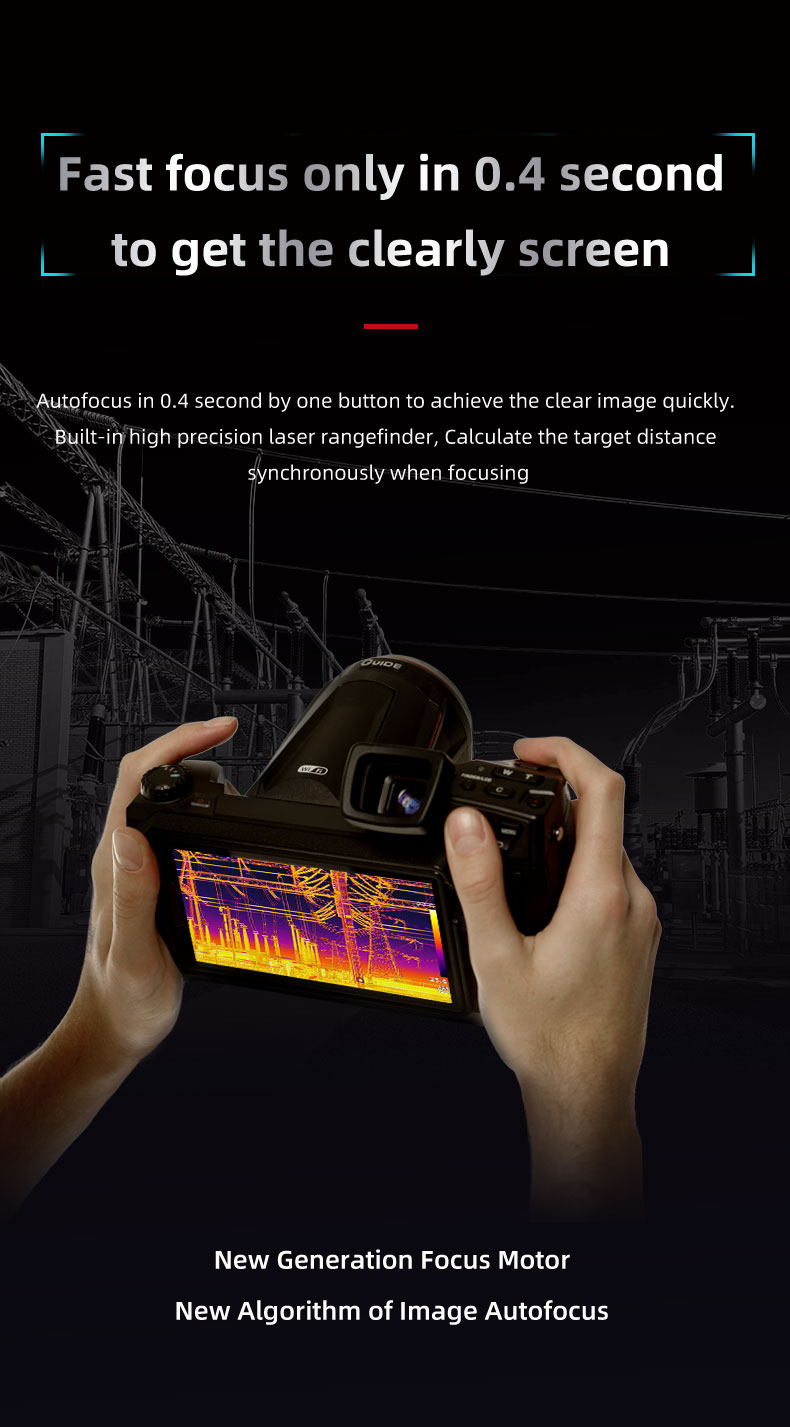

Focus
|
1-touch fast autofocus, support electric/manual focus switch
|
|||
|
Lens Identification
|
Automatically identify and calibrate the lens without manual switching
|
|||
|
Image Presentation
|
||||
|
Visual Image
|
8 million pixels, autofocus
|
13 million pixels, autofocus
|
||
|
LCD Display
|
5",1280×720 High Light Touch Screen
|
|||
|
Viewfinder
|
1280×960 LCOS Screen
|
|||
|
Image Mode
|
IR image/Visual image/PIP/MIF
|
|||
|
Digital Zoom
|
1×~10× continuously
|
1×~35× continuously
|
||
|
Color Palettes
|
8 Color Palettes, and customizable
|
10 Color Palettes, and customizable
|
12 Color Palettes, and customizable
|
|
|
Super-resolution
|
4× Super-resolution, 768x576
|
4× Super-resolution, 1280x960
|
4× Super-resolution, 2048x1536
|
|
|
Functions
|
||||
|

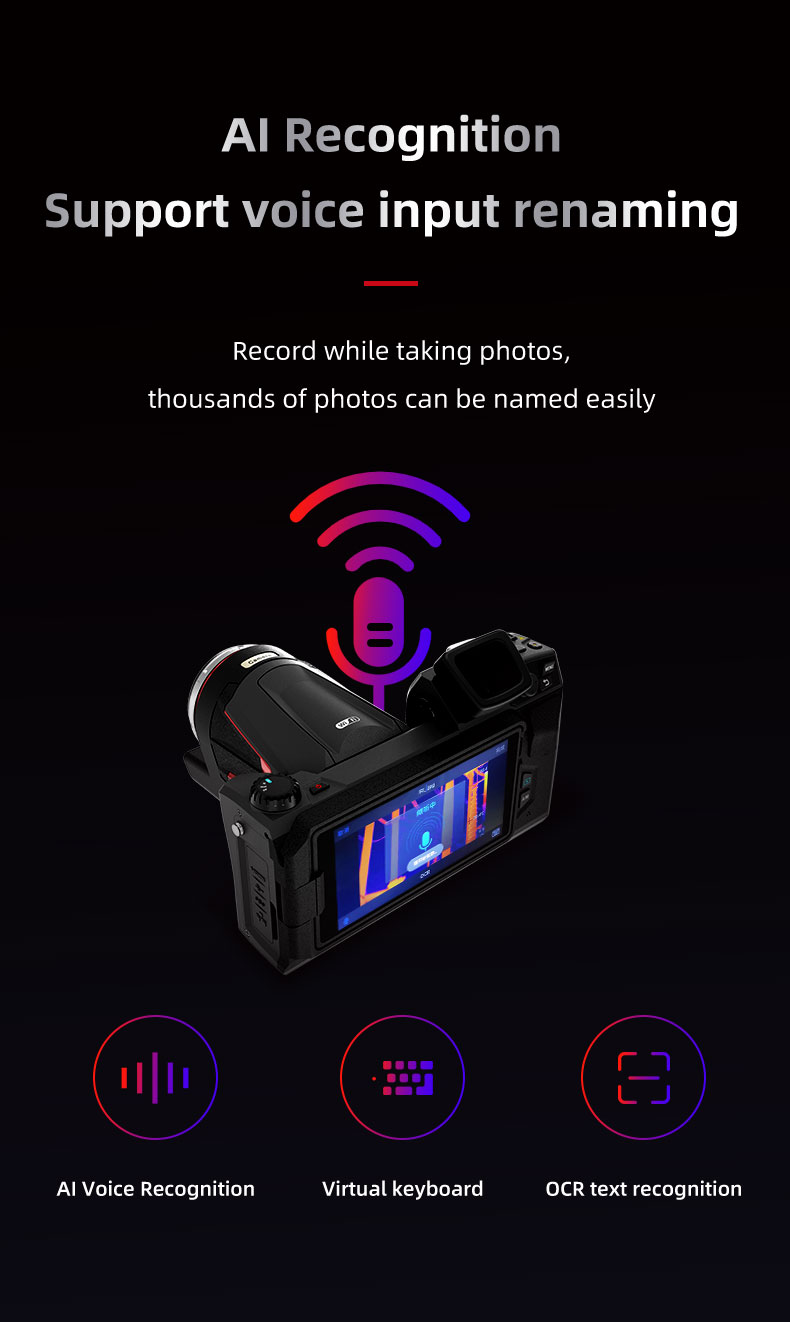

AI Voice Naming
|
Support AI voice naming, AI text recognition naming (text can be recognized by taking pictures), and typing
|
|||
|
Professional Laser Rangefinder
|
The distance between the thermal camera and target is automatically measured and displayed on the thermal image
|
|||
|
Temperature Measurement for Areas
|
Automatically measure the area of the boxes and circles
|
|||
|
Smart Stroke
|
Automatically outline the target contour by setting the area and tolerance (color difference between two pixels)
|
|||
|
Measurement Corrections
|
Support emissivity correction, atmospheric transmittance correction and optical transmittance correction
|
|||
|
Level Span
|
Automatic, semi-automatic, manual
|
|||
|
Panorama Image Mosaic
|
N/A
|
YES
|
||
|
Cloud Service
|
Support local and cloud data upload and download
|
|||
|
Measurement
|
||||
|

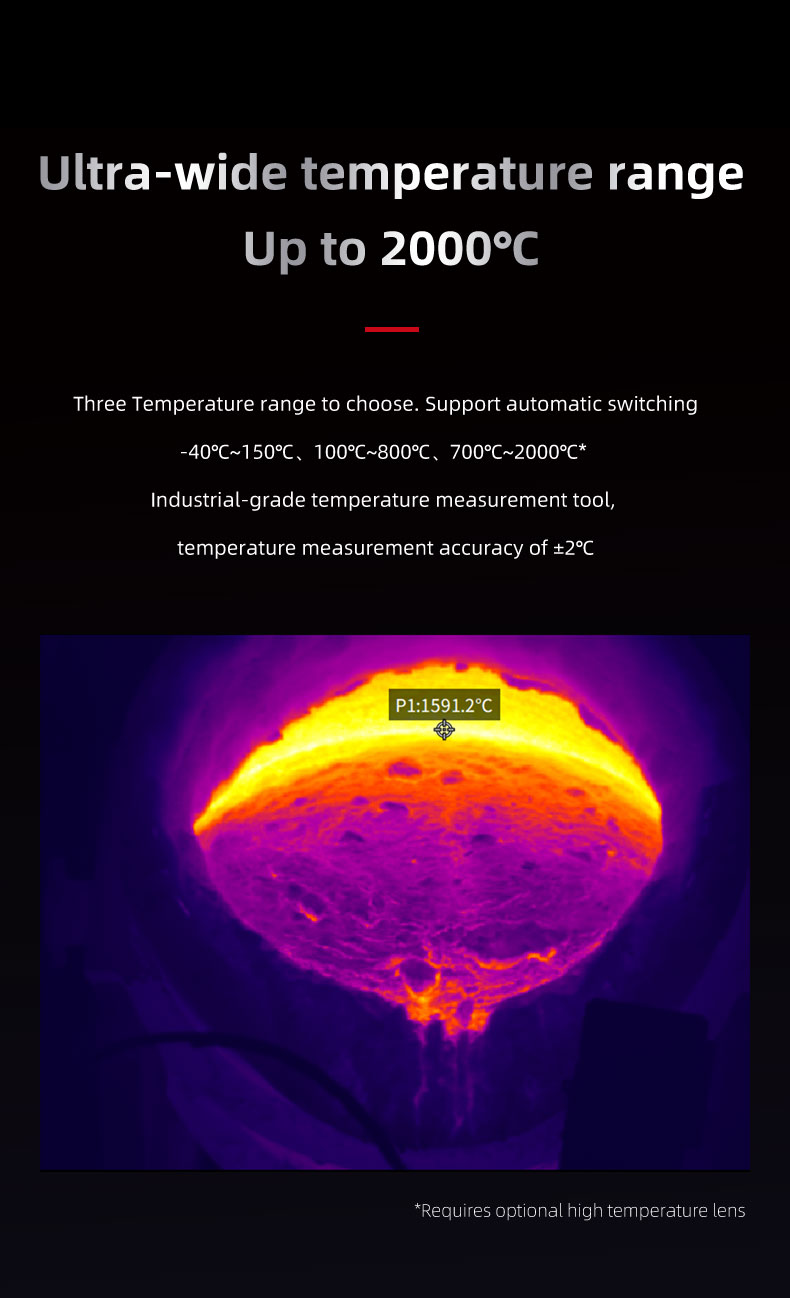

Temp Measurement Range
|
Support auto-switching, Filter 1:-40°C~150°C; 2:100°C~800°C; Optional 700°C~2000°C(High temperature lens required)
|
|||
|
Accuracy
|
±2°C~±2%, whichever is greater
|
±1°C~±1%, whichever is greater
|
||
|
Temp Measurement Area (IR/PIP)
|
spot×12, line×12, area×12
|
spot×16, line×16, area× 16
|
spot×20, line×20, area×20
|

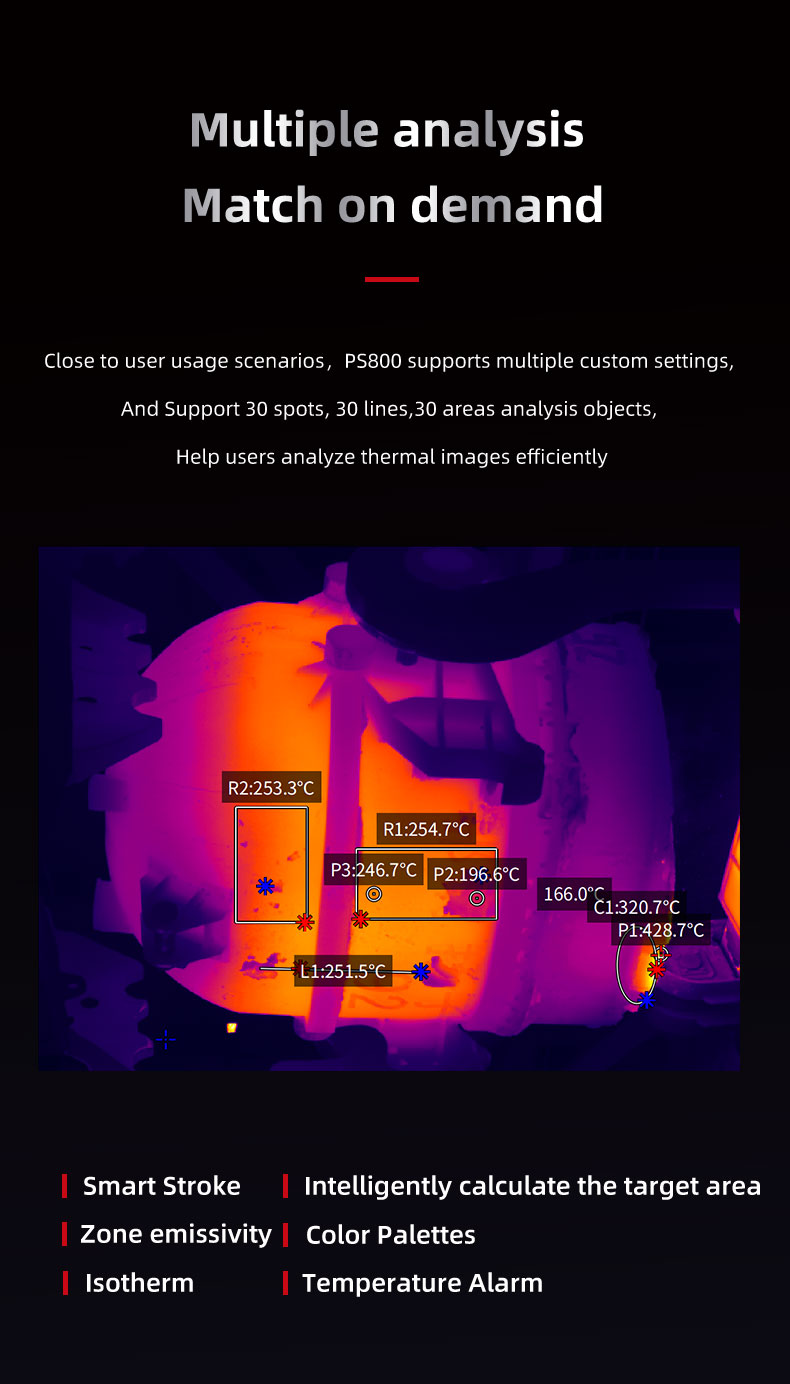

spot×30, line×30, area×30
|
|
Analysis Storage
|
The analysis object can be saved with the image (spots, lines, areas)
|
|||
|
Auto Max & Min Temp Tracking (IR / PIP)
|
It can track the highest temperature/lowest temperature/average temperature of the whole screen and the analysis object at the
same time |
|||
|
Isotherm
|
Up and down, centered interval
|
|||
|
Temperature Alarm
|
Automatic alarm (image and sound) when exceeding the alarm temperature threshold, and supports the area alarm function
|
|||
|
Storage
|
||||
|
Image Storage
|
Built-in 64G, external SD card supports up to 64G
|
|||
|
Image Format
|
Picture format JPG (with temperature information)
|
|||
|
Video Format
|
MP4 (without temperature information) or IRGD (with temperature information)
|
|||
|

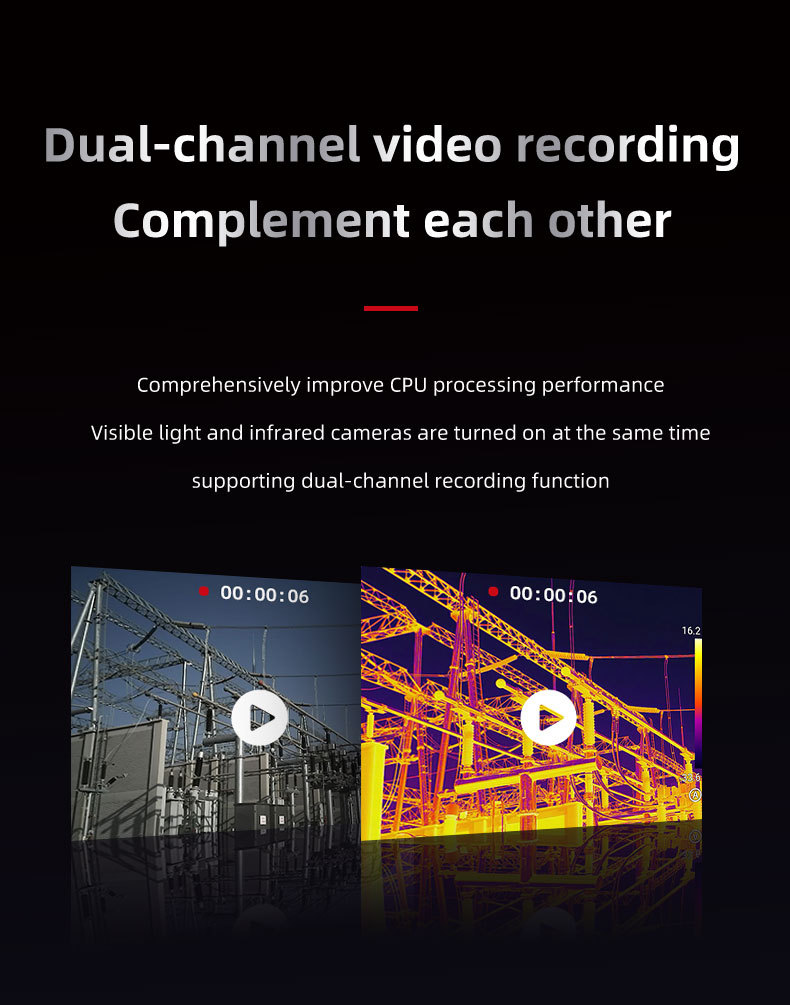

Dual-path Recording
|
Support simultaneous recording of visible light and infrared video (with temperature data), support manual storage/timing storage
|
|||
|
Other
|
||||
|
Hardware
|
Flashlight, laser (laser indication, ranging, focus), WIFI, microphone (adjustable volume), speaker (adjustable volume),
electronic compass, GPS, light sensor, Bluetooth |
|||
|
Interface
|
TYPE-C (used to transmit native image data with PC), power supply (12V), SD card, Gigabit Ethernet, Micro HDMI, tripod interface
|
|||
|
Battery
|
Rechargeable lithium battery (according to UN38.3 certification); can work for 4 hours (comprehensive working time); with sleep
mode |
|||
|
Working Temperature
|
Working temperature: -20°C~50°C Storage temperature: ﹣40°C~70°C
|
|||
|
Encapsulation
|
IP54
|
|||
|
Size
|
206mm×145mm×135mm
|
206mm×169mm×135mm
|
||
|
Weight
|

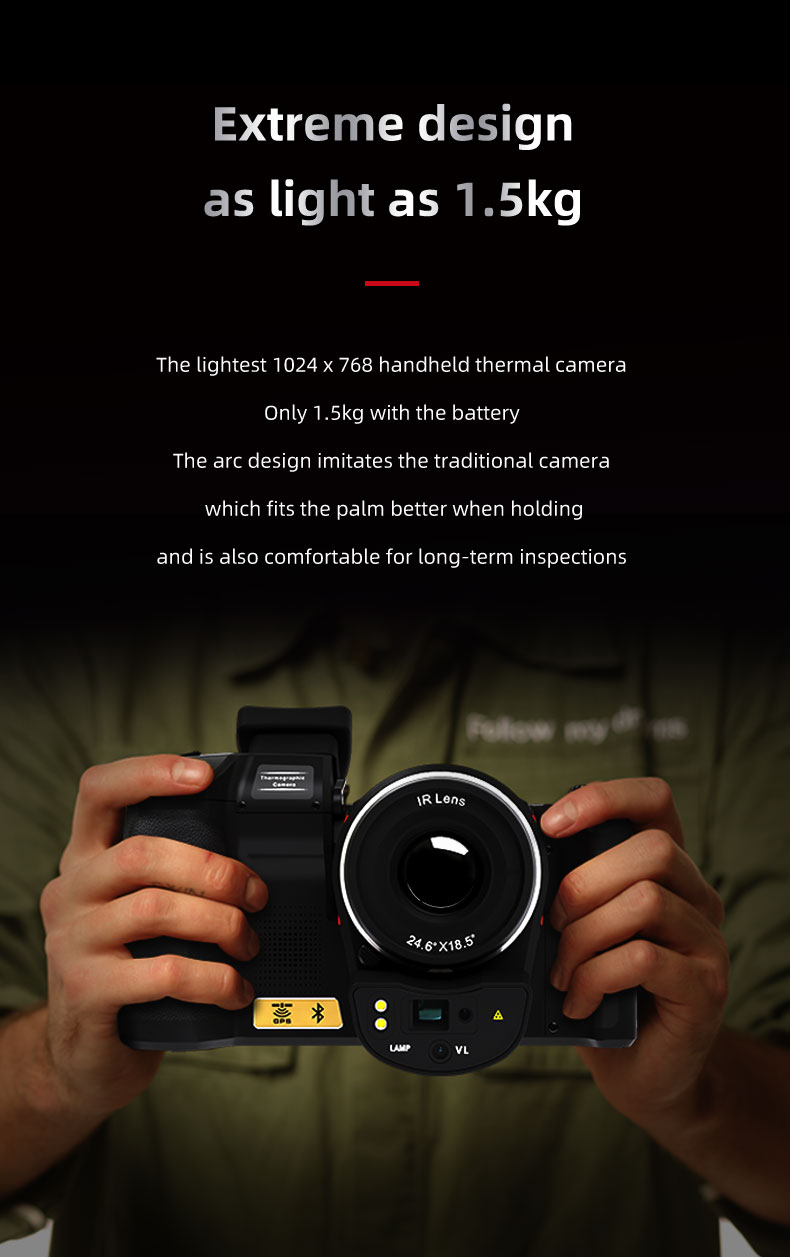

1350g
|
|||
|
Certificates
|
CE, FCC, ROHS, KC, UN38.3
|
|||
|
Standard Accessories
|
Thermal Camera, Lens Cover, 2 Lithium Batteries, Power Adapter, Adapter Plug (5), TYPE-C to USB cable, Micro HDMI to HDMI cable,
Network Cable, Quick Start Guide, User Manual, Data Download Card, SD Card (64GB), Shoulder Strap, Safety box, Calibration Certificate |
|||
|
Optional Accessories
|
Lithium Battery, Carrying bag, Cradle Charger, Bluetooth Headset, Extended Lens(Wide-angle/Medium telephoto/Telephoto/Macro/High
temperature), Lens Bag, 4G LTE USB Dongle |
|||
