Guide PS Series Infrared Camera

Save 9%
Guide SensmartSKU: YQ-PS400
No reviews

Style: PS400 384×288@17μm
Price:
Sale price$5,999.00 USD Regular price$6,599.00 USD

Shipping calculated at checkout

Stock:
In stock

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Guide PS Series High Performance Thermal Camera

Won IF Design Award in Germany Built for the Experts

The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels digital camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts

Product Features

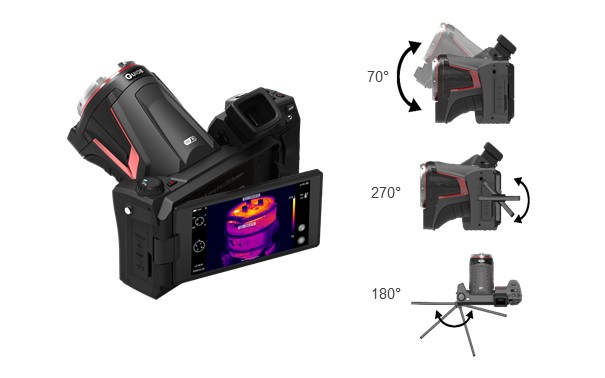

Ergonomic Design for Better Viewing Experience

The IF Design Awarded rotating lens and screen structure helps users quickly diagnose failing components in hard-to-reach areas.

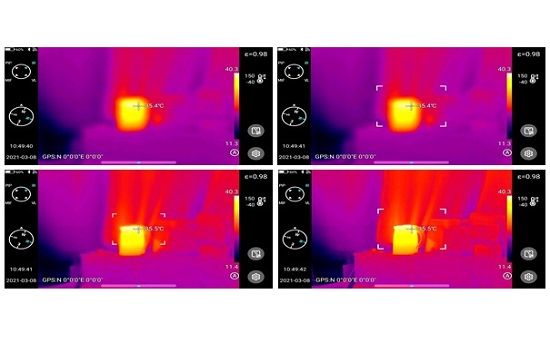

Fast Focus in 0.4 Second
Adopts a new generation of focus motor and professional laser rangefinder to achieve 0.4 second one-touch smart autofocus

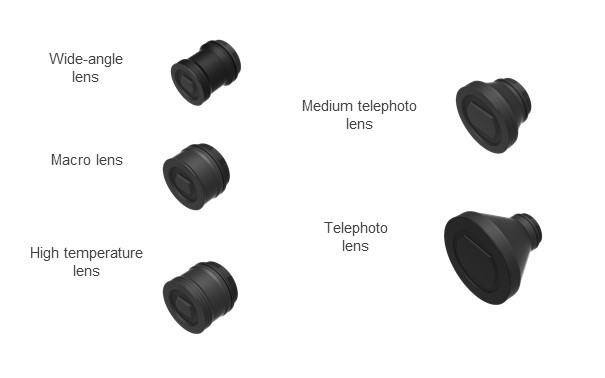

Calibration-free Lenses
Calibration-free extended lenses function, for more application scenarios
No need factory-calibration, time-saving and cost-saving

Cloud Service
Share images to the Cloud anytime, anywhere, for remote analysis and problem feedback
WIFI Connect
1. Mobile hotspot
2. Wireless router
3. 4G mobile communication (optional)

Image Processing Technology
MIF Patent Technology of Multi-spectral Image Fusion

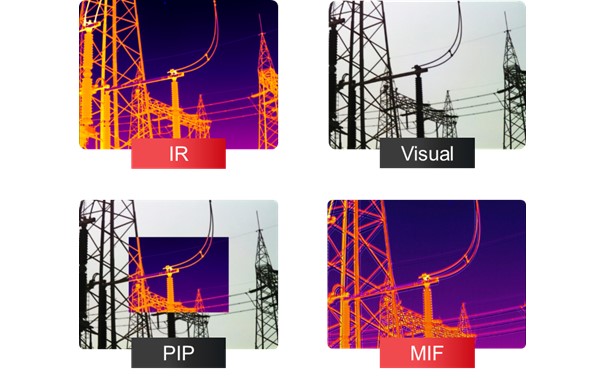

Provides four image modes: IR, visible light, PIP and MIF. The unique MIF mode supports the fusion of visible light image details
on the thermal image, which will comprehensively improve your observation experience and work efficiency

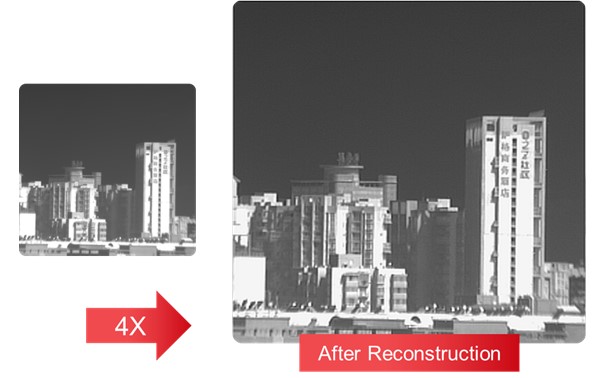

Image Super-resolution Reconstruction
The image details can be increased by specific algorithm. Super-resolution reconstruction can increase the pixel of infrared image to 4 times the original, and obtain high-quality imaging effect

Product Paramenters

Model
PS400
PS600
PS610
IR Imaging Performance
Detector type
384×288@17μm, VOx
640×480@17μm, VOx
Spectral
7.5~14μm
Frame rate
30Hz/9Hz
NETD
45mk
40mk
30mk
Lenses Options(* Focal length/ FOV / IFOV / Min focus distance # FOV / IFOV / Working distance @ FOV )
Standard Lens*
15mm/24.9°x18.7°/1.13mrad/0.15m
25mm/24.6°×18.5°/0.68mrad/0.3m
Wide Angle*
7.78mm/48.1°x35.9°/2.19mrad/0.1m
13mm/45.4°×34.8°/1.31mrad/0.15m
Telephoto*
33mm/11.2°x8.4°/0.52mrad/2m
55mm/11.3°×8.5°/0.31mrad/2m
Ultra-Telephoto*
50.7mm/7.3°×5.5°/0.34mrad/4m
85mm/7.3°×5.5°/0.2mrad/4m
Macro Lens#
67mm/23.3mm*17.5mm/60.7μm
67mm/23.3mm*17.5mm/37.5μm
High Temp@
24.9°*18.7°
24.6°*18.5°
Focus
1-touch fast autofocus, support electric/manual focus switch
Lens Identification
Automatically identify and calibrate the lens without manual switching
Image Presentation
Visual Image
800 million pixels, autofocus
1300 million pixels, autofocus
LCD Display
5",1280×720 High Light Touch Screen
Viewfinder
1280×960 LCOS Screen
Image Mode
IR image/Visual image/PIP/MIF
Digital Zoom
1×~10× continuously
1×~35× continuously
Color Palettes
8 Color Palettes, and customizable
10 Color Palettes, and customizable
12 Color Palettes, and customizable
Super-resolution
4× Super-resolution, 768 x 576
4× Super-resolution, 1280 x 960
Functions
AI Voice Naming
Support AI voice naming, AI text recognition naming (text can be recognized by taking pictures), and typing
Professional Laser Rangefinder
The distance between the thermal camera and target is automatically measured and displayed on the thermal image
Temperature Measurement for Areas
Automatically measure the area of the boxes and circles
Smart Stroke
Automatically outline the target contour by setting the area and tolerance (color difference between two pixels)
Measurement Corrections
Support emissivity correction, atmospheric transmittance correction and optical transmittance correction
Level Span
Automatic, semi-automatic, manual
Panorama Image Mosaic
N/A
YES
Cloud Service
Support local and cloud data upload and download
Measurement
Temp Measurement Range
Support auto-switching, Filter 1:-40°C~150°C; 2:100°C~800°C; Optional 700°C~2000°C(High temperature lens required)
Accuracy
±2°C~±2%, whichever is greater
±1°C~±1%, whichever is greater
Temp Measurement Area (IR/PIP)
spot × 12, line × 12, area × 12
spot ×16, line ×16, area × 16
spot ×16, line ×16, area × 16
Analysis Storage
The analysis object can be saved with the image (spots, lines, areas)
Auto Max & Min Temp Tracking (IR / PIP)
It can track the highest temperature/lowest temperature/average temperature of the whole screen and the analysis object at the
same time
Isotherm
Up and down, centered interval
Temperature Alarm
Automatic alarm (image and sound) when exceeding the alarm temperature threshold, and supports the area alarm function
Storage
Image Format
Built-in 64G, external SD card supports up to 64G
Image Internal Storage
Picture format JPG (with temperature information)
Video Format
MP4 (without temperature information) or IRGD (with temperature information)
Dual-path Recording
Support simultaneous recording of visible light and infrared video (with temperature data), support manual storage/timing storage
Other
Hardware
Flashlight, laser (laser indication, ranging, focus), WIFI, microphone (adjustable volume), speaker (adjustable volume),
electronic compass, GPS, light sensor, Bluetooth
Interface
TYPE-C (used to transmit native image data with PC), power supply (12V), SD card, Gigabit Ethernet, Micro HDMI, tripod interface
Battery
Rechargeable lithium battery (according to UN38.3 certification); can work for 4 hours (comprehensive working time); with sleep
mode
Working Temperature
Working temperature: -20°C~50°C Storage temperature: ﹣40°C~70°C
Encapsulation
IP54
Size/Weight
206mm×145mm×135mm, 1350g
Certificates
CE, FCC, ROHS, KC, UN38.3, certification of Chinese Academy of Metrology, certification of China Electric Power Research Institute
Standard Accessories
Thermal Camera, Lens Cover, 2 Lithium Batteries, Power Adapter, Adapter Plug (5), TYPE-C to USB cable, Micro HDMI to HDMI cable,
Network Cable, Quick Start Guide, User Manual, Data Download Card, SD Card (64GB), Shoulder Strap, Safety box, Calibration
Certificate
Optional Accessories
Lithium Battery, Carrying bag, Cradle Charger, Bluetooth Headset, Extended Lens, Lens Bag
