Description
-
Guide PC230 Tool-like Thermal Camera
Featuring one-button autofocus and the longer measurement distance, PC 230 can be used under more scenes with 256x192 IR Detector and 2M pixels for visible light. Utilizing the New SharpIR composite image enhancement technology, it can provide you with detailed infrared thermal imaging and dual-light fusion images to help you find potential faults more quickly. - Model Number:PC230
- Product name:Tool - Like Thermal Camera
- IR Sensor:256*192
- Certificate:CE, FCC, ROHS, KCC, IP54, Impact test, UN38.3, MSDS
- Frame Rate:25HZ
- Field of view:25° * 19°
- Display:2.4'' Color LCD
- Measuring Range:-20℃-550℃
- Battery working time:16 hours
- Drop test:2 meter drop test, IP54
- Interface:USB Type-C
- Supply Ability5000 Set/Sets per Month
- Packaging DetailsStandard Export Package
- PortWuhan
- Picture Example:
- Lead Time:Quantity(Sets)1 - 1>1Est. Time(days)15To be negotiated
Products Description
Guide PC230 Tool-like Thermal Camera
Featuring one-button autofocus and the longer measurement distance, PC 230 can be used under more scenes with 256x192 IR Detector and 2M pixels for visible light. Utilizing the New SharpIR composite image enhancement technology, it can provide you with detailed infrared thermal imaging and dual-light fusion images to help you find potential faults more quickly.
Product Features
Product Paramenters
|
Model
|
PC230
|
|
Detector type
|
256×192@12μm, VOx
|
|
Focal Length
|
7 mm
|
|
Field of view(FOV)
|
25° × 19°
|
|
Focus
|
Focus-Automatic
|
|
Visible Camera Resolution
|
200W pixel, Resolution optional (240×320/1600×1200)
|
|
Flashlight
|
Yes
|
|
Display
|
2.4" LCD screen，240×320
|
|
Image Model
|
IR, Visible, Picture-in-Picture, MIF
|
|
Temperature Range
|
-20°C-150°C， 100°C-550°C（Auto switching）
|
|
Measurement Analysis
|
Center spot
|
|
Measurement Area
|
3(incl. max & min temp)
|
|
Auto Hot & Cold Spot Tracking
|
Yes
|
|
Alarm
|
Full Screen Max & Min Spot Alarm,Support Image and flash light Alarm
|
|
Image Storage
|
|
|
Storage Media
|
TF card (32 GB)
|
|
Image Format
|
IR/MIF/PIP imaging mode: jpg format with temperature data (256*192) ; Visible light imaging mode: jpg format without temperature
data (240*320) |
|
Connections & Communications
|
|
|
USB
|
TYPE-C、TF Card slot
|
|
Laser
|
Yes
|
|
Tripod interface
|
Yes
|
|
PC IR Analysis Software
|
Yes
|
|
Power System
|
|
|
Battery Tpye
|
Rechargeable Li ion battery
|
|
Battery Operating Time
|
16 hours
|
|
Charging Time
|
Internal charge，≤2.5 hours
|
|
Environmental Parameters
|
|
|
Operating Temperature
|
-15°C~50°C
|
|
Storage Temperature
|
-40°C~70°C
|
|
Encapsulation
|
IP54，2-meter drop test
|
|
Certification
|
CE, FCC, ROHS, KCC, IP54, 2m drop test, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS
|
|
Weight
|
about 375g
|
|
Size
|
194mm×61.5mm×76mm
|
|

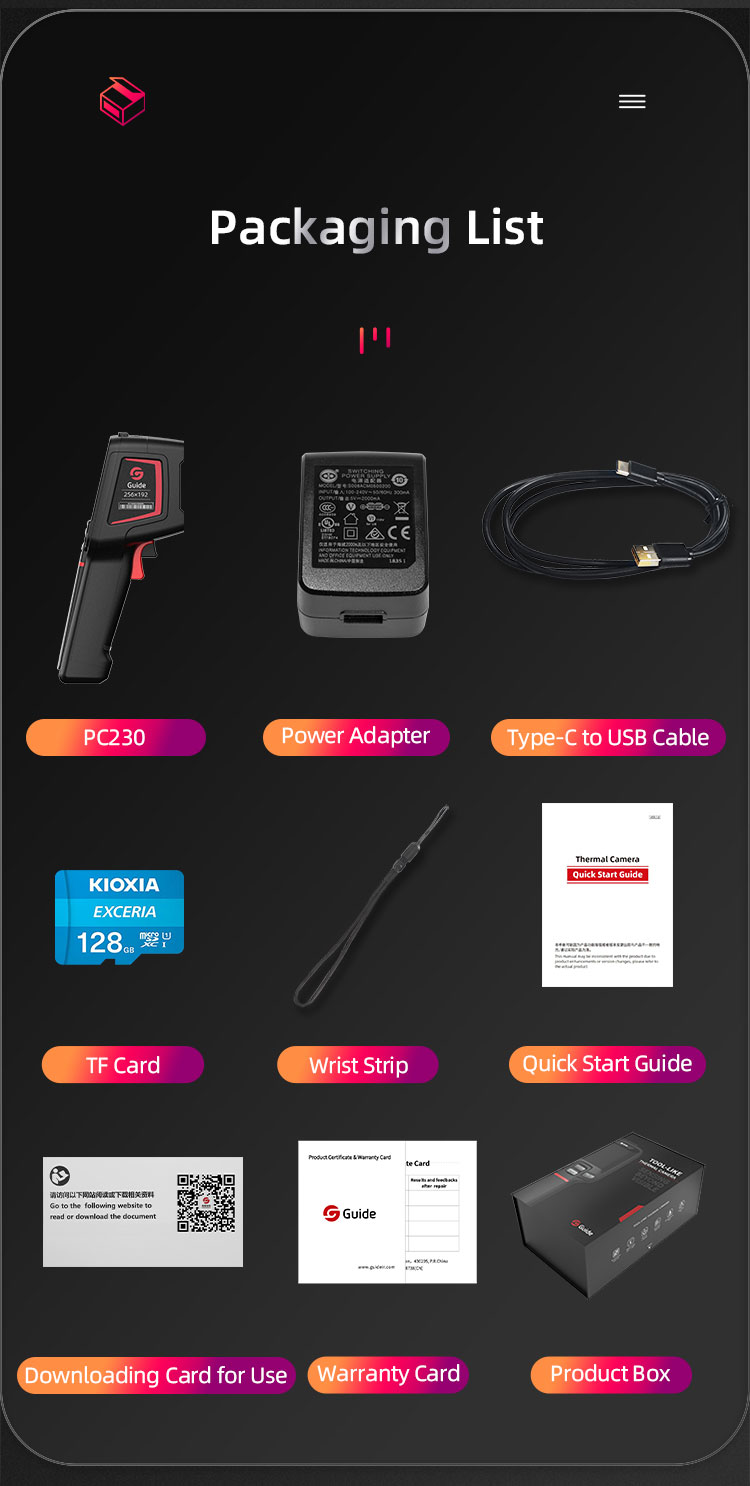

Standard Accessories
|
Charger + Adapter, TYPE-C USB cable, Wrist Strap, Quick start Guide, Data Download Card, 32G TF Card
|
