Adopts 256x192 infrared module with Excellent imaging quality
Description
Guide PC210 Tool-like High Definition Thermal Camera
PC210 is a Tool-like Handheld Thermal Camera, With excellent performance in image quality and charging battery life ,This Thermal Camera adopts 256x192 IR Detector and 200W pixel visible light . Adopts the New SharpIR composite image enhancement technology, it can provide you with detailed infrared thermal imaging and dual-light fusion images to help you find potential faults more quickly.
Product Features

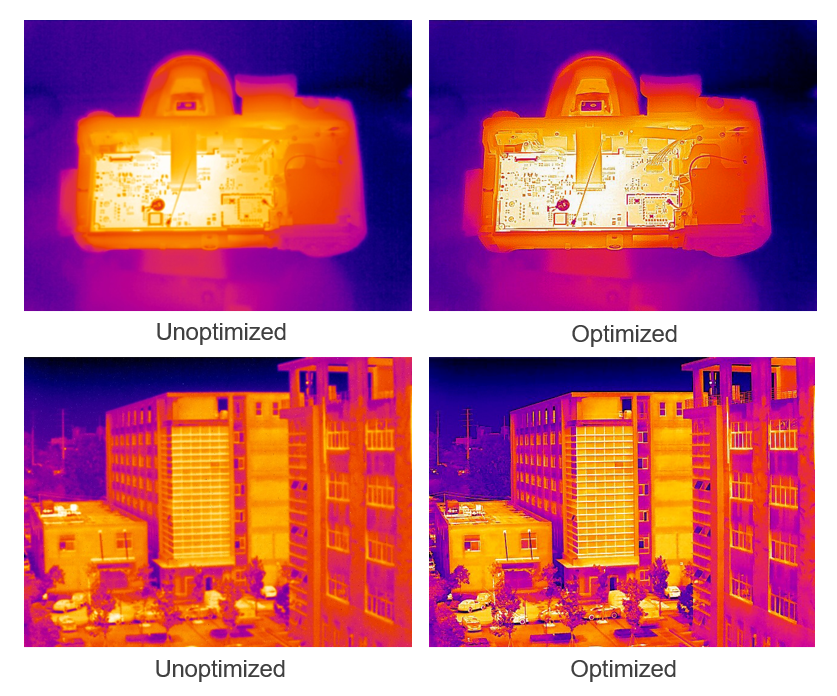

Excellent imaging quality
sharpening,contrast enhancement, and lossless magnification on low-resolution images to enhance the clarity of infrared images.
Large capacity battery
High power quick charge
Product Paramenters
|
Model
|
PC210
|
|
Detector type
|
256×192@12μm, VOx
|
|
Focal Length
|
3.2mm
|
|
Field of view(FOV)
|
56°×48°
|
|
Focus
|
Focus-free
|
|
Visible Camera Resolution
|
200W pixel, Resolution optional (240×320/1600×1200)
|
|
Flashlight
|
Yes
|
|
Display
|
2.4" LCD screen，240×320
|
|
Image Model
|

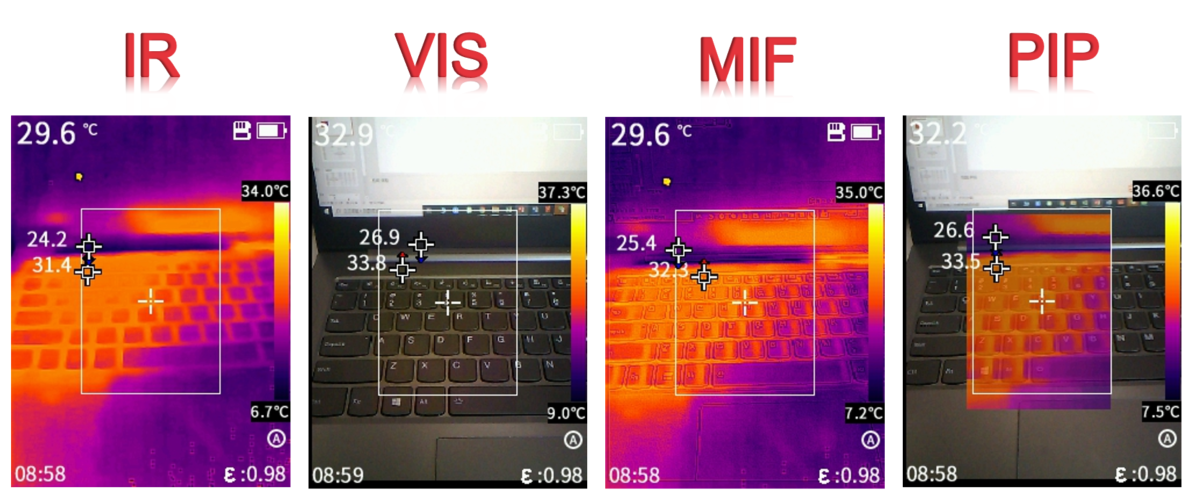

IR, Visible, Picture-in-Picture, MIF
|
|
Temperature Range
|

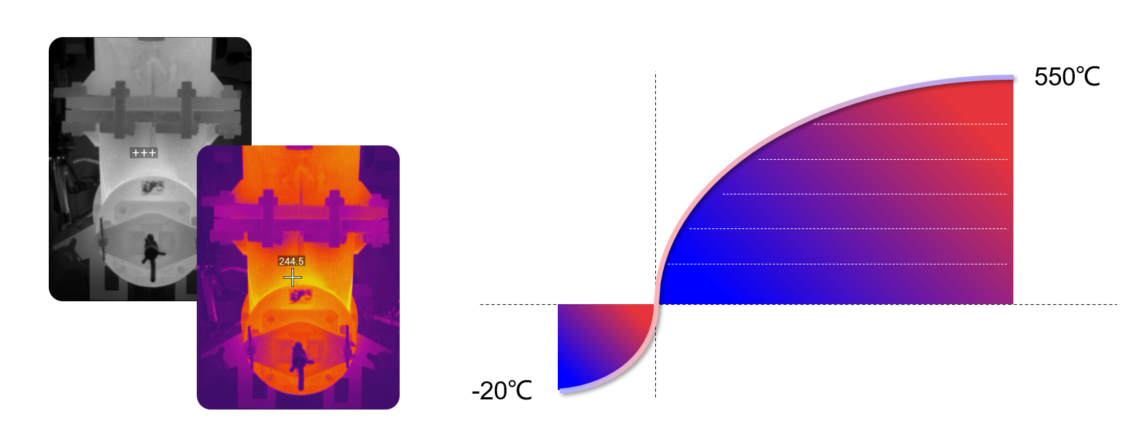

-20°C-150°C， 100°C-550°C（Auto switching）
|
|
Measurement Analysis
|
Center spot
|
|
Measurement Area
|
3(incl. max & min temp)
|
|
Auto Hot & Cold Spot Tracking
|
Yes
|
|
Alarm
|
Full Screen Max & Min Spot Alarm,Support Image and flash light Alarm
|
|
Image Storage
|
|
|
Storage Media
|
TF card（Standard 16G, up to 32G)
|
|
Image Format
|
IR/MIF/PIP imaging mode: jpg format with temperature data (256*192) ; Visible light imaging mode: jpg format without temperature
data (240*320) |
|
Connections & Communications
|
|
|

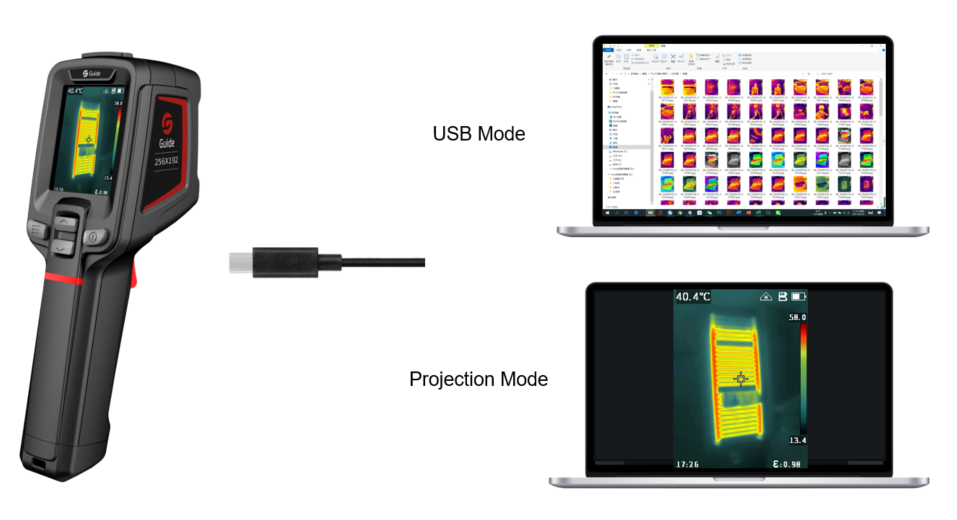

USB
|
TYPE-C、TF Card slot
|
|
Laser
|
Yes
|
|
Tripod interface
|
Yes
|
|
PC IR Analysis Software
|
Yes
|
|
Power System
|
|
|
Battery Tpye
|
Rechargeable Li ion battery
|
|
Battery Operating Time
|
16 hours
|
|
Charging Time
|
Internal charge，≤2.5 hours
|
|
Environmental Parameters
|
|
|
Operating Temperature
|
-15°C~50°C
|
|
Storage Temperature
|
-40°C~70°C
|
|
Encapsulation
|
IP54，2-meter drop test
|
|
Certification
|
CE/ROHS/FCC/PSC/KC/UN38.3/IP54
|
|
Weight
|
about 375g
|
|
Size
|
194mm×61.5mm×76mm
|
|
Standard Accessories
|
Charger + Adapter, TYPE-C USB cable, Wrist Strap, Quick start Guide, Data Download Card, 16G TF Card
|
